Nikon D90 Flash Hinge Spring Replacement

Geschrieben von: Matthew Grota
  • Kommentare: 1
Nikon D90 Flash Hinge Spring Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

The spring of the camera flash can sometimes wear out and needs to be replaced. This guide shows how to replace the spring within the hinge of the camera flash. Be careful not to strip any screws when disassembling the camera.

  1. koZBElMjh2rHOkqK
    koZBElMjh2rHOkqK
    ZdAMSKAKnOybqISY
    PFxW2wrcWIUn5mvW

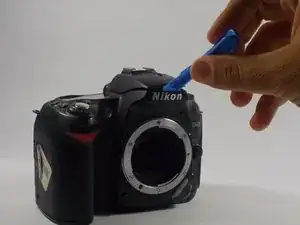

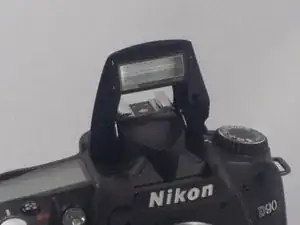

    • Use a plastic opening tool to lift up the flash.

  2. YWiYJDOXBvXBEirE
    YWiYJDOXBvXBEirE
    2qfSQJuWohkwATmm

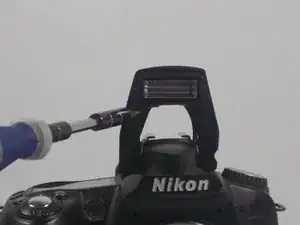

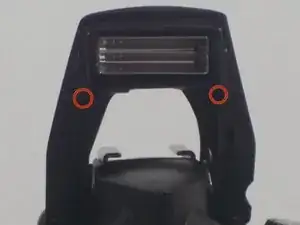

    • Using a PH00 screwdriver, remove the two 5.3 mm Phillips screws from the flash casing.

    • Be careful not to strip the screw heads.

  3. ulBmOxtMRT3GGA62
    ulBmOxtMRT3GGA62
    qFF5CkVmvtdcquuu
    jjRHcEUByMTK66OK

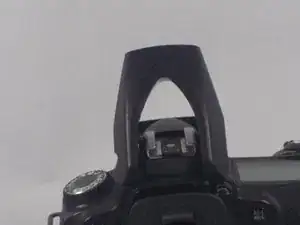

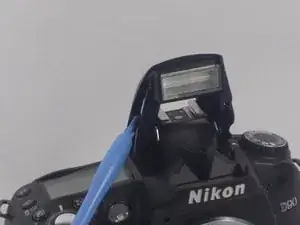

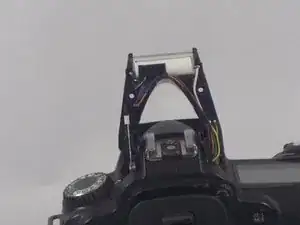

    • Use a plastic opening tool and carefully pry open the top casing of the flash.

    • Then, lift off the top casing of the flash.

  4. mocGoTOfKPAI1I1p
    mocGoTOfKPAI1I1p
    XLKkO1fKR6aeTAo2

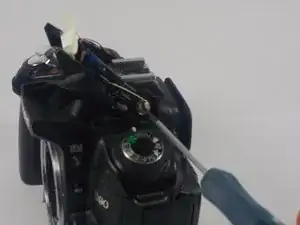

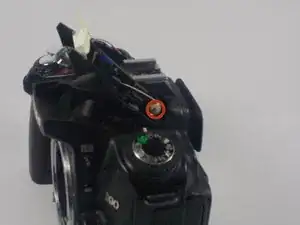

    • Using a PH00 screwdriver, loosen the 3.3 mm Phillips screw from the spring.

  5. 1aNplwtQ15qoh2GW
    1aNplwtQ15qoh2GW
    FOXQUwJgKWsqrLQR

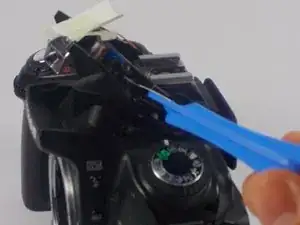

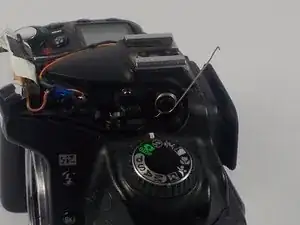

    • Use a plastic opening tool and carefully pry up the spring arm.

    • Doing this with release the pressure of the spring.

  6. rhfUBS3ASlOPBaCp
    rhfUBS3ASlOPBaCp
    LoMYA6SIKYY6eNeb

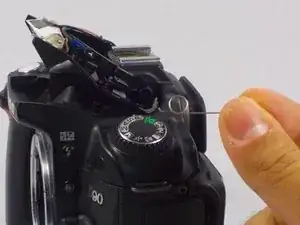

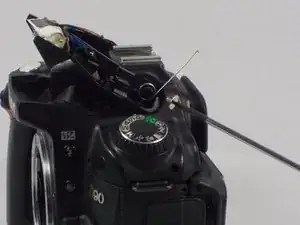

    • Finish removing the screw holding the spring in place.

    • The spring can now be removed and replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
