Nikon L310 Camera LCD Broken Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

How to disassemble the back cover and replace a broken LCD. The outer window has been replaced and manufactured by me with plastic.

  1. C1rxIIPDr5SxPCM2
    C1rxIIPDr5SxPCM2
    AvRREuc3cJiZtAOQ

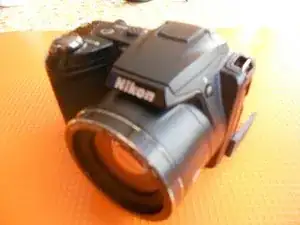

    • Here we have the Nikon L310 with the LCD and outer window broken. First of all, I start to remove the screws, but be careful, because they have different lenght.

  2. SZDP1kNWIN6OpQU4
    SZDP1kNWIN6OpQU4
    M26cWUUV6FxAIDLi
    aoTiNnsbEmXEmUpG

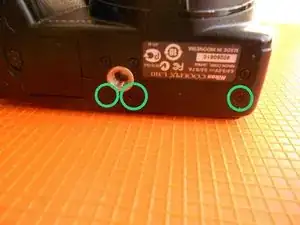

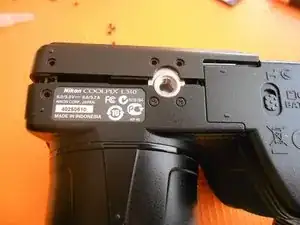

    • First, we will remove the screws from the bottom side. These only 3. Remember the sizes!

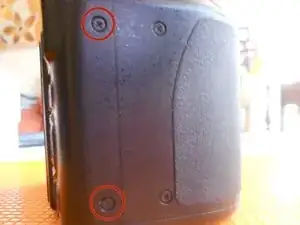

    • Then, the 2 screws of the Right side

    • And finally, the screw above the USB port, on the Left side.

  3. kUoqEZPRfgXUNIIw
    kUoqEZPRfgXUNIIw
    2WNRebQQm46YcJVc

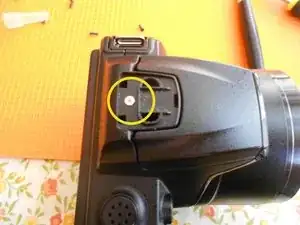

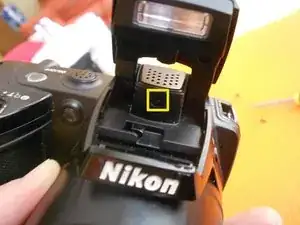

    • Now, its time to open the flash, and remove the screw that is allocated inside.

    • Remove the protector, and you will find a silver screw. Remove it.

  4. APcr3IZRZYKNXX1y
    APcr3IZRZYKNXX1y
    KYXl1HSEPoaAKwRv
    CEfLs2Ce3UqEGHAt

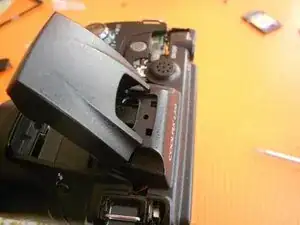

    • Now, you can separate the rear plastic frame, carefully.

    • As you can see, the entire plastic frame cames out.

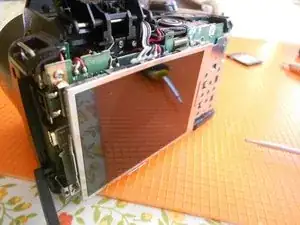

    • And here it is, the display!

  5. AxpMwZaLpdLyDG6b
    AxpMwZaLpdLyDG6b
    YSMLnHSPWdN6DEes
    6LKU3IQPGmhtQTHt

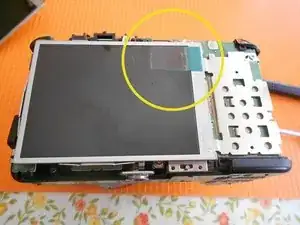

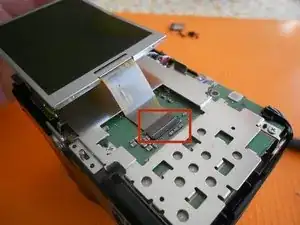

    • Lift carefully the LCD module, and you will see that is connected by a FPC connector.

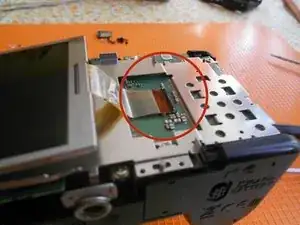

    • Release the tab, and unplug the flex cable.

    • Insert the new flex cable and install the LCD on its frame.

    • DONT forget to remove the protective film from the NEW LCD!!

  6. 6mLrpAjjrXQg6gBT

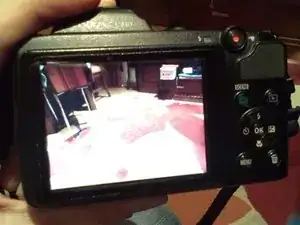

    • Re-assembly all the parts, and put back the screws. The reparation is DONE! Here you can see the display fixed and the outer window replaced by methacrylate part made by myself ( I have one Dremel... )

Abschluss

To reassemble your device, follow these instructions in reverse order.
