Nikon N2000 (F301) Communication Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

The communication board sends information about the aperture and focus of the lens. If you are having trouble with focus or aperture, then there may be a problem with the communication board.

  1. ZicZJiABlTiBiU4e

    • Use a 00 Phillips head screwdriver to remove the four screws from the lens mount.

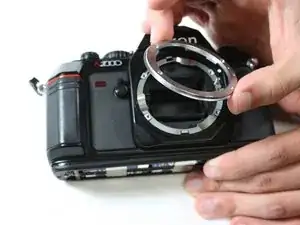

  2. MBhG6jiBWZuxGia2

    • Remove lens mount from the camera.

    • Be careful not to lose any of the three loose pieces that are under the lens mount.

  3. pEej6PYCa5TmP4VQ

    • Remove the three loose parts (spring, small rod, and metal ring) that were under the lens mount and put them aside.

    • Make sure you remember the orientation of the metal ring so that it is easier to put back in the device later.

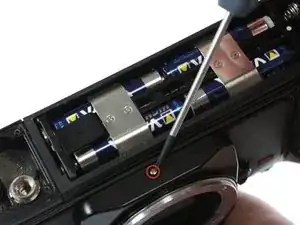

  4. GdKrkdnj4X6HdQiI

    • Use 00 Phillips head screwdriver to remove the screw from the bottom of the front black case.

  5. IEVmBlWMYXtFZqZ2
    IEVmBlWMYXtFZqZ2

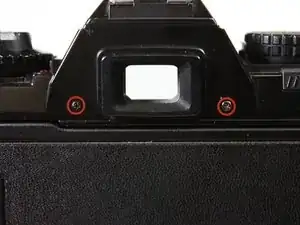

    LGw6PFmjZqqgc6mO
    5JmoBTTw2Ib66nhS

    • Use 00 Phillips head screwdriver to remove the screws from the top case (6 in all).

  6. keEAuSL2ONBT4vkV

    • Remove the front case from the camera.

    • There is a black plastic ring in the case. Be sure not to remove it, as it can be difficult to put back.

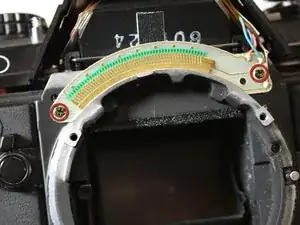

  7. MM2fc3d5sS1l1lVP

    • Use a 00 Phillips head screwdriver to remove the screws from either side of the communication board.

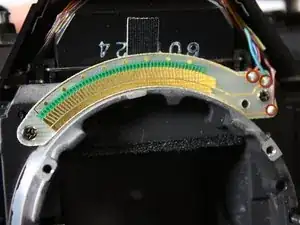

  8. ZK1iAWIxfjEmnxru

    • Desolder the wires and remove them from the communication board.

    • Note: If you are unfamiliar with soldering techniques, click here for a guide.

Abschluss

To reassemble your device, follow these instructions in reverse order.
