Nikon N80 Film Door Replacement

Geschrieben von: Maegan Viloria
  • Kommentare: 6
Nikon N80 Film Door Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

45 Minuten

Einleitung

Is your film door looking ratty and not working? Don't give up on your camera and try replacing your film door! This guide will explain how to replace the film door in a Nikon N80/F80 Camera.

  1. 2J3sJg5GpbshTMT3

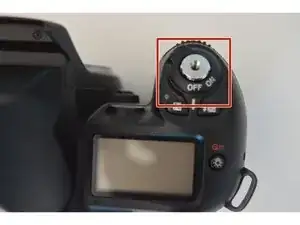

    • Make sure the On/Off switch is in the Off position.

  2. y1GTuSvUUVKNKSKK
    y1GTuSvUUVKNKSKK
    F5W1mCELyoxvG5r2
    cdFSMByHCSxRvABN

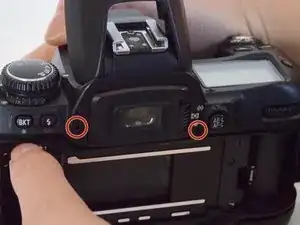

    • Remove the four 4.8mm screws on the top section of the camera using a PH00 Phillips screwdriver.

    • Two of the screws are located by the viewfinder and and the other two are on each side of the camera.

  3. WSdTOLEe2WAZ3pHk
    WSdTOLEe2WAZ3pHk
    f2gNqZJCqxeRlMgq

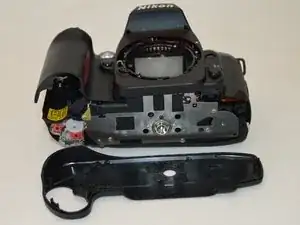

    • Rotate the camera so the bottom plate is accessible.

    • Remove the seven 4.8mm screws on the bottom plate of the camera using a PH00 Phillips screwdriver.

    • Remove the two 4.8mm screws on the bottom plate of the camera using a PH00 Phillips screwdriver.

    • Remove the bottom plate.

  4. xU3W1LkyolGnvIrw

    • Remove the five silver 4.8mm screws on the lens mount using a PH00 Phillips screwdriver.

    • Extract the lens mount.

  5. ZkJGsFIduqt3ykSV
    ZkJGsFIduqt3ykSV
    pC1mOba6lpeThpeg
    QYbb6ikeLX5Nq4ps

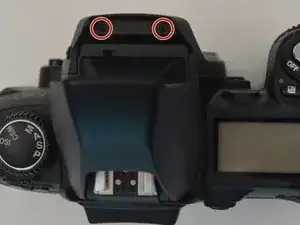

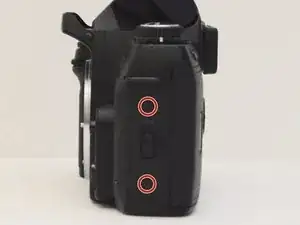

    • Remove the seven 4.8mm screws on front camera plate using a PH00 Phillips screwdriver.

    • One of the screws is located on the battery chamber side of the camera, two are next to the film door release lever, two are located below the "Nikon" logo, and the last two are located above the "Nikon" logo in the Speedlight compartment.

  6. eMAcXHQHDGMtKHEX

    • Remove the two 4.8mm screws in the battery compartment of the camera using a PH00 Phillips screwdriver.

    • Separate the three front camera plates from the camera.

  7. Oe21g1Nap6LaWTBv

    • Gently disconnect the top section of the camera from the body.

    • Don't pull the top section off too hard or the wire and ribbon within the camera may disconnect.

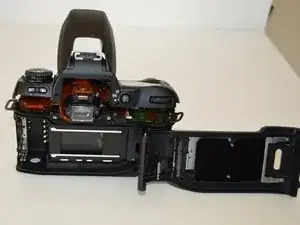

  8. Oy5WneZR5SVVSxDA

    • Turn the camera over to reveal the film door.

    • Remove the film door.

    The back door can be replaced without dismantling the camera. First remove the ribbon cable cover on the back door, note the light seal foam will have to be gently lifted. Once the ribbon cover has been removed unplug the ribbon cable by releasing the ribbon cable lock, there is a directiol arrow moulded into the lock bar. (on my camera the lock was a brown colour) Then remove the long hing screw from the base of the camera. That's all that is required to remove the back door, take care not to lose the top hing pin.

    Iain Vass -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Maegan Viloria

Mitglied seit: 14/09/15

717 Reputation

5 Kommentare

To replace the camera door, simply unscrew one screw under the door and three screws in the door to disconnect the cable that connects the camera to the door.

tadeuszse -

Hi where can buy a replacement door please?

jenrossiter -

Uscamera.com carries them.

D S -

It's unnecessary to disassemble the camera to this extent. You just need to disconnect the ribbon cable (which involves removing the spring loaded guide next to the door hinge and unlatch the connector underneath) and unscrew the door pivot screw on the underside of the camera. This document lays it out quite nicely:

https://www.jeremymuddphoto.com/blog/202...

Bruce H McIntosh -
