Nikon N80 Gear Belt for Film Winding Replacement

Geschrieben von: Maegan Viloria
  • Kommentare: 0
Nikon N80 Gear Belt for Film Winding Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

Is the gear belt for film winding in your camera broken or has a tear? Try your hand at replacing it to make your camera work again. This guide will explain how to replace the gear belt in a Nikon N80/F80 Camera.

  1. ApPU2VByxSEqKwlg

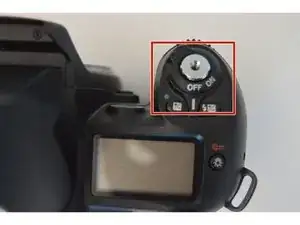

    • Make sure the On/Off switch is in the Off position.

  2. QuLJ15kRamocQxZm
    QuLJ15kRamocQxZm
    sR6exSS4JifXOFyl

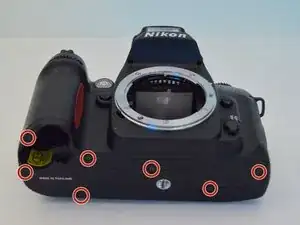

    • Rotate the camera so the bottom plate is accessible.

    • Remove the seven 4.8mm screws on the bottom plate of the camera using a PH00 Phillips screwdriver.

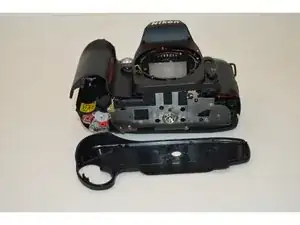

    • Remove the bottom plate.

  3. iNQUFjacOYEUs3H6
    iNQUFjacOYEUs3H6
    cZBBJsonN3K3WZcN

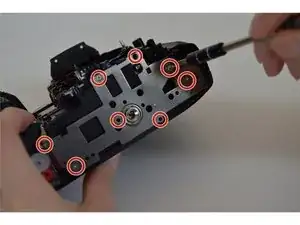

    • Remove the eight 4.8mm screws holding on the metal plate.

    • Remove the metal plate.

  4. Y15MFSTJaJGQtEAw
    Y15MFSTJaJGQtEAw
    Q3QbaU1jORJtjyBM

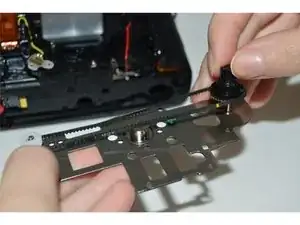

    • Gently remove the black, rubber gear belt.

    • Discard the old belt responsibly.

    • Place new belt on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
