Nikon N80 Lens Mount (aka Bayonet Mount) Replacement

Geschrieben von: Maegan Viloria
  • Kommentare: 0
Nikon N80 Lens Mount (aka Bayonet Mount) Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Is the lens mount in your camera damaged or broken? It might be time to replace it with a new one! This guide will explain how to replace the lens mount (also known as bayonet mount) in a Nikon N80/F80 Camera.

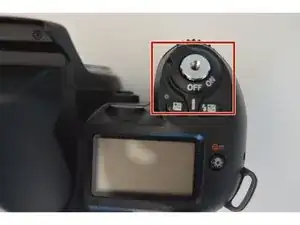

  1. HxGr2VYbJ51RJNdr

    • Make sure the On/Off switch is in the Off position.

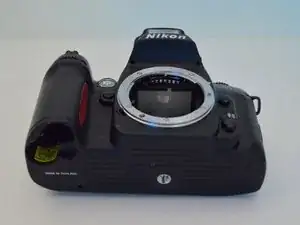

  2. qoyMJvdSriuNFFIZ

    • Place the camera so the lens is facing up.

    • If your camera has a lens on, remove it by pushing and holding the lens release button and turning the lens clockwise until it comes off.

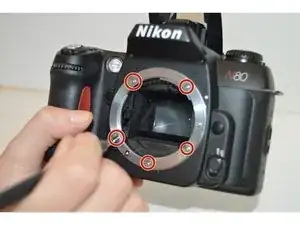

  3. 4JMQkOGjbMtZVEGI

    • Use a PH00 Phillips screwdriver to remove the five 4.8mm screws on the silver lens mount.

  4. 5NVZSagnwSaHuvBl

    • Remove the old lens mount and place the new one on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
