Ninja Coffee Bar CF080 Brewer Head Replacement

Geschrieben von: Elizabeth Nguyen
  • Kommentare: 0
Ninja Coffee Bar CF080 Brewer Head Replacement

Schwierigkeitsgrad

Very easy

Schritte

11

Zeitaufwand

5 Minuten

Einleitung

This guide will show how to remove the brewer head from the coffee machine.

  1. EUZ4rhMBJyPwS5MA

    • Face the coffee machine in front of you.

    • Make sure that the coffee machine is unplugged.

    • Remove the glass carafe as it will not be needed.

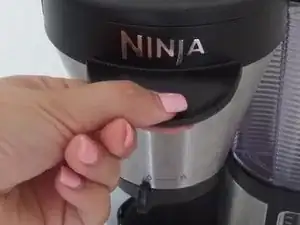

  2. oWvi2kFoS2POXVxE

    • Firmly grab the tab sticking out from the head of the brewer.

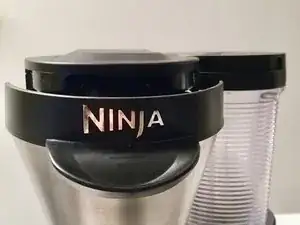

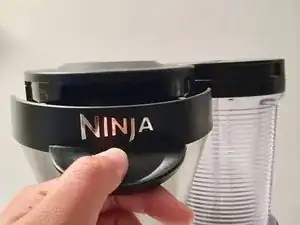

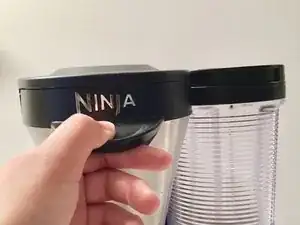

  3. P2ucNvkyeAeUG2KT
    P2ucNvkyeAeUG2KT
    wCEbmVODWKIQb1Mt
    2NmmlrQ6gLtacxTk

    • With little force, pull the tab of the brewer head in reverse direction.

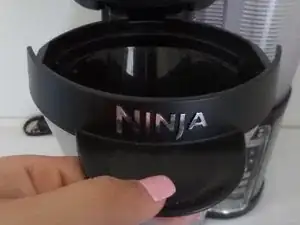

  4. M23panFDMDQTSYH2

    • Slide off the head in the direction away from the machine.

    • If the head does not come off smoothly by sliding, give a firm tug in the same direction.

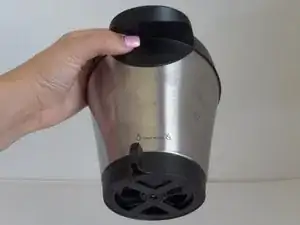

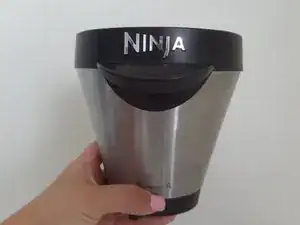

  5. 4RWaaIg5yWIdUXHD
    4RWaaIg5yWIdUXHD
    t3ZsuIufXKdHBHtx
    NclVpeDxAAytOAO6

    • Hold the head in the same position and lift it forward until the Ninja is facing upward toward the ceiling.

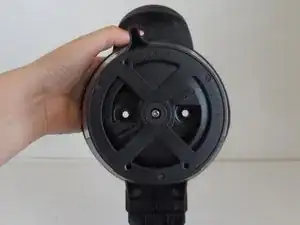

  6. cRixdyd5tQKSAAVG

    • Now the brewer head is positioned to where you can seeing the bottom.

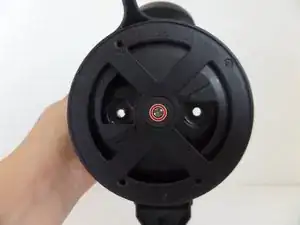

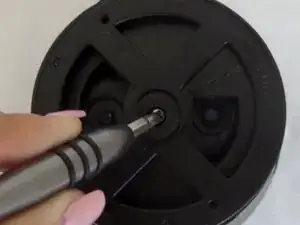

  7. 2EPNZm6eGURE4XFa
    2EPNZm6eGURE4XFa
    PhBhtLVIZHPHtnCI

    • Remove the screw with a Phillips #1 screwdriver.

    • Use Phillips #1 screwdriver.

    • Along will come a small black screw cover and spring

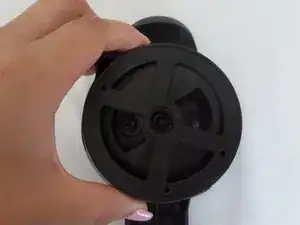

  8. ZZQptQgVUSWlgavE

    • Twist the black lid on top clockwise until it is completely detached.

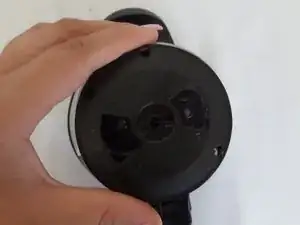

  9. nJWNW6MwpsdUlGGM

    • With the black upper lid detached, a smaller black cover can be removed without effort.

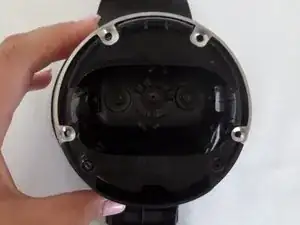

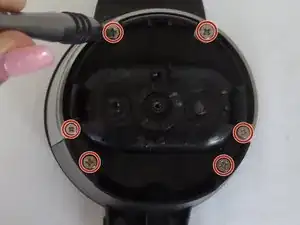

  10. U35ytnwqnSGHCEAN
    U35ytnwqnSGHCEAN
    RmW4EaHxavdRHpPU

    • Remove the 6 screws from the seal with a Phillips #1 screwdriver.

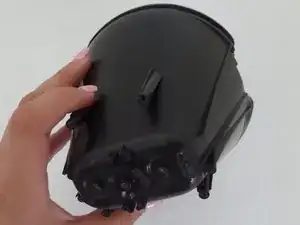

  11. HJtuffUbKGrMTP5D

    • Once all screws are detached from the brewer head, it will be separated into two pieces leaving the filter.

Abschluss

To reassemble your device, follow these instructions in reverse order.
