Ninja Coffee Bar CF080 Control Panel Replacement

Geschrieben von: Jan Chen
  • Kommentare: 1
Ninja Coffee Bar CF080 Control Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

17

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show how to remove the control panel from the coffee machine.

  1. RqDtNcfJcLSow6pX

    • Face the machine bottom towards you.

  2. vfirEvmoalmYhTqD
    vfirEvmoalmYhTqD
    PkMETDqeVklJKqFk

    • Unscrew six 0.6cm screws by holding the bottom board with Torx #10 screwdriver to remove the board.

    • Unscrew one 0.6 cm screw with PH1 screwdriver to remove the board.

  3. tAxCTcFnETxAPXXR
    tAxCTcFnETxAPXXR
    G4HLYlXm2BZC2V43
    EUL2NcVTLJyeUFKW

    • With moderate force remove and place the "plastic opening tool" between the divide in order to remove the bottom board.

  4. BgHj4vsiGaS5D6Dd
    BgHj4vsiGaS5D6Dd
    ruvyZrSuBnHDgLGx
    FrSYjbEvTVQIUoeE

    • Remove the bottom board with moderate force.

  5. WjSnXhGtYaYvSboA

    • Unscrew eight 0.6cm sized screws with Phillips #1 screwdriver, holding the silver secures on the sides of the heated plate.

    • Four screws on each side, two silver secures to remove the securers, located on the sliver bar holding the heated plate (one on each end).

  6. FBWqEMN1FwrygoLx

    • Unscrew two 0.6cm sized screws Phillips #1 screwdriver.

    • The silver bar will fall off once screws are removed.

  7. PkM5JSJlMbSR1e6R
    PkM5JSJlMbSR1e6R
    vaFjLfNPNe5OVedK

    • Remove the heated plate from the machine with easy glide.

  8. YHDJMSKDFWb4EXwQ
    YHDJMSKDFWb4EXwQ
    DTvOxXoSwGXIWLps
    cKMtiXoWHmOIrge6

    • Remove the nine 0.5cm screws with Phillips #2 screwdriver.

    • Some screws are harder to see due to how deep the holes are.

    • Recommend using Extender 4 with Phillips #2 screwdriver to help unscrew the screws within the deep holes of the machine.

  9. rJDrlgILWYUceYYf
    rJDrlgILWYUceYYf
    2sXUgGYTLWVVnE1U

    • Remove the two 0.6cm with Phillips #2 screwdriver.

  10. ydyfDkRsYDiAxkkM
    ydyfDkRsYDiAxkkM
    EYhdmD23hbUAWrFL
    dlFf5IJQeeR3GBTD

    • Detach various colored cords from one another, using both hands to place thumb and index finger to hold each grip then separate by pulling with the degree of force.

    • There with be 1 blue, 1 black, 1 red and 2 white.

  11. IREgvHcgY5EQIoXR
    IREgvHcgY5EQIoXR
    RCiPLMIbByix3pZQ

    • Remove the black board by maneuvering it through the cords.

  12. lCbUoE4XQUXQ1nql
    lCbUoE4XQUXQ1nql
    CXXITsIyrCDdOMdZ
    bMVeIgdNSjx1uONO

    • Grip the bottom end of the panel and pull it towards you to remove the module from the machine.

  13. CmDplX5bvD2yRD46
    CmDplX5bvD2yRD46
    pvuTLIQBDAxeLdMB

    • Remove the three 0.6cm screws with Phillips #1 screwdriver.

    • They are in the black holes, 1 at the top and two at the bottom.

  14. 2XDdUvxL2yjc2Uej

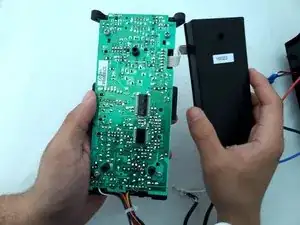

    • Remove the black board attached to the module.

  15. cGNGSiQong1LSLbx
    cGNGSiQong1LSLbx
    HdNWdYGXSYfrDn1M

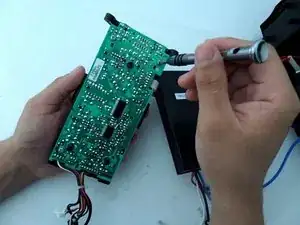

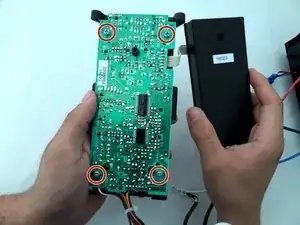

    • Unscrew four 1.2cm screws with Phillips #2 screwdriver.

  16. IOy4xrHY25nTToKZ
    IOy4xrHY25nTToKZ
    ReQ3oXTVc4FQHDQd

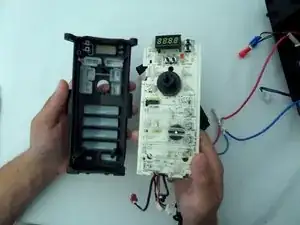

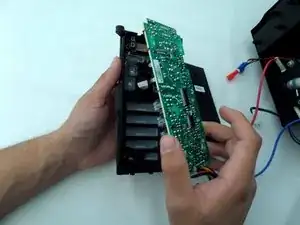

    • Carefully remove the control panel from the control module.

  17. VOBtSokuPOuT3JKX

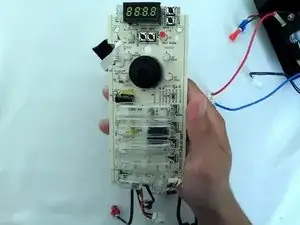

    • Left with the control module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
