Ninja Coffee Bar CF080 Water Pump Replacement

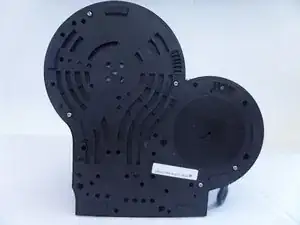

Face the machine bottom towards you.

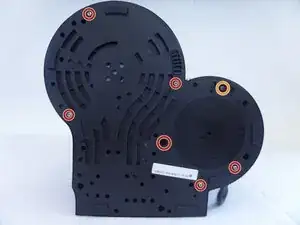

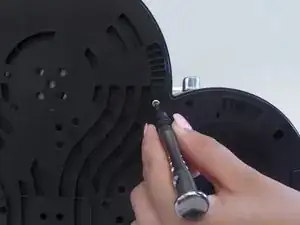

Unscrew six 0.6cm screws by holding the bottom board with Torx #10 screwdriver to remove the board.

Unscrew one 0.6 cm screw with PH1 screwdriver to remove the board.

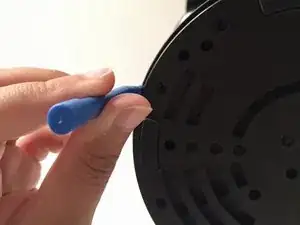

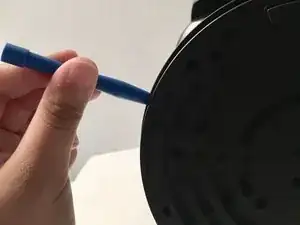

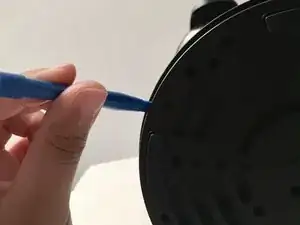

With moderate force remove and place the "plastic opening tool" between the divide in order to remove the bottom board.

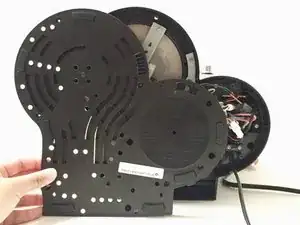

Remove the bottom board with moderate force.

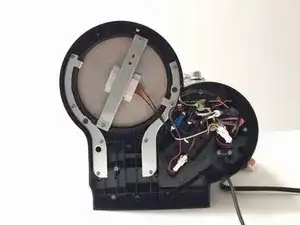

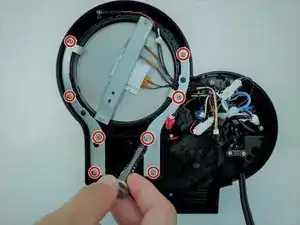

Unscrew eight 0.6cm sized screws with Phillips #1 screwdriver, holding the silver secures on the sides of the heated plate.

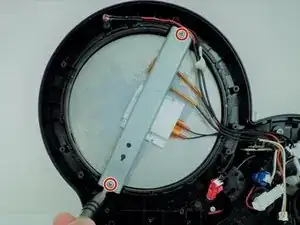

Unscrew two 0.6cm sized screws Phillips #1 screwdriver.

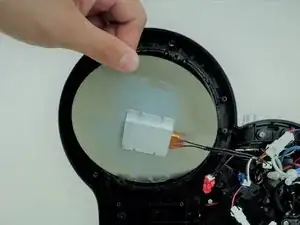

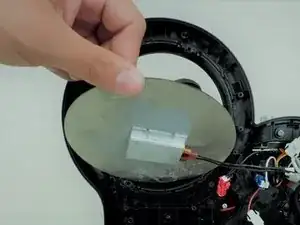

Remove the heated plate from the machine with easy glide.

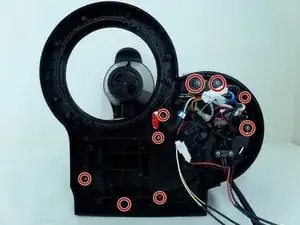

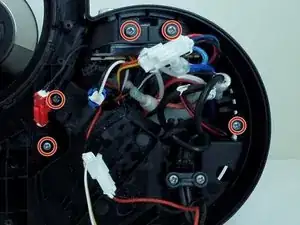

Remove the nine 0.5cm screws with Phillips #2 screwdriver.

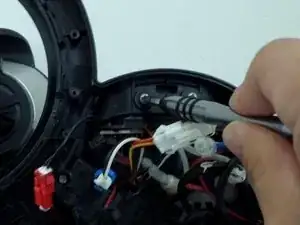

Remove the two 0.6cm with Phillips #2 screwdriver.

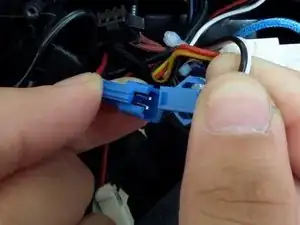

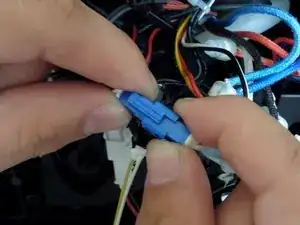

Detach various colored cords from one another, using both hands to place thumb and index finger to hold each grip then separate by pulling with the degree of force.

Remove the black board by maneuvering it through the cords.

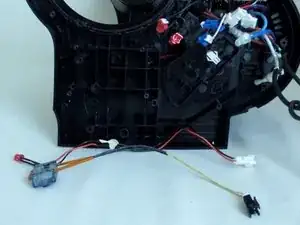

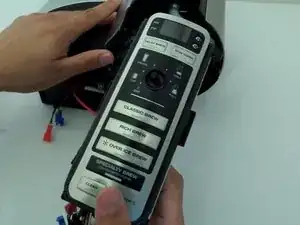

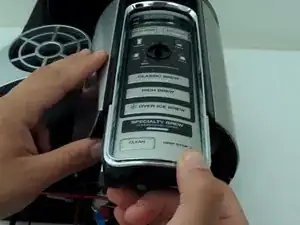

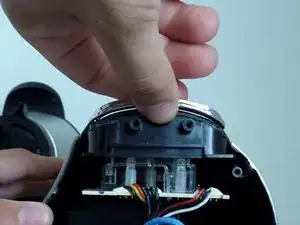

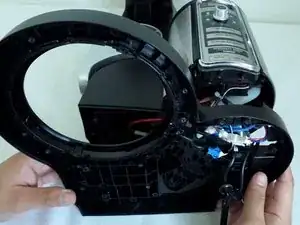

Grip the bottom end of the panel and pull it towards you to remove the module from the machine.

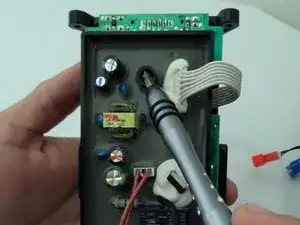

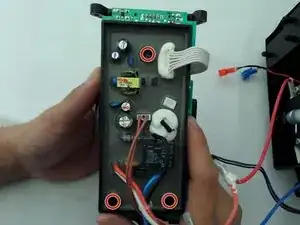

Remove the three 0.6cm screws with Phillips #1 screwdriver.

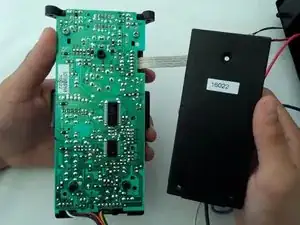

Remove the black board attached to the module.

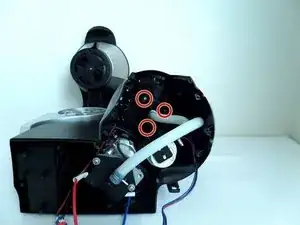

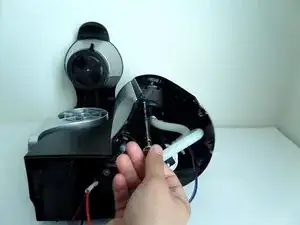

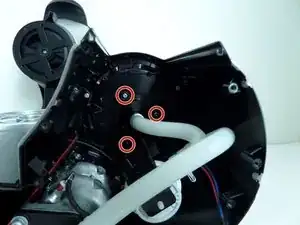

Remove the three 0.6 cm screws, using Phillips #1 screwdriver with Extender 4.

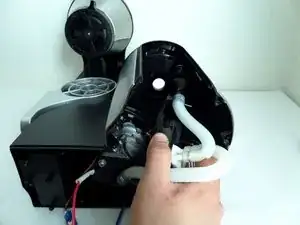

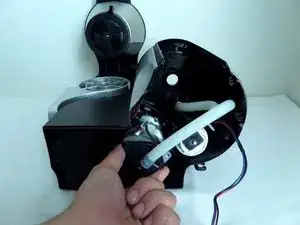

Pull the water tube towards you to detach the water's tube top from the machine.

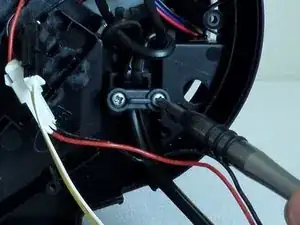

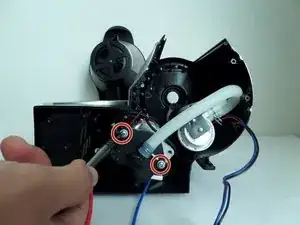

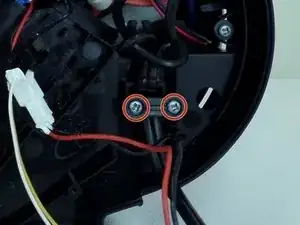

Remove the two 0.8 cm screws with Phillips #1 screwdriver.

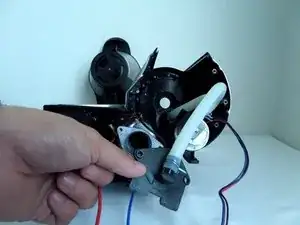

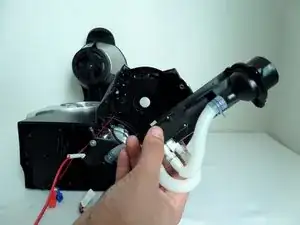

Grip on the diamond shaped black holder lid and pull it away to separate the tube from the machine.
