Einleitung

The water pump facilitates the motion of water from the reservoir to the drip area. This guide shows how to replace it.

  1. sgX3NtJlvy1CDZfV
    sgX3NtJlvy1CDZfV
    APuixWcfLFxDctN1

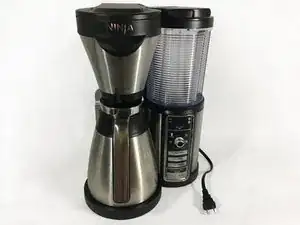

    • Make sure the Ninja Coffee Bar is unplugged and that you have a dry, clean workspace for this task.

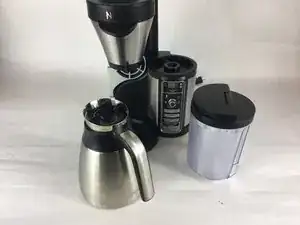

    • Remove the carafe and water reservoir and set them aside.

  2. vRLMTTaZ2nir4PgU

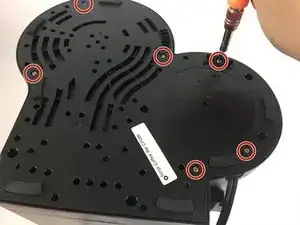

    • Unscrew the T-10 screws from the bottom cover of the machine, and remove that bottom cover.

    How many screws should be taken out before the bottom cover is removable? Some of them are set in much deeper holes (sorry I don’t know the technical terminology), and I’m not sure if the cover on mine is stuck because it’s sticky or because it’s still screwed in.

    Caitlin -

  3. wIb2sxujEkHIYGLm

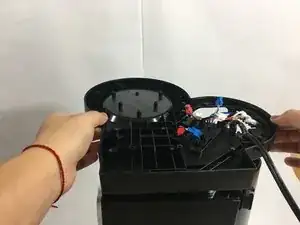

    • Unscrew and remove the heating plate layer. This will expose the internal workings of the machine.

  4. 4NyQsAHKiO2GpwBo

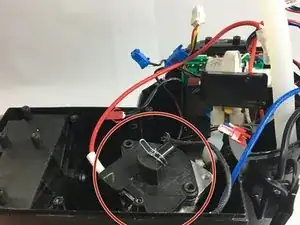

    • Locate the water heating element in the interior of your coffee maker.

  5. tGFLWInoeLMICP1L

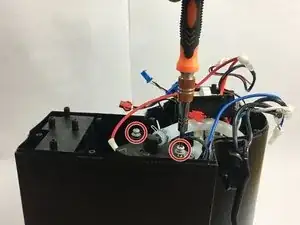

    • Unscrew the two indicated J1S1 screws at the base of the water heating element.

  6. 1SfFt2OdSrkKnUqo

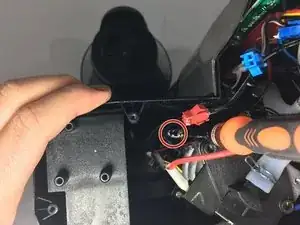

    • Unscrew and remove the remaining J1S1 screws that secure the water heating element to the interior of the device.

  7. wDXWoiX6NXpoxG2w
    wDXWoiX6NXpoxG2w
    uCfidqGP512EobpN
    XJC6SxG4suHFaQTA

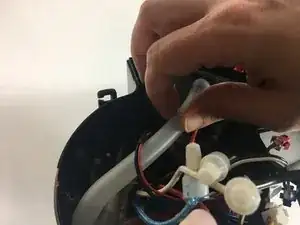

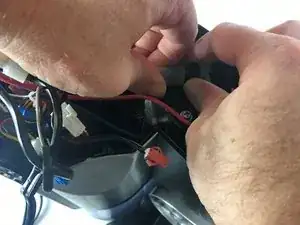

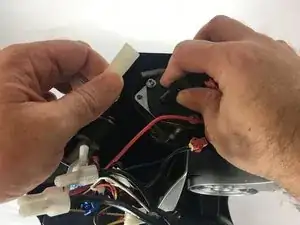

    • Grasp and remove the clamp securing the tube that feeds into the base of the water heating element.

    • Detach the tube from the water heating element.

  8. ACBqFptGEDkaKdWn
    ACBqFptGEDkaKdWn
    MbNjLBVVLFEC6YsQ

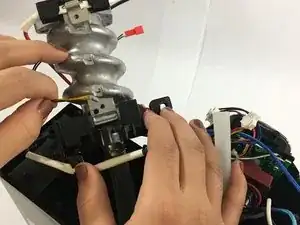

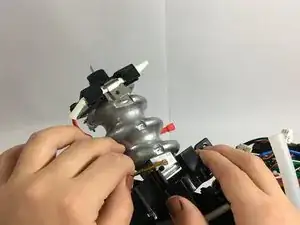

    • Locate the coated wire that feeds into the side of the water heating element. Remove this wire.

  9. WfOXGT2HTaxDyTJG
    WfOXGT2HTaxDyTJG
    2HUUFqK5AisMjuiI

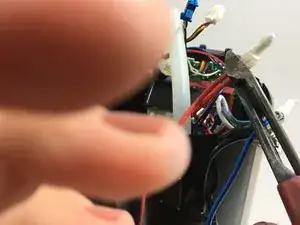

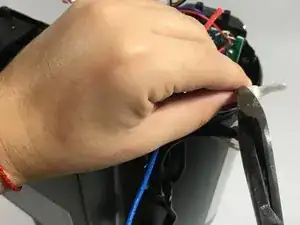

    • Locate the two wires leading out from the water heating element that feed into crimp connectors.

    • Using side cutters, sever these wires near the crimp connectors.

    • Use the side cutters to cut the remaining wires that feed into the crimp connectors from the coffee machine.

  10. yaKhescIJTBobXSY
    yaKhescIJTBobXSY
    c1fXZhl6cwqrcF5o

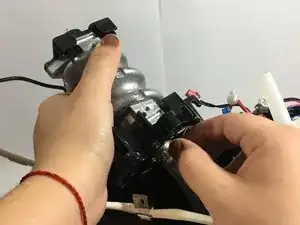

    • Squeeze and remove the clamp that secures the main tube feeding into the water heating element. Remove that tube.

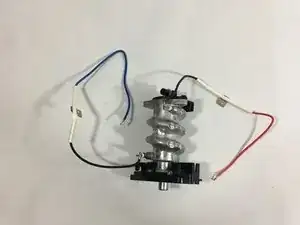

    • Remove the water heating element.

  11. isu2UlQmLkIDMQSl
    isu2UlQmLkIDMQSl
    CUDgkBGfgbSYmPZx
    ErXPZGX3HuDYuXBN

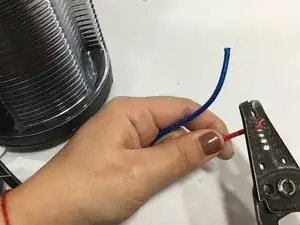

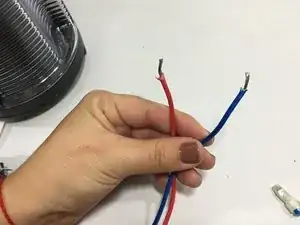

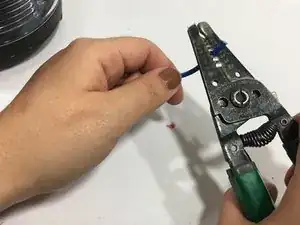

    • Using wire strippers, strip the cut wires from your coffee machine near their cut ends to expose 2 cm of metal conductor from each.

    • Use a similar procedure to strip the wires from your replacement heating element. Using wire strippers, expose 2 cm of metal conductor from the ends of the wires.

  12. k2VWGWinpsNEF1Ve

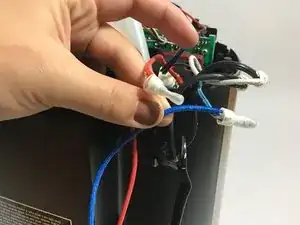

    • Prepare two crimp connectors by filling them with dielectric grease.

    • Use a crimp connector to connect a stripped end of the wire leading from the replacement heating element to the stripped end of the corresponding wire from the coffee maker.

    • Using a second crimp connector, repeat for the remaining pair of stripped wires.

    • Using the appropriate crimping tool, crimp the connectors.

  13. MAXjSvGrs1kBXFEx
    MAXjSvGrs1kBXFEx
    q2Urj3b1oYOI5Pqu
    D6tAnekMnOwrPTII

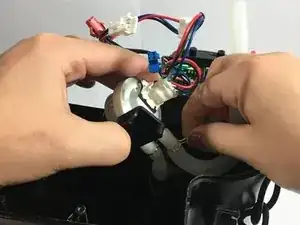

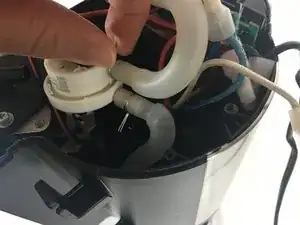

    • Locate the water pump in the interior of your device.

    • Squeeze and remove the clamps securing the tubes that are connected to the side of the water pump.

  14. FOOYFYEJbHJTwiZB
    FOOYFYEJbHJTwiZB
    dSsVNjqIH42LTags
    pjq4FP1qm1vRRpbg

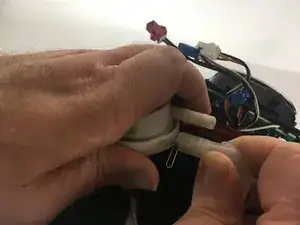

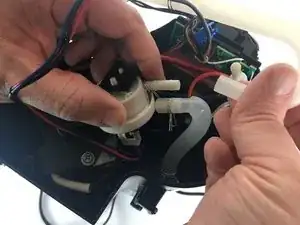

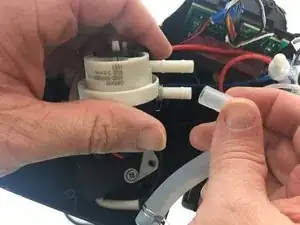

    • Remove the tubes attached to the side of the water pump.

    Where did you buy the replacement Water Pump Motor?

    timholdsworth -

  15. bVcgqiSU3QcIMX6g
    bVcgqiSU3QcIMX6g
    ndNmPByQrGgHADfj
    DbQuLJAiE1ZLZQCV

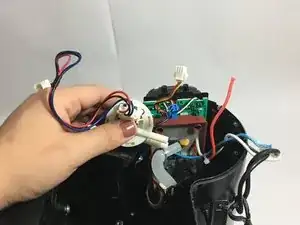

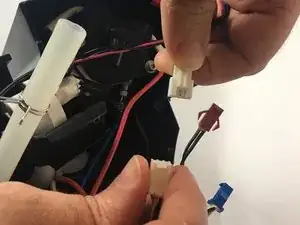

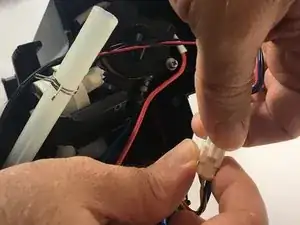

    • Trace the three wires leading out of the water pump until you find the connector linking them to the wires in your device.

    • Detach the connector and remove the water pump.

Abschluss

To reassemble your device, follow these instructions in reverse order.
