Einleitung
This guide will teach you how to replace the drip stop toggle and/or the brew basket of your Ninja Coffee Bar® Single-Serve System. In a lot of coffee machines after heavy use the brew based can start to leak, and these fixes are very similar, so that is why we did both of these fixes together. Warning: be very careful when unscrewing the brew basket because there is a small spring that releases the drip stop toggle that needs to stay in place. Also you will need a longer skinnier Phillips head screwdriver than the one in the iFixit tool kit to complete this repair.
Werkzeuge
-
-

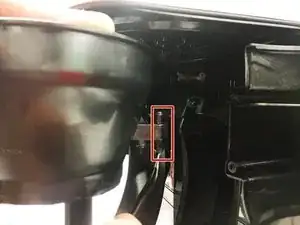

Using needle nose tweezers, push the bottom of the pin up from behind the brew basket
-

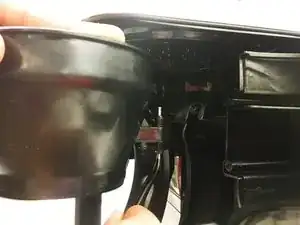

Pull the pin out.
-
-
-

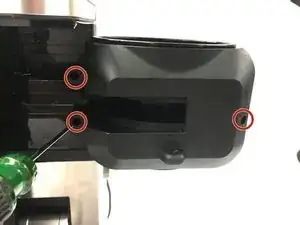

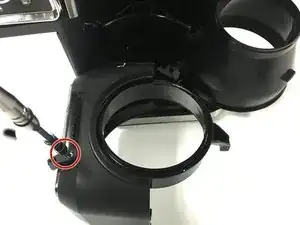

Use a Phillips screwdriver to remove one 6mm screw from the drip stop toggle.
-

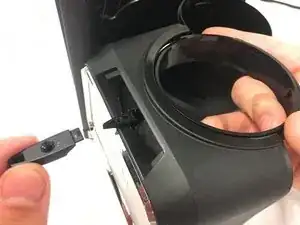

Remove the drip stop toggle.
-
To reassemble your device, follow these instructions in reverse order.
3 Kommentare
Can you provide more detail regarding the small spring that you provide the warning for? The one that needs to stay in place. If it does fall out, how can not be fixed or rather where does not go?
Dani -

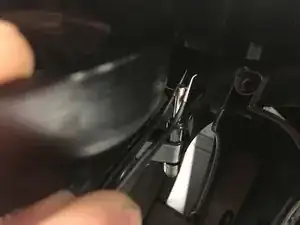

Agree! The spring NEEDS to be resting vertically in between the two clips, in my case, these have worn and the spring came out of seat. It needed to be refastened and the five beeps, “of death” have disappeared and my coffeepot functions again!
* this works on the ninja coffee bar larger system as well
