Einleitung

If your frother unit is no longer providing you with delicious, foamy drinks then it may be time to replace the frother unit on your device. Use this guide to replace your frother and reclaim the ability to brew up specialty drinks with your Ninja Single Serve Coffee System.

  1. jwAfwwVMVbKBuAkT
    jwAfwwVMVbKBuAkT
    HHPjp6uLXAXPbCjE

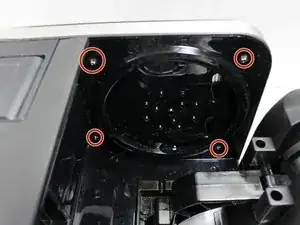

    • Remove four 6mm #1 Phillips head screws from under the basket area.

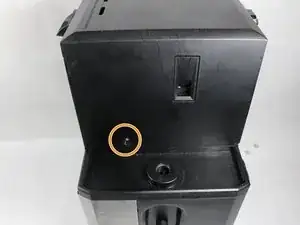

    • Remove the single 6mm #1 Phillips head screw from the side of the unit.

  2. eJGSaTMP6mgNiZvP
    eJGSaTMP6mgNiZvP
    qjHpQvdSVTx1Lusi

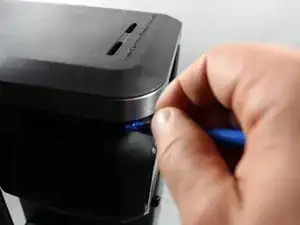

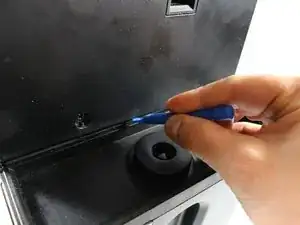

    • Gently pry the upper cover off the unit above the brew basket and above the water reservoir base and along the side of the upper cover.

  3. oPWJnpfTY5uBJJgL
    oPWJnpfTY5uBJJgL
    QAwnlfbRKUntINlO

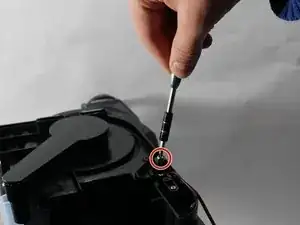

    • Remove the single 6mm #1 Phillips head screw from the top of the unit. (The two smaller screws should remain attached.)

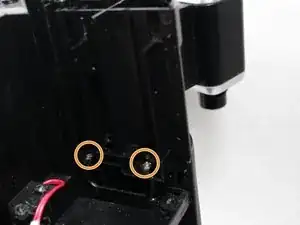

    • Using an extension, remove the two 6mm Phillips head screws from the side of the frother motor pivot.

  4. 3WW4fW2iQxFSvsNw
    3WW4fW2iQxFSvsNw
    fGHl5WA6TAKRmNtR
    spUf41KsrIPwseCH

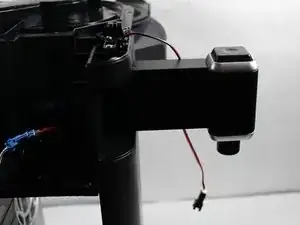

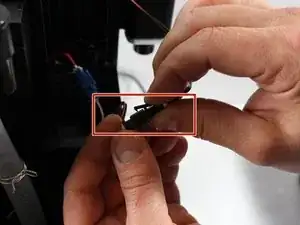

    • Pinch power connector and pull lighly to separate.

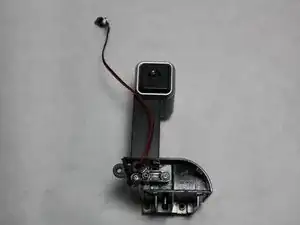

    • Pull motor straight up to separate from unit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
