Ninja Kitchen System Pulse Fan Replacement

Geschrieben von: Cameron Just
  • Kommentare: 1
Ninja Kitchen System Pulse Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

In this guide, we are removing the fan from the base of the Ninja.

  1. gXRjEPtCFOKUTVTX

    • Take out the three 15 mm Phillips #1 screws.

    • Remove the 15mm T10 screw.

    • Place the 4 screws on the magnetic mat.

  2. Mhwa2IgpN1lSw2PV

    • Remove the gray base by lifting upwards and placing to the side.

  3. APJffZjkfMRDIrnB

    • Remove the central 15 mm length screw, you must hold the fan in place and use a flat head screw driver, twisting counterclockwise.

    • Place this screw on the magnetic mat.

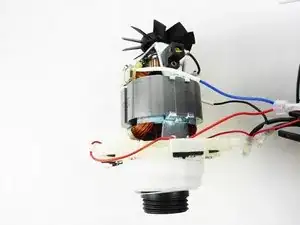

  4. aNitmYKuSaCg1rOU
    aNitmYKuSaCg1rOU

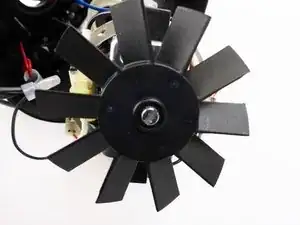

    I1jHyN54AJC4NGxk

    • Remove the fan from the motor by gently pulling upwards.

    • Be careful as to not damage any wires when removing the fan.

    • Set the fan to the side.

    Where can I purchase the fan?

    dr_ata2001 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
