Ninja Kitchen System Pulse Power Cord Replacement

Geschrieben von: Cameron Just
  • Kommentare: 0
Ninja Kitchen System Pulse Power Cord Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

5 - 8 Minuten

Einleitung

This guide will show how to replace the power cord.

  1. gXRjEPtCFOKUTVTX

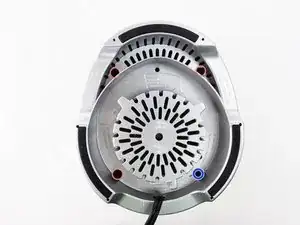

    • Take out the three 15 mm Phillips #1 screws.

    • Remove the 15mm T10 screw.

    • Place the 4 screws on the magnetic mat.

  2. Mhwa2IgpN1lSw2PV

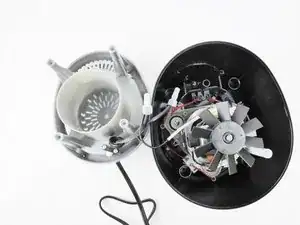

    • Remove the gray base by lifting upwards and placing to the side.

  3. 6CbcbQ3NCEGQxwmN

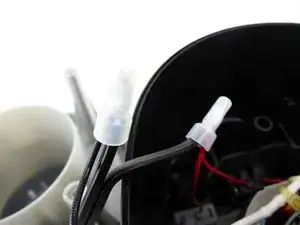

    • Remove plastic coverings and aluminum wrap to unattach the power cord.

Abschluss

To reassemble your device, follow these instructions in reverse order.
