In the event that your device overheats, the cooling fan may need to be replaced. This guide will show you step-by-step how to do so.
-
-
Remove the five screws (13mm long, 6mm head) attaching the Base Cover using a Phillips screwdriver (Ph2).
-
Remove the two screws (13 mm long, 6mm head) attaching the Base Cover using a T10 screwdriver.
-
-
-
Carefully remove the second layer from the base. You will not need a screwdriver for this step.
-
-
-
Remove the 2 screws (13mm, 6mm head) connected to the plastic piece holding down the power cord.
-
Then remove the additional 4 screws (13mm, 6mm head) and 2 screws (11mm, 5mm head) securing the base.
-
Carefully lift the base up from the rest of the blender.
-
-
-

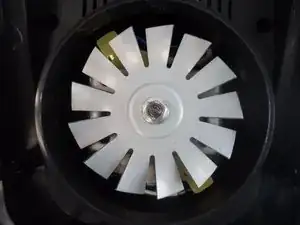

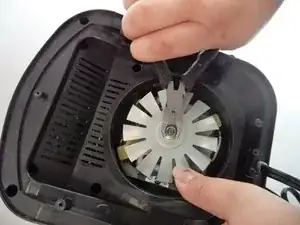

Using caution, hold the fan steady and use a wrench or pliers to remove the nut securing the fan.
-
Loosen the washer with a flathead screwdriver, then remove the fan and replace with a new one.
-
To reassemble your device, follow these instructions in reverse order.
