Ninja NJ600 Fan Replacement

Geschrieben von: Ryan Heller
  • Kommentare: 0
Ninja NJ600 Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will illustrate how to disassemble and replace the fan inside your blender.

  1. CkgALdXMxZKO6t16
    CkgALdXMxZKO6t16
    RXYIqnuAv3ysnbLw

    • Remove the five screws (13mm long, 6mm head diameter) using a Phillips #2 screwdriver.

  2. i3VyugdOWCTwdiLD
    i3VyugdOWCTwdiLD
    NiXuLFDTEgIWP1yu

    • Without removing any screws, you can pull the 2nd layer free from the base. Do this now and set it down gently next to the base.

    • The power cord runs through a hole in the side of this layer. Squeeze the cord and pull it through the hole to separate the layer from the cord.

  3. bCNZojGrXrOIJdxM
    bCNZojGrXrOIJdxM
    GxZ1iHolHDPcktSZ
    IAnLwLIPKxIFIYaO

    • Using the Phillips #2 screwdriver, remove these six screws (13mm long, 6mm head diameter). Then carefully remove this layer, and rest it next to the blender base.

    • Be careful not to damage the two wires that are keeping this third layer attached to the base.

  4. qSynlwUOoJeA5aDd

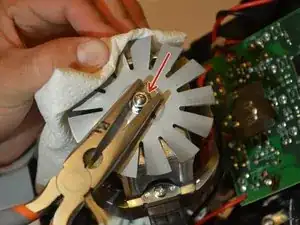

    • Hold the fan steady and use a wrench or pliers to remove the nut in the image.

    • The fan is sharp. Use caution when handling with bare hands.

    • A towel or gloves may be useful when holding the fan for this step.

  5. k5GATkkyXMRqVKGP

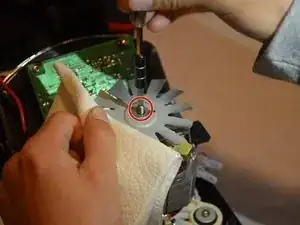

    • Hold the fan and use the flathead 4.0 screwdriver to loosen the washer.

    • The fan is sharp, use caution when handling with bare hands.

    • You may use a towel or gloves to avoid handling the fan with your bare hands.

  6. sFEpSYsDIDxoLVqV
    sFEpSYsDIDxoLVqV
    U3yGBawnEAd6nJEE

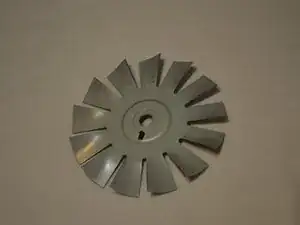

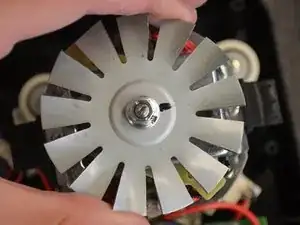

    • Slide the washer and fan off of the screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
