Einleitung
In this guide we will be removing the blender base and the component housing to get to the fan.
Werkzeuge
-
-

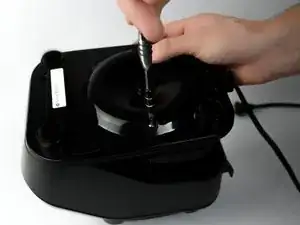

Remove six screws (12mm long, 6mm head diameter) from bottom of the blender using a Phillips #2 screwdriver
-
-
-
Remove six screws (12mm long, 6mm head diameter) from component housing using Phillips #2 screwdriver.
-
-
-

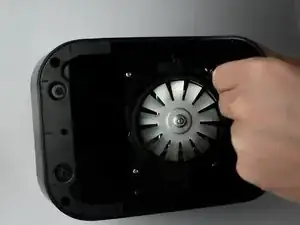

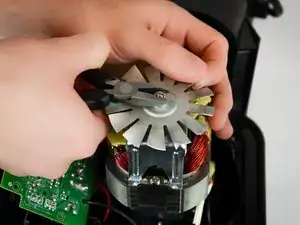

Using a needle nose pliers, remove nut holding fan in-place. Be careful with fan blades and use a glove or a thick cloth to protect hands.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
