Ninja Professional Blender BL660 Fan Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

35 - 40 Minuten

Einleitung

If your blender is too loud, your fan may be damaged or loose. This guide will show you how to replace a broken or damaged fan.

  1. 2LZXFeuu4osLrl6b
    2LZXFeuu4osLrl6b
    XDPE2OWLOmXJauGm

    • Using the Phillips #1 screwdriver, remove the 5 screws (13mm long, 6mm wide) holding the outer base.

    • Lift the base up to remove it.

  2. aGQDQvrsWMhIeSNg
    aGQDQvrsWMhIeSNg
    REqNPBJdFdM6RiZv

    • Remove the midsection by pulling it up. If the section is stuck, use the iFixit plastic opening tool to pry it off.

    • Pull the power cord through the mid-section opening.

  3. xQICY1FDreAURNjA
    xQICY1FDreAURNjA
    WhMl3gj1YiHVolHK

    • Using the Phillips #1 screwdriver, remove the 6 screws (13 mm long, 6 mm wide).

  4. H6BQXJJWlU4StNJN
    H6BQXJJWlU4StNJN
    MY2EGXnrD2t1DfMi

    • Using the Phillips #1 screwdriver, remove the two screws (5 mm long, 3 mm wide) holding the power cord onto the motor cover.

  5. AtcooGweA45AJfQa
    AtcooGweA45AJfQa
    2MyyHZ2bjM2AsJBo

    • Using the iFixit plastic opening tool, pry the motor cover off the general housing. Once it is loose, lift it up to remove it off the base.

    • Slide the cover all the way to the end of the power cord.

    • Please note that the power cord does not completely come off the cover.

  6. OaCw5GMeLJYWeMeZ

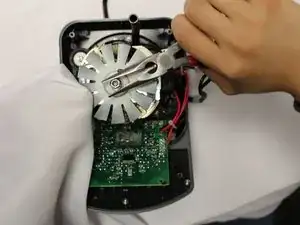

    • Use a wrench or a pair of pliers to help remove the nut on top of the fan. Holding the fan itself will help make the process easier.

    • The fan blades are sharp. Handle with care. Using a paper towel or cloth while handling is recommended.

  7. c2WNXsfdFvlcmRHc

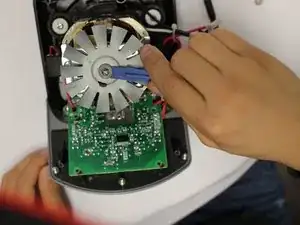

    • Use the plastic opening tool to loosen the washer.

  8. ZVGEfwY1G3sbklOK
    ZVGEfwY1G3sbklOK
    cYeeCKnXFJhUZVCx

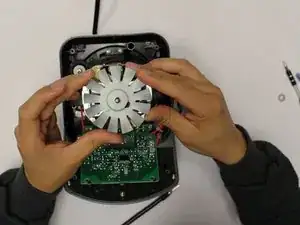

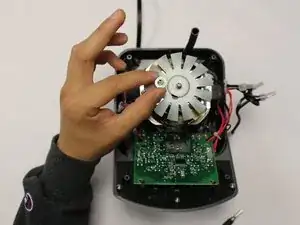

    • Remove washer then slide the fan off the screw.

    • Replace the fan as needed.

    • The fan has a keyed hole, thus it fits on the shaft in a specific way. Ensure you put it on correctly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
