Ninja Ultima BL810 Power Plug Replacement

Geschrieben von: Ryan James Gilroy
  • Kommentare: 0
Ninja Ultima BL810 Power Plug Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide will demonstrate how to disconnect the power plug.

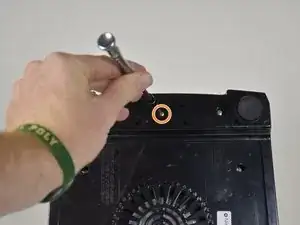

  1. EJCc5paOFjDRuwPs
    EJCc5paOFjDRuwPs
    b4jDw5tfjR1h3QIU
    HuR5bQqJgQvO5Jdf

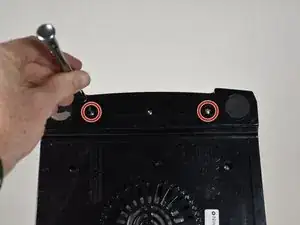

    • Unscrew the Phillips #0 11mm screws.

    • Unscrew the Torx Security #10 11mm screw.

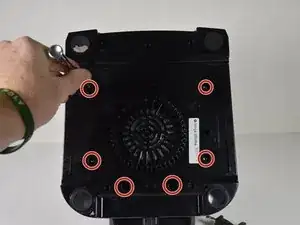

  2. rJpigGQYJr2EYg1D
    rJpigGQYJr2EYg1D
    AaOlgMSfdKnTreWC

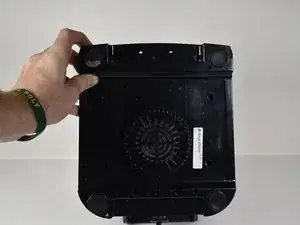

    • Unscrew the six Phillips #2 11mm screws from the remainder of the bottom plate.

    • Pull the bottom covering off of the blender.

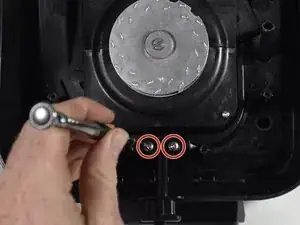

  3. aexHMY3UjvfVF4X5
    aexHMY3UjvfVF4X5
    QJvrtOsEnHvQVFam

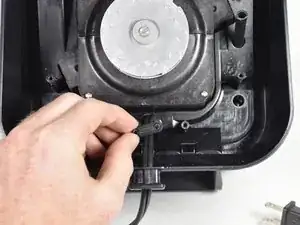

    • Unscrew the two Phillips #2 9mm screws.

    • Remove the plastic block.

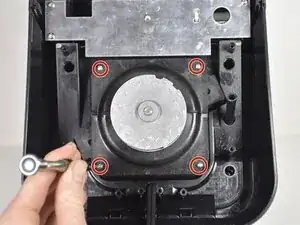

  4. KCMooOMkI5yW65Ua
    KCMooOMkI5yW65Ua
    q4TN3H53ZHkWHh4o

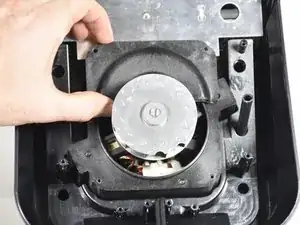

    Sf1clI1cQYoxslWE

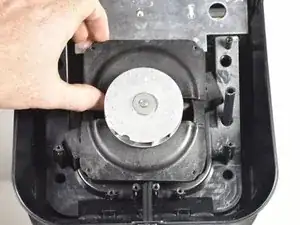

    • Unscrew the four Phillips #2 11mm screws.

    • Remove the plastic covers.

    • Removing the top cover and then rotating the bottom cover into the same orientation works best.

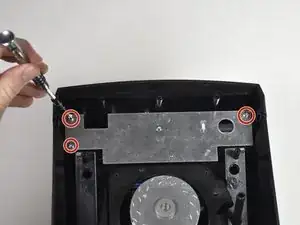

  5. G41E5PlluCGS1LV1

    • Unscrew the three Phillips #2 9mm screws.

    • This metal plate doesn't need to be completely removed, just adjusted to the side to continue working.

  6. dCaniGfHLgrfvjPH
    dCaniGfHLgrfvjPH
    RyPiumAmdalTK2Kb

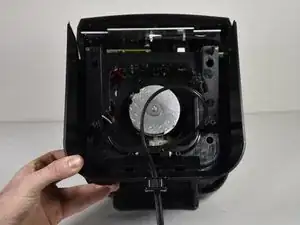

    ZvTL2Ek2VSsB2H3X

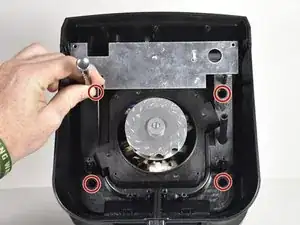

    • Unscrew the four Phillips #2 11mm screws.

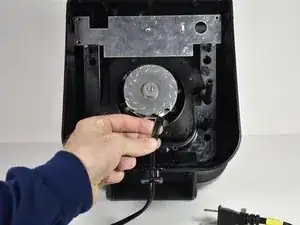

    • Pull the power cord through as shown to create slack.

    • Remove plastic casing by lifting upwards.

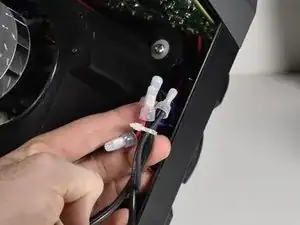

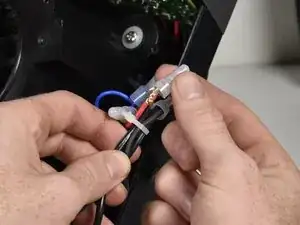

  7. UMkBdXYdKmcHXEDO
    UMkBdXYdKmcHXEDO
    SwoaoglXOuZAXOW4
    UdOOfDZAinPm6C3s

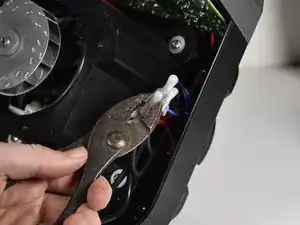

    • Follow the power plug cords to find the right plastic caps.

    • Squeeze the caps with pliers to loosen the grip.

    • Pull the plastic caps off the twisted wires.

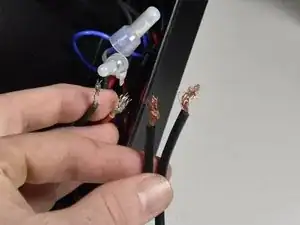

  8. AspHptPBLjZZMVRh
    AspHptPBLjZZMVRh

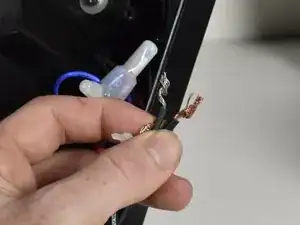

    wG2bNqfTcCGhhcfC
    UISB5coRU5C1D1lK

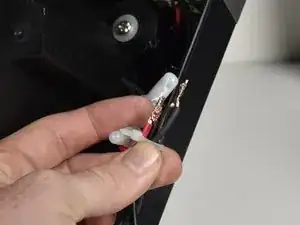

    • Untwist the two wires from each other and pull the zip tie off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
