Nintendo 2DS Bildschirm austauschen

Geschrieben von: Fina Beauchamp
  • Kommentare: 61
Nintendo 2DS Bildschirm austauschen

Schwierigkeitsgrad

Mittel

Schritte

11

Zeitaufwand

30 - 40 Minuten

Einleitung

Hier wird gezeigt, wie du den Bildschirm entfernen kannst, um ihn zu reinigen oder zu reparieren.

  1. wg4RTxdhgZNOVaab

    • Drehe die beiden unverlierbaren Kreuzschlitzschrauben am oberen Rückdeckel heraus.

    • Diese unverlierbaren Schrauben bleiben im Deckel hängen.

  2. cdb3AdyJTrNhIjrr
    cdb3AdyJTrNhIjrr
    okYxlIGDUBKBdGNP

    • Drehe den Deckel nach oben und nach außen um ihn zu entfernen.

  3. YA2mNvc2fLpeZ4NZ
    YA2mNvc2fLpeZ4NZ
    yjKMPFAO1SC1LncE
    HRaiAoWcVXEMByll

    • Entferne den Akku aus seinem Fach. Hebe ihn dazu an der Seite die direkt an der Außenkante liegt hoch.

  4. vkEjnCVvCfkcXpKn

    • Entferne die zehn Kreuzschlitzschrauben, mit denen die Rückabdeckung befestigt ist.

    Can't take off the screw top left next to the battery. What type of screwdriver do I use and where can I find some?

    Little Mac -

    I used a husky with changeable heads, you could probably find one on amazon

    Minecrafter Pig -

  5. ona5d6XElywnV2F6

    • Die Rückabdeckung ist mit einem Flachbandkabel an der Hauptplatine verbunden. Entferne sie deswegen nicht zu weit vom Gerät.

    • Ziehe die Rückabdeckung vorsichtig vom Gerät weg nach oben.

  6. nCtU5fTtc3gYBBVe

    • Drehe die Rückabdeckung vorsichtig um damit das Flachbandkabel sichtbar wird.

    • Entferne die beiden Kreuzschlitzschrauben, mit denen das Flachbandkabel an der Rückabdeckung befestigt ist.

    • Nutze die Gelegenheit um gleich die rechte und linke Auslösetaste zu entfernen. Sie haben eine Feder und eine Achse, achte darauf diese Teile nicht zu beschädigen oder zu verlieren.

    You can also detach the cable from the motherboard safely by flipping up the connector on the motherboard. Just don't forget to reattach. Some will find this tedious but may save time if you know what you're doing with said connectors.

    Blackbeard -

    I agree, this is what the guide i followed said to do and since I was disconnecting all the other ribbon cables it made perfect sense to do it that way.

    Lin -

    pay attention: my 2ds dropped it's lens covers at this step

    Jos van Reenen -

    Likewise, I used a tiny drop of glue to put the lens back in place. Take care not to dirty the lens.

    Elliot West -

    The picture you have there has the camera lens ribbon installed upside down. The ribbon needs to be pointing down when you re-attach it not up.

    Rick Parrish -

    Agreed, ribbon cable looks upside down in picture

    Elliot West -

  7. Qojp1OOvIUVTUr1u
    Qojp1OOvIUVTUr1u
    OuYdgcEvDLpnQV5M

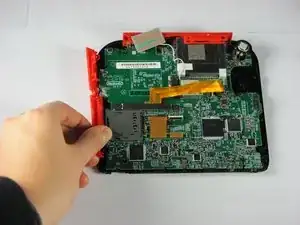

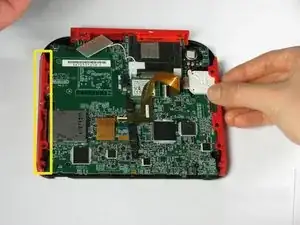

    • Fasse die Seitenleisten des Gehäuses mit den Fingern und ziehe nach außen, um sie zu entfernen.

    • Die Seitenleisten sollten sich mit wenig Kraftaufwand lösen lassen.

    When reattaching during reassembly, take great care to ensure volume slider piece is correctly aligned with potentiometer tab on motherboard, otherwise volume control cannot be changed.

    Elliot West -

    The are two small metal pins in the bottom corners of the case, take care not to misplace them.

    Elliot West -

    The (3?) small ribbon cables on the bottom of the motherboard appear to already have been unplugged in this step. unplug them while unplugging the two large screen ribbon cables in step 10

    Lin -

  8. 32gGatrJYXi2eqcW

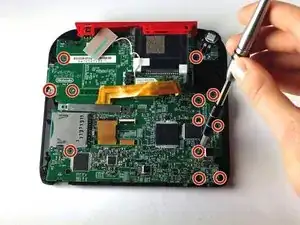

    • Entferne die zwölf messingfarbenen Kreuzschlitzschrauben, welche die Hauptplatine festhalten.

    • Sei dabei sehr vorsichtig und beschädige keine der Schrauben. Der Schraubenkopf ist leicht ausgefranzt, dann ist es unmöglich die Hauptplatine zu entfernen.

    ...also in this step, the pictures show the analog stick disappearing without a step to remove its two silver screws.

    Roger -

    I was using a brand new 000 driver, and found that I needed to dull the tip of it in order to get a better grip on these tiny screws.

    marjames -

    I dont know if its just me but my gold mother board screws i had a few that just didnt fit right with a ph000. Maybe my screw driver is just garbage?

    Mark Damien English -

  9. drj5COHLRB5bNu4x
    drj5COHLRB5bNu4x
    a5TIRFcWDcCjkH4k
    QFD1osmhxQpPJTkF

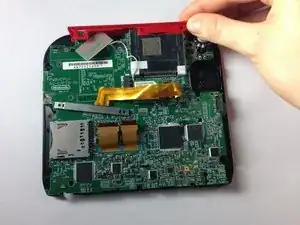

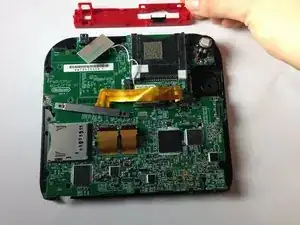

    • Das obere Leiste kann entfernt werden, wenn die Hauptplatine losgeschraubt ist.

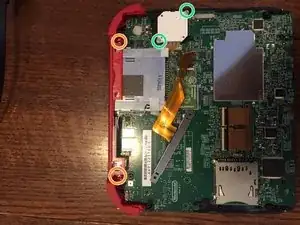

    • Zwei zusätzliche Schrauben sichern die obere Leiste. Drehe sie heraus, um diese Leiste ganz zu entfernen.

    • Zwei Schrauben befestigen die Montageplatte des Joysticks, sie müssen herausgedreht werden. (Achte auf das Flachbandkabel, es bleibt verbunden!)

    • Fasse die obere Leiste mit deinen Fingern und ziehe sie vom Gerät weg.

    • Die obere Leiste sollte sich mit wenig Kraft leicht lösen lassen.

    There are two additional brass screws holding the top panel plastic on to the frame. They are 00 Philips and shorter than the ones securing the motherboard.

    Roger -

    When reassembling, take care to ensure all buttons, and rubber button pads are located correctly BEFORE securing the motherboard.

    Elliot West -

  10. JKQgNplHbIPXEZdK
    JKQgNplHbIPXEZdK
    14GOAGZYrKXdPMfo

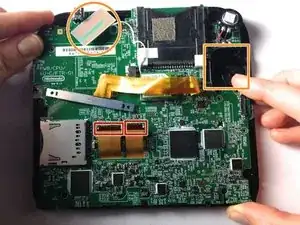

    • Löse die beiden Flachbandkabel, indem du die Klappstecker öffnest, die sie festhalten.

    • Hebe die rechteckige Platine oben weg und hebe das weiße Quadrat weg. Es handelt sich dabei um den Joystickmotor. (das braucht etwas Kraftaufwand). Beide bleiben mit der Hauptplatine verbunden.

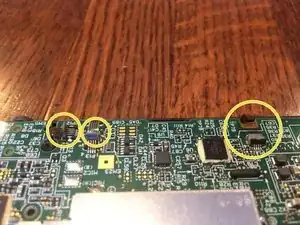

    • Bei einigen Modellen musst du noch drei weitere kleine Flachbandkabel unten am Bildschirm lösen. Auch diese sind durch Klappstecker gesichert. SEI VORSICHTIG!

    • Fasse die Hauptplatine an den Seitenkanten an, hebe sie hoch und entferne sie.

    Don't forget to disconnect the two tiny ribbon cables on the bottom of the motherboard that attach to the microphone and home button.

    Roger -

    What happens if I can't get the ribbons to reattach? Is the board broke irreparably?

    Laurie Hutcherson -

    ...as well as the hidden 4-conductor ribbon cable on the upper right that connects to the analog stick.

    Roger -

    What about the top 2 wires

    briana1987be -

    Briana the 3 wires on bottom of board are covered under screen 2 step 10.

    goldenkenneth -

    y e e t y e e t m y d u d e s ! ! ! ! ! ! ! ! ! !!n ! ! ! ! ! ! ! ! ! !

    scoobert doobert -

    The replacement board that I’ve got has not got a grey plastic flip down ribbon cable retainer! How do I swap one from my old board?

    JoeStoner -

    The motherboard of my 2017(I think) 2DS is definitely laid out differently than in this guide, be careful.

    Matthew D. H. -

    Cosa succede se i connettori dei 3 piccoli cavi piatti si dovessero rompere??

    00 Jumpscare -

    How do I flip up the two ribbons ( need help desperately)

    Abbigail Brogden -

  11. v4L1HltQRHiMd1Pj

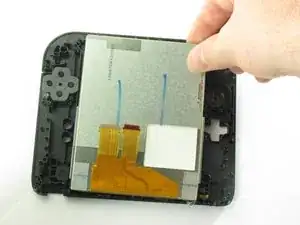

    • Die Flachbandkabel zum Bildschirm müssen gelöst sein, bevor du den Bildschirm vom Front Panel entfernen kannst.

    • Fasse den Bildschirm fest an einer Ecke an und hebe ihn vom Front Panel der Nintendo 2 DS weg.

    • Der Bildschirm ist mit doppelseitigem Klebeband befestigt, du wirst deswegen einen leichten Widerstand verspüren.

    Be careful with aligning the springs when you re-assemble the trigger buttons, they need to fit properly into their slots.

    Roger -

    In my unit, the joystick ribbon had a flip up connector also.

    finderz -

    If one of the ribbon connectors breaks, can computer tape be used to secure it?

    Rachel Licata -

    Do you have to buy a new screen? Or can I use my old screen

    Abbigail Brogden -

    You can buy a new screen if your old one is broken and needs to be replaced. If your old screen still works fine, you can use it.

    Nicholas -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
