Nintendo 3DS XL Infrarotplatine Austausch

Geschrieben von: Charlene Donlon
  • Kommentare: 57
Nintendo 3DS XL Infrarotplatine Austausch

Schwierigkeitsgrad

Mittel

Schritte

12

Zeitaufwand

15 Minuten

Einleitung

Hier wird der Austausch der Infrarotplatine gezeigt.

  1. uiGfsMWIvvMi1Gxg
    uiGfsMWIvvMi1Gxg
    BrgDdSH43ysqpUC2

    • Lockere die beiden 4,2 mm langen Schrauben, die sich oben auf der hinteren Abdeckung befinden.

    • Die Schrauben haben feste Unterlegscheiben, durch die sie an der Rückabdeckung hängen bleiben. Lasse diese Unterlegscheiben an den Schrauben, es ist nicht nötig, sie für diese Reparatur zu entfernen.

    Note: If your top or bottom screen was working before disassembly and doesn't work after reassembly, then it's likely that the connector is loose or dirty or damaged or not clipped or PLACED UPSIDE-DOWN. I had this issue with my Super3DS XL(2015) and it turns out that the reason why my top screen wasn't working after put together, was because I had the top LCD connector upside-down. After I correctly put the connector in, It worked again!

    justjustintuber -

    what type screwdriver do i use?!? its so small!!!!

    Matthew -

    I had success using a #00 Phillips head

    Jake S -

    Can't clip the front of the back cover back in

    Macro Man -

  2. GUqhWChaLM3ZkYDT
    GUqhWChaLM3ZkYDT
    w2fpAWwgAJcqSHZQ

    • Halte das Gerät mit der Rückabdeckung nach oben.

    • Fange in der Ecke rechts oben an die Rückabdeckung mit einem Plastiköffnungswerkzeug abzuhebeln.

    • Halte die Ecke offen, so dass sie nicht wieder einschnappt.

    • Schaue dir die Stelle unter dem Fach für den Stylus genau an. Heble die Abdeckung ab, falls nötig.

    • Hebe die Abdeckung ab und lege sie beiseite.

    Note that on the lower side (opposite to the hinges), there are small hooking tabs. These require you to lift the top (screw side) off towards you, then the lower area.

    Jordan Kelly -

  3. C6DIOSrlv4hCvQlN
    C6DIOSrlv4hCvQlN
    gKdhLpsCKBQbRC2P
    pL42eowreW5MQMTY

    • Setze das Plastiköffnungswekzeug in die Öffnung rechts vom Akku ein.

    • Hebe den Akku aus dem unteren Gehäuseteil heraus.

    • Entferne ihn und lege ihn beiseite.

    My 👴 grandpa was helping me 🔧 repair my 3ds xl and ⚡️electrocuted himself with the 🔋battery while we was taking it out with a 🔪 knife. 💀 Rip grandpa 😔

    Corban Bennett -

  4. NDaL1FwfgpipXktP
    NDaL1FwfgpipXktP
    ED2niUPcvZGc6RIq

    • Links und rechts vom Einschub für die Cartridges befinden sich oben zwei Gummifüße. Entferne sie mit einer Pinzette.

    I found that the rubber bumps don't move easily, you'll likely have to use a lot of upward force to move them.

    jconnell85 -

    I torn one of the bumpers because I used a needle instead.

    luxusmirajane -

    You do have a pry a bit. I tore one a little but not that big of a deal.

    Christopher -

    I think the ease of this step would be subject to the age and condition of the 3DS. Mine came out with minimal leverage using my nails.

    infmz -

    try twisting upward

    Kmi Nguyen -

    I used a super tiny metal screwdriver to push the bumper against one side and then used the screwdriver to push it up and out

    S Maduras -

    I tried tweezers but they were scraping against the plastic and I didn't want to leave any marks. Ended up using a tiny flat screwdriver to get them out like S Maduras said. Once I got them out I noticed there was a tiny bit of glue on the bottom holding them in place.

    Anth Rodi -

  5. TCb3gX1x3AIQipCO
    TCb3gX1x3AIQipCO
    ZUBt6MsBLfRC1bRg

    • Entferne sechs 6,2 mm Kreuzschlitzschrauben # 00.

    #000 ifixit philips screwdriver does not fit the 6.2mm screws. Whats the deal?

    sevenethshinobi -

    I have a 000 Phillips from tekton and it worked just fine.

    Megan -

    I stripped a good #000 screwdriver, and found that EVERY screw actually fit perfect and snug with a #00 screwdriver. Zero damage to the screws or the screwdriver with the #00.

    Vannicke Trabeitt -

    Don't buy the #000 screwdriver from this site! It's poorly made and strips the screws. I had to drill the screws out and replace them, it was very tricky and nearly broke my DS. Get a screwdriver from an electronics store.

    sharga -

    I bought and used the #00 screwdriver, and it worked perfectly for this.

    I had also bought the #000, but I never needed it during the entire operation.

    jconnell85 -

    All 6 screws are exactly the same so you don't have to worry about mixing them up.

    Christopher -

    One of the screws in my 3ds XL seems to have its '+' engraving worn off, i can't seem to unscrew it, though the other 5 unscrewed properly. What should I do?

    Potato Man -

    J000 works better here.

    Dom -

    I stripped a screw in my 3ds xl and don’t know how to get it out. Do I have to use a drill or is there another way?

    Troy Czaban -

  6. lwAJqibixLXNUTvp

    • Entferne die 2,3 mm Kreuzschlitzschraube #00 über dem Einschub für die Cartridges.

    between these two steps, the bottom two screws are not mentioned. make sure to take those out too ;)

    anthony pullano -

  7. MZdsuNoC12SfAQg2
    MZdsuNoC12SfAQg2
    j4KlaO4YjMZXQMr1
    egELWOpQy2ZM2GaK

    • Sei sicher, dass die SD Karte entfernt ist. Fange an der Unterkante an das untere Gehäuseteil mit einem Plastiköffnungswerkzeug abzulösen und gehe rings um das Gehäuse.

    • Zwei Flachbandkabel verbinden das Gehäuse mit der Hauptplatine. Ziehe nicht zu fest am Gehäuse damit die Kabel nicht beschädigt werden.

    Make sure that you have removed your SD card, otherwise that'll keep you from completing this step.

    jconnell85 -

  8. ML2lLyhIAkqvwZ6M
    ML2lLyhIAkqvwZ6M
    vUOOFyrWcTD5U3Uc
    QHCGlYtRbFsLEEwm

    • Unter den rechten und linken Tasten befinden sich zwei Flachbandkabel. Löse die Verbinder mit einem Plastiköffnungswerkzeug.

    • Entferne das untere Gehäuseteil vom Gerät und lege es beiseite.

    The IR board is facing the wrong way.

    Jordan -

    Thank you so much for pointing that out, it was keeping my system from starting up and I thought I blew it!

    Ryan Hescock -

    Yup, that is definitely an upside-down IR board, and will result in a silent post error. It was driving me crazy trying to figure out why the system wouldn't start up.

    alexmouravskiy -

    That's it!! Thanks so much!! I've tinkered around about one month and couldn't get this thing to work...all because I've followed the guide here and looked the picture up twice so I don't put the IR-Board in the wrong way...

    chfreydank -

    Hehe. That would explain why it was not working ;-)

    boma40 -

    Thank you guys so much! I followed everything faithfully and it was DOA on startup. (Black screens, blue light). The IR board was backwards. These pictures need to be fixed. As-is, it shows a broken 3DS.

    jtmuehlbauer -

  9. nLUoPQfoGUNaBU3D
    nLUoPQfoGUNaBU3D
    gALvDvwpnAVUwYfJ

    • Lege das Gerät mit dem Einschub für die Cartridges nach oben.

    • Finde das Schiebepad auf der rechten Seite.

    • Entferne die beiden 7,5 mm Schrauben oben links und unten rechts.

    This IR is bad side, diode IR must be UP

    patholog -

    Careful you don’t lose the little washer on the circle pad stem. It’s not held down by anything.

    edwardsgreg -

  10. CI62DGXtCSkNx26o
    CI62DGXtCSkNx26o
    W66IMNEFjpu6mMYa

    • Hebe das Schiebepad mit einem Plastiköffnungswerkzeug heraus.

    • Wende dabei nicht zu viel Kraft an. Ein Flachbandkabel verbindet noch das Schiebepad mit der Hauptplatine.

    • Zwischen dem Joystick am Schiebepad und dem Schiebepad befindet sich eine Unterlegscheibe. Achte darauf und verliere sie nicht.

    I found it easy to put my finger ontop of the board and apply a little pressure. When i popped off the board, my finger stopped it flying off.

    Chris Ramsay -

    I made a small mistake by popping the circle pad joystick and it went flying off and now im stuck trying to put it back in

    magnus munoz -

  11. CdVVBuCTeyDO5mZT
    CdVVBuCTeyDO5mZT
    QynH2EYVTOOVVjMR

    • Klappe den Sicherungsbügel am Verbinder des Flachbandkabels zum Schiebepad auf der Hauptplatine mit dem flachen Ende des Spudgers hoch.

    • Löse das Flachbandkabel und das Schiebepad.

    The 'flat head' holds it in place when down, and you can reattach your ribbon cable when it's up, it only needs to be partway in so when you close the flat head, if your joystick board can't move easily in place then you've done it right, it it's too loose, try again to work the ribbon cable under.

    jconnell85 -

    The ribbon goes into the left side of the "flat head" right? Not the end that clamps down on the right? I'm having a !&&* of a time sliding the end of the ribbon into the little space between the flat head when it's up and the side of the terminal.

    Sedroc Djeddi -

    For those of you like me, who got stuck after the last step.

    To understand how to actually remove the circle pad, continue with these steps at 21.

    Nintendo 3DS Schiebepad austauschen

    Hope it helps those after me. I almost ripped some cabling inside thinking I had to take out the motherboard.. luckily I didn't.

    monk333y -

    Just as what monk333y said, follow the Original 3DS steps. They are identical and you don't have to remove anymore big parts. The only annoying part is taking out the circle pad.

    luxusmirajane -

    I broke the retaining clip. It is not very strong and I used a bit too much force i think in opening the clip or pushing it back down. Thinking of using hot glue or something else to keep the circle pad ribbon in place.

    Lawrence -

    Did the hot glue work? I did the exact same thing now im not sure what to do…

    Matthew Johnson -

    How do you re attach the ribbons? do the just snap right into the motherboard?

    petraogan -

    thank you monk333y, the author of this guide needs to correct a couple of things and how hard would it be for her to add steps 21 onward from the other guide?

    S Maduras -

    step 11, if you're just replacing the button, you don't need to disconnect the circle pad ribbon from the motherboard.

    S Maduras -

    During re-assemblhy, note that the peg between the joystick mechanism and the circle pad is rectangular, and must fit into the matching rectangular socket on the circle pad.

    Dan -

    When testing the touchscreen, make sure you install the analog. Otherwise, the screen will act erratic. Thought I broke a brand new part. Just a heads up!

    Hassan Sinanan -

    The entire top part of my circle pad had broken off, so I had no problem getting the old one out. I actually had more trouble getting the ribbon cable back into the clip, and the new circle pad attached to the stick, than any other part.

    That said, this was way, way easier than I expected it to be.

    Emtu -

  12. BDMRAdlBqGdfRmSi
    BDMRAdlBqGdfRmSi
    gP1TmEMjWKfNUq42

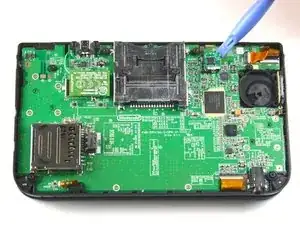

    • Lege das Gerät mit dem Einschub für die Cartridges nach oben.

    • Finde die Infrarotplatine oben rechts auf der Hauptplatine.

    • Auf den Bildern ist die Infrarotplatine leider mit der Unterseite nach oben montiert. Wenn du das so tust wird den 3DS XL nicht starten. Notiere dir die richtige Orientierung bevor du es ausbaust und setze es später korrekt ein.

    • Setze ein Plastiköffnungswerkzeug unter die Infrarotplatine und hebe sie vorsichtig heraus.

    The IR board appears to be upside down in this photo.

    Eric -

    One assumes they forgot to take the photo before removal and quickly put it back on upside down (accidentally) for the purposes of taking the photo.

    Retro Gaming Repair -

    Removing the IR board is actually a completely unnecessary step. It's absolutely fine to leave the IR board attached to the motherboard, it's then one less loose piece to go missing ;)

    Retro Gaming Repair -

    The reason they remove these "easily loosable" pieces is because there's an order to put the board back together or the 3DS won't turn on. This is for replacing the motherboard, which most of the time you will buy and it won't come with the microphone, volume or IR board. Use your head kiddo. If it's so easy to loose these pieces, you should keep better track of them. We might as well just not take out any screws as well because those are very easy to loose

    Miles Holiman -

    You should add this note to the other uses of this picture; I accidentally knocked that chip off and reinstalled it upside down. I was referencing the photos for replacing the joystick.

    Infernal Dalek -

    You skipped removing the microphopne.

    Mykaila Brown -

    In my 3DXL, there was no IR board: the parts were installed directly on the motherboard.

    Dan -

    I agree my 3dxl the IR board is also part of the motherboard and doesnt come off.

    Anthony siracuse -

Abschluss

Um dein Gerät wieder zusammen zu setzen folge den Schritten in umgekehrter Reihenfolge.
