Nintendo 3DS XL Left Bumper Replacement

Geschrieben von: Jack Belcher
  • Kommentare: 1
Nintendo 3DS XL Left Bumper Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

If you have noticed that the left shoulder button on your Nintendo 3DS is no longer registering your presses, it may be due to a faulty left bumper and/or ribbon cable. Over time, the left bumper assembly and ribbon cable can become worn out or damaged, causing the button to malfunction. In this guide, we will provide you with the necessary steps to replace the left bumper and left ribbon cable on your 3DS. By following these instructions, you can restore the functionality of your left shoulder button and enjoy your gaming experience once again.


  1. D6MdUxBLJ2Jctm25

    • Remove the SD card and the game cartridge from the device.

  2. hOdYpqJRAAFpWUOe
    hOdYpqJRAAFpWUOe
    gM3DF3DACFGjLIp5

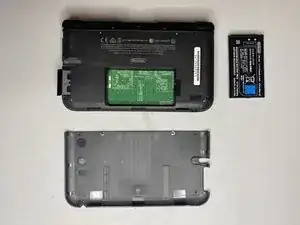

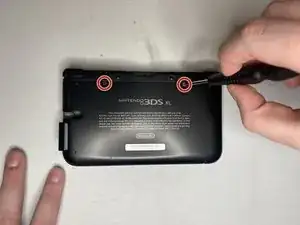

    • Locate the battery cover panel on the back of the device.

    • Unscrew the two screws on the battery cover panel with a Phillips #00 screwdriver.

    • Remove the battery and battery cover panel.

  3. ah1sDO3pUDMNiKIo

    • Remove the four screws on the battery panel using the Phillips #00 screwdriver.

  4. qPTUsVgOZAJTUdvD

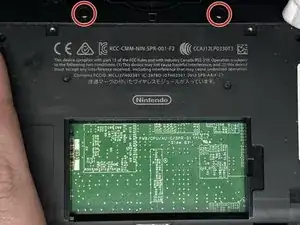

    • Locate the two screw covers on the bottom of the back panel, near the middle of the device.

    • These sticker-like covers are small, round, and made of rubber or plastic.

    • Insert the tip of a flathead screwdriver or spudger and gently pry the cover off by applying upward pressure.

    • You may need to wiggle the tool back and forth a bit to loosen the two covers.

    • Remove the two screws located behind the screw covers using a Phillips #00 screwdriver.

  5. A2LX1HXJKWU5KKc6
    A2LX1HXJKWU5KKc6
    ZhrUQSwkYbeDVxLi

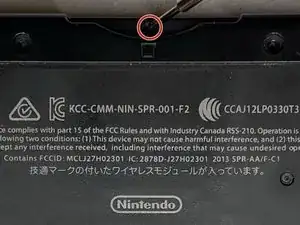

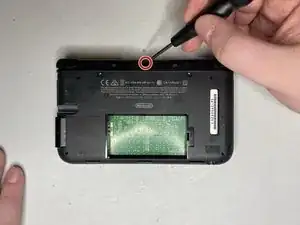

    • Remove the screw near the game card compartment using a Phillips #00 screwdriver.

  6. euTT2ZrD3D5RAmpO
    euTT2ZrD3D5RAmpO
    4PDRlwnSc1kRHLKQ

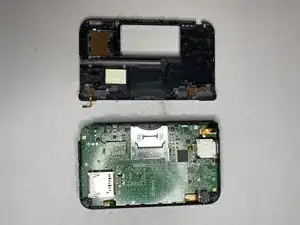

    • Lift the back panel off of the device.

    • Be cautious not to pull any ribbons or cables from the motherboard as you remove the back panel.

    • Locate and disconnect the ribbon cables from the motherboard by gently pulling on the tabs that hold them in place.

  7. 5igOFKT3Hkhgp3sO
    5igOFKT3Hkhgp3sO
    RO2XjlfTjlW3crWV

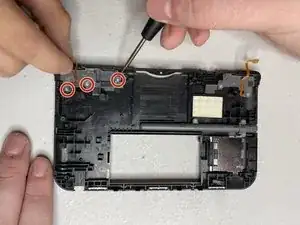

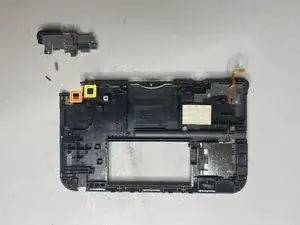

    • Remove the three left bumper assembly screws using Phillips #00 screwdriver.

    • Once the three screws are removed, gently remove the left bumper assembly from the device.

    • The spring may eject from the assembly as you remove it.

    • Remove the hinge pin from the bumper assembly.

  8. gAWVQww3QceyA1M6

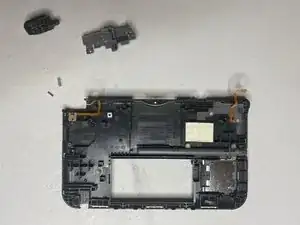

    • Separate the bumper from the bumper assembly

  9. t4WAAZSJF6KM1cyR
    t4WAAZSJF6KM1cyR
    nsDHNpEoTtpTSapC

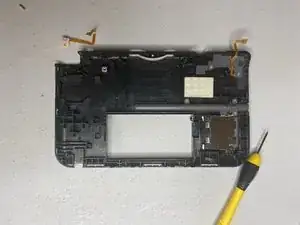

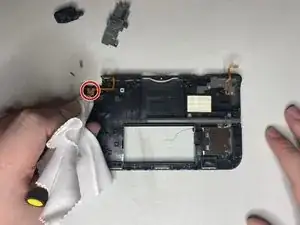

    • Using a spudger or a flathead screwdriver, gently pull the ribbon cable straight out of the connector in order to remove it.

    • The ribbon cable can be removed by other means such as using gloves or a microfiber cloth if preferred.

    • Replace the left bumper ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
