Nintendo 64 Bottom Cover Disassembly

Geschrieben von: tonymag28
  • Kommentare: 4
Nintendo 64 Bottom Cover Disassembly

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 - 20 Minuten

Einleitung

This is how you remove the bottom cover

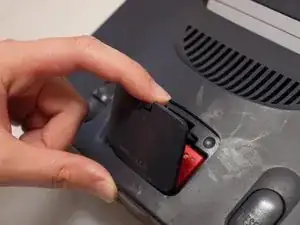

  1. 2Ih1yBMRhFX6oJXL

    • Remove the expansion pack cover by pushing in the tab and pulling out.

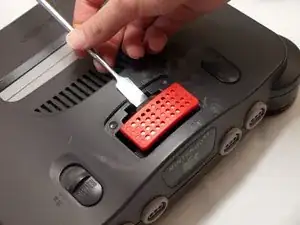

  2. MgfU6iWKEtQAW2Ua

    • If your system uses a jumper pack, the same procedure applies to remove it.

    • A small spoon can be used in place of a spudger.

    • Lever the expansion pack out using a metal spudger.

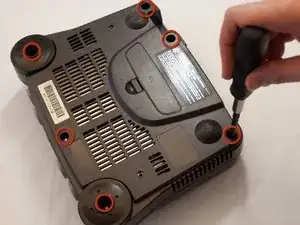

  3. PFLKcDxe1FkJIJSa

    • Remove the six screws on the bottom side indicated in the example with a gamebit head or screwdriver.

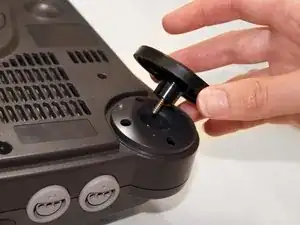

  4. 24Bj6JSZV2eId5oE

    • Remove the two front feet of the N64.

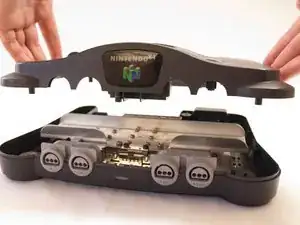

  5. wmroNcWfbILLSvRR

    • Rotate to top side up and lift off top cover.

  6. Ar2HSxGjjgP3wv1O
    Ar2HSxGjjgP3wv1O
    GMwFA6oQurIZTZpT

    • Remove the fourteen screws indicated in the example using the larger Phillips screwdriver.

    I’m not entirely certain if it's a common difference, but my nintendo 64 doesn’t have fourteen screws, but rather, 8 screws, and instead of 3 heat sinks, it only has the one separate heat sink on the chip close to the memory expansion pack. additionally, aside from the 6 screws closest to the expansion pack, the two other screws are held on by nuts under the metal piece.

    Avery Duncan -

  7. tWP1loiHU6hPACi4
    tWP1loiHU6hPACi4
    IuyXVNcHru2H4IHp

    • Remove the metal plate indicated in the example by sliding it back and then lifting it up.

  8. eFHZYoeECwusTJYN

    • Remove the two screws indicated in the example using the smaller Phillips screwdriver.

  9. HL1DQqbF2xRtFrWR

    • Remove the screw to the right of the LED light using the larger Phillips screwdriver.

  10. SrkMnmLGNgKpVqk4

    • Remove the small metal bracket from the back of the expansion pack slot.

  11. ZkVUXFGIeBjmJRid
    ZkVUXFGIeBjmJRid
    uUH41shDZeJXHSqG

    • Remove the small metal bracket from the front of the expansion pack slot with the metal spudger.

    I have noticed this is not in Australian Pal versions of the N64.

    at First i thought i was missing a bit on my N64 and now have looked a second one and its also not there.

    Darren Welch -

  12. LdHXTieRRDQxOUjF
    LdHXTieRRDQxOUjF
    nVGCrIJHbiF1biJq

    • Remove the small metal bracket behind the expansion slot using the spudger.

  13. QQBSEEYu2KMBa1bq
    QQBSEEYu2KMBa1bq
    kihF2wHDtnKeNwqi

    • Remove the seven screws indicated in the example using the larger Phillips screwdriver.

    The two screws next to the cartridge slot are longer

    Michael -

  14. JXPSWmtJmqKOdXt2

    • Lift off and remove the metal plate as indicated in the example.

  15. H6xfC1gSD2ROCe6C

    • Remove the four screws indicated using the #1 Phillips screwdriver.

    I found the #2PH to work a bit better here

    Rand Avary -

  16. hcJpDZOWcpRnAnNV

    • Lift up and remove the motherboard.

  17. eqaS4CnYnT3j5smV

    • Remove everything from the bottom cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
