Nintendo DS Lite Shoulder Buttons Replacement

Geschrieben von: Francisco Varela
  • Kommentare: 4
Nintendo DS Lite Shoulder Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide will explain how to replace the shoulder buttons on a DS Lite if they are sticking or not working properly.

The tools you’ll need for this task are:

  • Spudger or other flat tool
  • Screwdrivers
    • Phillips
    • Tri-wing

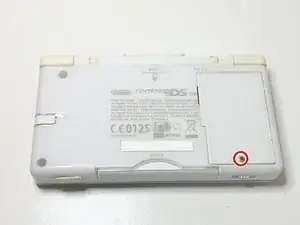

  1. d3HQBYQVEPjpmM3r

    • Use a Phillips #00 screwdriver to remove the screw securing the battery cover.

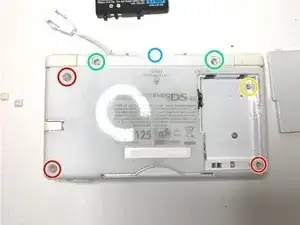

  2. g1g2US4luIBOe3Ri

    • Use a spudger to pry out the battery.

    • Pry off the rubber feet.

    • Remove the seven screws securing the lower case:

    • Three tri-wing screws

    • One Phillips screw

    • Two gold Phillips screws

    • One black tri-wing screw

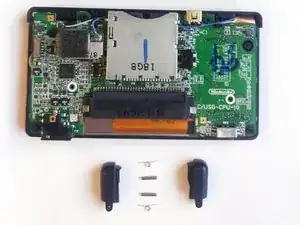

  3. Fw5pQZuK6lfwEdOv

    • Carefully pry the bottom cover off.

    • Remove the shoulder buttons by pulling out the metal pegs that secure them to DS.

    • The triggers are held in by tiny metal pegs and springs. Keep track of each piece.

  4. KoHbZuhVES66HYSB
    KoHbZuhVES66HYSB
    HKe2Fktnup6w2vMT
    ILONxCMqjjZahsos

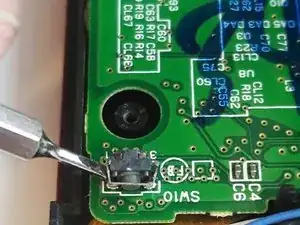

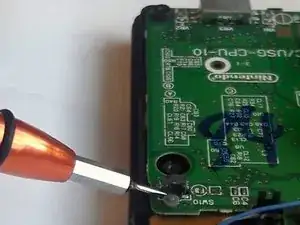

    • You can now access the micro-button component and replace or repair anything as needed.

    Could someone run through or send a link explaining the disassembly of the micro-button?

    Aaron Rueppel -

Abschluss

To reassemble your device, follow the steps in reverse order after making your repair.
