Einleitung

Use this guide to remove the lower touchscreen from the lower LCD.

  1. xvUu2VHXnLOaoxyD
    xvUu2VHXnLOaoxyD
    GJgBKkUY2j6UrTTr
    • Unscrew the two Phillips screws securing the battery cover to the lower case.

    • The screws remain captive to the battery cover.

    • Grasp the battery cover and lift out of the lower case.

  2. TMGAeGDWRXJKjqkf
    TMGAeGDWRXJKjqkf
    pXTJP3k1hRhVckSv
    • Wedge the edge of a spudger in between the top of the battery and its lower case housing and pry upwards to dislodge the battery.

    • Grasp the battery and remove it from the DSi.

  3. ZElvjs4G5DRnVKEX
    ZElvjs4G5DRnVKEX
    NNd3fYSswNeKCoBU
    • Two screws are hidden underneath two rubber feet highlighted in red.

    • Use the tip of a spudger to pry the rubber feet out of the lower case.

    One of the feet did break on me, tweezers came in handy for picking it out

    Willie Narvaez -

    I unfolded and sharpened a paperclip. You can use that to stab and hook the rubber without tearing it, as the rubber is thick enough to reseal when reinserted.

    Keegan Andersen -

    Nasty, broke my spudger and the feet in this step.

    TimedIn -

  4. MPpnnO22qoYDH1YH
    • Remove the following screws securing the lower case to the body of the DSi:

    • Six 5.2 mm Phillips #00 screws.

    • One 2.7 mm Phillips #00 screw.

    Impossible d'enlever les vises… trop serré! comment faire?

    evrobert03 -

    i can't get the screw by the gamecard slot out, PH#00 is too small and PH#0 is too big

    Iblowup -

    same problem here. maybe try a JIS?

    darth mango -

  5. MqTKErbDcomH6eMJ
    MqTKErbDcomH6eMJ
    HuePUMK6TciCQZEj
    OkwvvvtBbd53ugBG
    • Insert the spudger in between the lower casing and lower panel near the top right corner of the DSi.

    • Carefully run the spudger along the edge of the outer casing, creating an opening between the body and the casing.

    • Continue running the spudger around the body of the DSi until the majority of the lower case has been separated.

  6. ZsX1F2YxXpOFEtuH
    ZsX1F2YxXpOFEtuH
    BS25HSFVrSclu2X1
    • Carefully lift the lower casing from its bottom edge.

    • The lower case is still attached to the motherboard by the volume and SD board cable highlighted in red. Do not try to completely remove the lower case of the DSi yet.

    • Pry the volume and SD board cable up from its socket on the motherboard using a spudger.

    • Once the cable is completely removed, then you may take off the entire outer casing.

  7. kmVh26fubSE4TiMD
    • Pull the Wi-Fi board away from the motherboard by its edge closest to the headphone jack.

  8. QDhsgwruDwxGZhwa
    • Pry the Wi-Fi antenna connector straight up from its socket on the Wi-Fi board.

    After reassembling it, I switched my Nintendo DSi xl On and only the blue power light, is on after that it doesn't respond any more, except while charging it blinks

    Phillips -

  9. rOrYJByq3ETfmbdk
    • Use the tip of a spudger to pry the power board connector out of its socket on the motherboard.

    do not pry up! pull to one side so you don't disconnect the clip from the motherboard!

    Lisa -

    Actually Lisa, you are incorrect. If you pull to one side you WILL end up pulling the connector off the motherboard. It is designed so that you ARE MEANT TO pry it upwards out of the connector. All you need to do is use the point or corner of the flat edge of a spudger (or a small flat-headed screwdriver), push it ever so slightly under the middle of the small white plug where there is a small recess in the connector for just this purpose. Prying the plug up in this fashion you should clear the connector with the spudger by prying it up through the recess rather than catching the connector and pulling it off the board.

    James Gravestock -

    how to fix if the clip comes off of the motherboard?? please help!

    jaime -

    Push it back in straight if it is still in one piece.

    Tman Tech -

    If the socket comes off the motherboard along with the connector, what’s the best way to fix it?

    Kimberly Meyer -

    it has to be soldered back on, so if you can't do it yourself, find someone who can (maybe a local repair shop).

    just some mango -

  10. GkLxSBWqXUZvEWfO
    GkLxSBWqXUZvEWfO
    wH65BTmxHuvJEaw3
    • Use your fingernail or the edge of a plastic opening tool to flip up the retaining flap on the following three ZIF sockets:

    • Lower touchscreen cable

    • Lower LCD cable

    • Power board cable

    • Be sure you are prying up on the hinged retaining flaps, not the sockets themselves.

    • After flipping up the locking tabs on all three sockets, use your fingers or a pair of tweezers to gently pull the cables straight out of their sockets.

    I accidentally broke the retaining flap off of the lower touchscreen’s socket. Is it possible to reattach it?

    Thewolfpack23x -

    Mine broke off too. At first I thought it would just pop back in, but when I looked at it under magnification, I can see that a tiny piece of plastic actually snapped off the flap. I think we're farked. Looks like the only way to fix would be to solder on a new cable connector.

    trevorsklar -

  11. QQ53GOjQUAjipiLR
    QQ53GOjQUAjipiLR
    RnDBPQTsLn1a4m5E
    • Use your fingernail or the edge of a plastic opening tool to carefully flip up the touchscreen ribbon cable retaining flap.

    • Make sure you are flipping up the retaining flap, not the socket itself.

    • Use the tip of a spudger to pull the touchscreen ribbon cable straight out of its socket.

    When I was putting mine back together, the flap popped off and when I tried to put it on with a tweezers, it snapped. Any suggestions other than scrap it or use it without the touchscreen? Pictures at https://sites.google.com/site/memesbyluc...

    Lucas Hoekstra (Lucas9810) -

    This little flap is a pain in the butt to get back in! If there is any way to bypass the removal of this, my advise is to do it!

    Tamara Girodie -

    Adding on: The cable actually ended up breaking as the tweezers I used to put it back in scraped part of the gold ribbon off. Be extremely careful!!!

    Tamara Girodie -

  12. mafsk2s4efjqS2NP
    mafsk2s4efjqS2NP
    A6utw32KgXdGX3hn
    • Use your fingernail or the edge of a plastic opening tool to carefully flip up the dual camera ribbon cable retaining flap.

    • Make sure you are flipping up the retaining flap, not the socket itself.

    • Use the tip of a spudger to pull the dual camera ribbon cable straight out of its socket.

  13. 4JjISgpwCH2gWOm4
    • With the tip of a spudger, Pry the microphone antenna up off its socket on the motherboard.

  14. n3Z4aW2J3yJGnHfM
    • Remove the following four Phillips screws securing the motherboard to the DSi framework.

    • Three longer screws.

    • One short screw.

    • Pull the microphone and Wi-Fi antenna cables out of the notch cut into the motherboard near the headphone jack.

  15. B2aHLlOTl2dIdMJP
    B2aHLlOTl2dIdMJP
    tQHEhIuY2yBQBFvm
    oexSRl3VTauw5BVp
    • Slightly lift the motherboard upwards to reveal the upper LCD ribbon cable above the ABXY buttons .

    • Use your fingernail or the edge of a plastic opening tool to carefully flip up the upper LCD ribbon cable retaining flap.

    • Make sure you are flipping up the retaining flap, not the socket itself.

    • Remove the motherboard from the DSi.

    I actually chose to leave this ribbon cable connected, and had no issues completing the rest of the steps around this. Just be careful not to pull the cable!

    Tamara Girodie -

  16. OrGPD1EqHlD4RNKS
    OrGPD1EqHlD4RNKS
    i2kPqfain3lsgpdh
    • Use the tip of a spudger to pry the metal backing of the lower LCD up from the DSi's framework.

    • Lift the lower LCD assembly out of the DSi.

    It’s not mentioned here, but I found it easiest to just remove the buttons and rubber backings here as well - they will likely just fall out anyway when moving the case around and you may lose them.

    Tplan -

  17. pdZPrAsnxidCgWVF
    pdZPrAsnxidCgWVF
    gtPaVPuIamxdnEIB

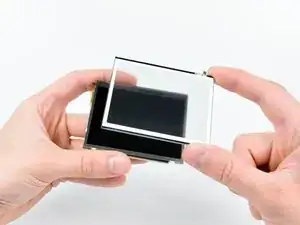

    • Insert the edge of a plastic opening tool between the lower touchscreen and the lower LCD.

    • Carefully run the edge of the opening tool along the perimeter of the touchscreen to detach it from the lower LCD.

    • Remove the touchscreen from the lower LCD.

    • Lower LCD remains.

Abschluss

To reassemble your device, follow these instructions in reverse order.
