Nintendo DSi Power Board Replacement

Geschrieben von: Walter Galan
  • Kommentare: 10
Nintendo DSi Power Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace your DSi's power board. Replacing the power board will give you a new battery connector and new electronic switches for the D-pad as well as the power button.

  1. xvUu2VHXnLOaoxyD
    xvUu2VHXnLOaoxyD
    GJgBKkUY2j6UrTTr

    • Unscrew the two Phillips screws securing the battery cover to the lower case.

    • The screws remain captive to the battery cover.

    • Grasp the battery cover and lift out of the lower case.

  2. TMGAeGDWRXJKjqkf
    TMGAeGDWRXJKjqkf
    pXTJP3k1hRhVckSv

    • Wedge the edge of a spudger in between the top of the battery and its lower case housing and pry upwards to dislodge the battery.

    • Grasp the battery and remove it from the DSi.

  3. ZElvjs4G5DRnVKEX
    ZElvjs4G5DRnVKEX
    NNd3fYSswNeKCoBU

    • Two screws are hidden underneath two rubber feet highlighted in red.

    • Use the tip of a spudger to pry the rubber feet out of the lower case.

    One of the feet did break on me, tweezers came in handy for picking it out

    Willie Narvaez -

    I unfolded and sharpened a paperclip. You can use that to stab and hook the rubber without tearing it, as the rubber is thick enough to reseal when reinserted.

    Keegan Andersen -

    Nasty, broke my spudger and the feet in this step.

    TimedIn -

  4. MPpnnO22qoYDH1YH

    • Remove the following screws securing the lower case to the body of the DSi:

    • Six 5.2 mm Phillips #00 screws.

    • One 2.7 mm Phillips #00 screw.

    Impossible d'enlever les vises… trop serré! comment faire?

    evrobert03 -

    i can't get the screw by the gamecard slot out, PH#00 is too small and PH#0 is too big

    Iblowup -

    same problem here. maybe try a JIS?

    darth mango -

  5. MqTKErbDcomH6eMJ
    MqTKErbDcomH6eMJ
    HuePUMK6TciCQZEj
    OkwvvvtBbd53ugBG

    • Insert the spudger in between the lower casing and lower panel near the top right corner of the DSi.

    • Carefully run the spudger along the edge of the outer casing, creating an opening between the body and the casing.

    • Continue running the spudger around the body of the DSi until the majority of the lower case has been separated.

  6. ZsX1F2YxXpOFEtuH
    ZsX1F2YxXpOFEtuH
    BS25HSFVrSclu2X1

    • Carefully lift the lower casing from its bottom edge.

    • The lower case is still attached to the motherboard by the volume and SD board cable highlighted in red. Do not try to completely remove the lower case of the DSi yet.

    • Pry the volume and SD board cable up from its socket on the motherboard using a spudger.

    • Once the cable is completely removed, then you may take off the entire outer casing.

  7. 1ypLDSJeLf3Ej1sW

    • Use the tip of a spudger to pry the power board connector out of its socket on the motherboard.

    I broke my white box off the wires and off the mother board. Please help.

    Jack Meloche -

  8. aycKuTuwUnxBQvJ2
    aycKuTuwUnxBQvJ2
    xRkZIsUutnebm2bN

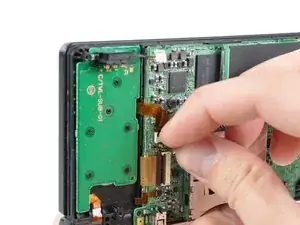

    • Use your fingernail or the edge of a plastic opening tool to flip up the retaining flap on power board ZIF connector.

    • Be sure you are prying up on the hinged retaining flap, not the socket itself.

    • After flipping up the locking tab on the socket, use your fingers or a pair of tweezers to gently pull the cable straight out of its socket.

  9. AhULZToBwiNCM5lD
    AhULZToBwiNCM5lD
    MmS5WR4lpXsIPywl

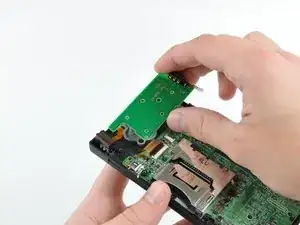

    • Remove the five 2.6 mm Phillips screws securing the power board to the DSi's framework.

    • Lift and remove the power board out of the DSi.

  10. HVrabaS5vyXHkpXS
    HVrabaS5vyXHkpXS
    aYnBTRaaQeEnAnQa

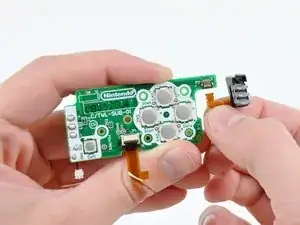

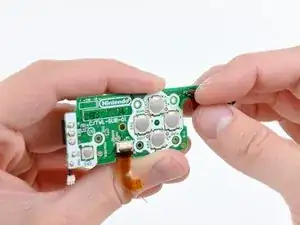

    • Use your fingernail or the edge of a plastic opening tool to flip up the retaining flap on LED indicator ZIF connector.

    • Be sure you are prying up on the hinged retaining flap, not the socket itself.

    • After flipping up the locking tab on the socket, use your fingers or a pair of tweezers to gently pull the cable straight out of its socket.

    • If necessary, transfer the power board ribbon cable to your new power board.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Walter Galan

685541 Reputation

3 Kommentare

So when I was attempting to repair my DSI, the red cable became unplugged and now my system won’t turn on. What can I do to fix this before I go the option of getting replaced or ordering replacement parts?

{Zantrock} -

I need help. I busted off the connection of the power board to the mother board. Is there any way I can solder the red and black wires directly? Because the white piece is broken and gone now.

Jack Meloche -

Hi I would like to ask about the buttons because in my case a plastic like bubble appeared on top of the contact gray button and it doesn’t make the pop sound anymore like the others that also means that it doesn’t work anymore could you help me?

Aleix M.G. -
