Nintendo DSi XL D-pad Replacement

Geschrieben von: Brett Hartt
  • Kommentare: 3
Nintendo DSi XL D-pad Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

  1. LIHVnXkBLxLAmFX2
    LIHVnXkBLxLAmFX2
    McyatAIFRiH6Rv4V

    • Remove the two Phillips screws securing the battery cover to the back of the handheld console.

    • Lift the battery cover off the back of the DSi XL.

    rust/white powder built up on a screw and can’t unscrew it

    Eco -

  2. hBMGuXT2UL1NcEKT

    • Lift the battery from the DSi XL.

  3. DRCcParl5UWTDqOO
    DRCcParl5UWTDqOO
    qXCWLlKGCyOoljVu
    oQRGOhTofiyOef4m

    • Remove the four rubber screw covers on the lower case by prying them up with a push pin.

  4. YcQNLo2uDR3P3KJC

    • Remove the following seven Phillips screws that secure the lower case to the rest of the DSi XL:

    • Four silver 5.3 mm screws

    • Two black 5.3 mm screws

    • One black 2.5 mm screw

  5. BIoYTWlcpQx4cZga
    BIoYTWlcpQx4cZga
    I3ZXKSQk1qDftZHn
    b2CwNLS1EvGSWnR1

    • Turn the DSi XL over, and open the display.

    • Insert a spudger between the upper and lower case at the bottom left corner of the DSi.

    • Slide the spudger along the bottom edge of the upper case to release the latches securing the upper case to the lower case.

  6. nvmvFhfB3IbyUrOD
    nvmvFhfB3IbyUrOD
    2wFkRA6UCXfYgxSC

    • Close the display and turn the DSi XL over.

    • Lift the lower case from the front edge.

    • Rotate the lower case away from the DSi.

    • The lower case cannot be completely removed yet, since it is still connected to the motherboard.

  7. naXc3O2Ktm5rO2Tl
    naXc3O2Ktm5rO2Tl
    LOmEVuXMuOgKawjX

    • Using a spudger, pry the SD card/right shoulder button connector off its socket.

    • Pry the volume button/left shoulder button connector off its socket on the motherboard with a spudger.

  8. NrEc22QVWrPZNS6V
    NrEc22QVWrPZNS6V
    NA1wltoX4SQHQlFv

    • Using the flat end of a spudger, flip up the retaining flap on the ZIF connector for the D-pad/power button cable.

    • With the pointed end of the spudger, pull the D-pad/power button cable from its connector on the motherboard.

  9. eoBqwCeaQYx3jNGU

    • Using the flat end of the spudger, carefully pry the battery cable out of its socket on the motherboard.

    • Use caution, as the wires are very fragile and could come out of the connector if pulled on too hard.

    I found that my battery cable socket is missing is there any replacement parts and how do I fix it?

    ryan da great -

  10. uTYUywsmXhLLEXNc
    uTYUywsmXhLLEXNc
    aflVXI2BETnHbZTQ

    • Remove the seven 2.5 mm silver screws securing the power board to the upper case.

    • Lift the power board off the upper case.

  11. sMsgSB5SOmejcoLB

    • Lift the rubber pad off the back of the D-pad.

  12. J6FMiQ6wrYAFB1hj
    J6FMiQ6wrYAFB1hj
    oeYMXMoSG1tRKXBE

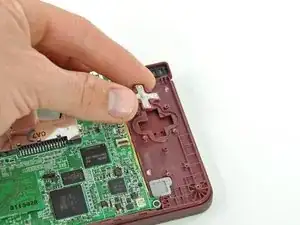

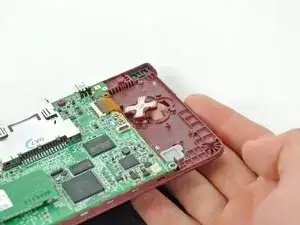

    • Open the display slightly, and push the D-pad up through the upper case.

    • Lift the D-Pad from the handheld device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Brett Hartt

Mitglied seit: 13/04/10

125814 Reputation

Ein Kommentar

Be very careful removing the screws - a Google search returns page after page of people who stripped their screws trying to remove the lower case or the power board. My lower case may be permanently attached now. If I did it over again, I would consider dripping a tiny amount of WD40 onto the screws and letting it seep in for a day before I tried removing them...

Nick Noble -
