Einleitung

No one likes a sticky R-button. Clean it out and get back to beating your siblings at Mario Kart.

  1. LIHVnXkBLxLAmFX2
    LIHVnXkBLxLAmFX2
    McyatAIFRiH6Rv4V
    • Remove the two Phillips screws securing the battery cover to the back of the handheld console.

    • Lift the battery cover off the back of the DSi XL.

    rust/white powder built up on a screw and can’t unscrew it

    Eco -

  2. hBMGuXT2UL1NcEKT
    • Lift the battery from the DSi XL.

  3. DRCcParl5UWTDqOO
    DRCcParl5UWTDqOO
    qXCWLlKGCyOoljVu
    oQRGOhTofiyOef4m
    • Remove the four rubber screw covers on the lower case by prying them up with a push pin.

  4. YcQNLo2uDR3P3KJC
    • Remove the following seven Phillips screws that secure the lower case to the rest of the DSi XL:

    • Four silver 5.3 mm screws

    • Two black 5.3 mm screws

    • One black 2.5 mm screw

  5. BIoYTWlcpQx4cZga
    BIoYTWlcpQx4cZga
    I3ZXKSQk1qDftZHn
    b2CwNLS1EvGSWnR1
    • Turn the DSi XL over, and open the display.

    • Insert a spudger between the upper and lower case at the bottom left corner of the DSi.

    • Slide the spudger along the bottom edge of the upper case to release the latches securing the upper case to the lower case.

  6. nvmvFhfB3IbyUrOD
    nvmvFhfB3IbyUrOD
    2wFkRA6UCXfYgxSC
    • Close the display and turn the DSi XL over.

    • Lift the lower case from the front edge.

    • Rotate the lower case away from the DSi.

    • The lower case cannot be completely removed yet, since it is still connected to the motherboard.

  7. naXc3O2Ktm5rO2Tl
    naXc3O2Ktm5rO2Tl
    LOmEVuXMuOgKawjX
    • Using a spudger, pry the SD card/right shoulder button connector off its socket.

    • Pry the volume button/left shoulder button connector off its socket on the motherboard with a spudger.

  8. yT3Mg64M5EslV1my
    yT3Mg64M5EslV1my
    wiAdJPuDWDdmXEFe
    2VHQSBTOBCbMCAxa
    • Remove the two gold 4.0 mm Phillips screws securing the right shoulder button assembly to the back case.

    • Lift the right shoulder button assembly from the back case.

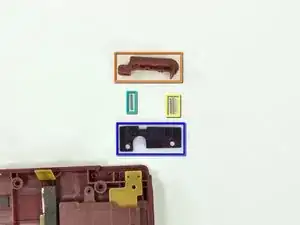

    • The components of the right shoulder button assembly:

    • Right shoulder button

    • Shoulder button spring

    • Retaining pin

    • Right shoulder button holding panel

Abschluss

To reassemble your device, follow these instructions in reverse order.
