Nintendo Switch Micro SD Card Reader (FPC Connector Socket) Replacement

Geschrieben von: John Frantz
  • Kommentare: 3
Nintendo Switch Micro SD Card Reader (FPC Connector Socket) Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

25 - 45 Minuten

Einleitung

With extended use over time, Switch models may malfunction. This guide will cover how to replace a malfunctioning SD card reader. The Switch system is widely recognized for its limited internal storage capacity, hence it may prove challenging for users to download and install additional game titles without a properly functioning SD card.

To fix an SD card reader you need to replace the FPC connector socket which connects the SD card reader to the motherboard allowing it to properly function.

  • For this project, experience with applying flux is strongly recommended.
  • Additionally, you should have prior knowledge of how to use a heat gun.

  1. A4jAkEFXR11tSPlP
    A4jAkEFXR11tSPlP
    aTOkniSdbqdBHjer

    • Locate the power button on the top of the Nintendo Switch; it is the indented circular button to the left of the volume buttons and is circled in red in the first image.

    • Press and hold the Power button for three seconds, a power options menu will pop up. Select “Turn Off” in the options menu to power off the Nintendo Switch.

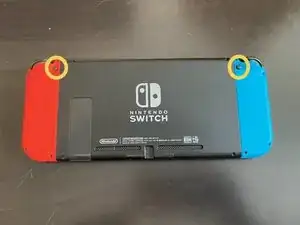

    • Press and hold the black buttons on the back of the joy cons, and slide them upward to remove them. These buttons are circled in yellow in the second image.

  2. mooFW21UUFiBsOLb
    mooFW21UUFiBsOLb
    EM1TWNPbdCklgZU5
    xdEfNmM4vEmDoBQq

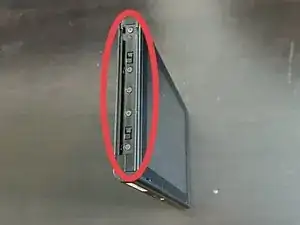

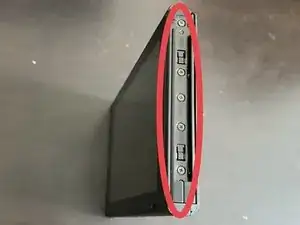

    • Locate the five Phillips head #00 screws on each side of the device and remove them.

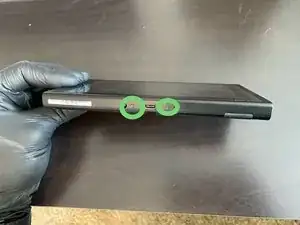

    • Locate the two Phillips head #00 screws from the bottom of the device and remove them.

  3. auWghC3NMQXtL2Rc
    auWghC3NMQXtL2Rc
    ZlQA1m6GaYordHEN
    Syu3bZkkaWlvNXQd

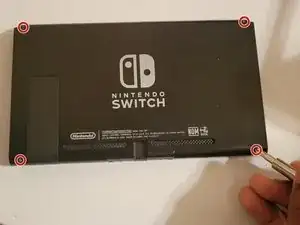

    • Locate the four tri-wing Y0 screws on the back of the device and remove them.

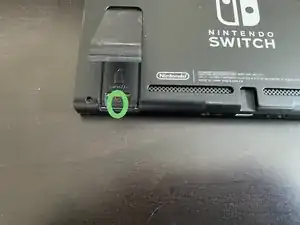

    • Lift the SD card cover and remove the Phillips head #00 screw from the back of the device.

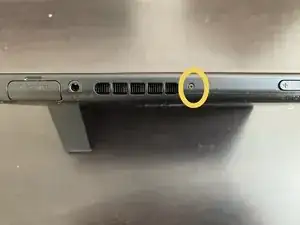

    • Locate the Phillips head #00 screw on the top of the back cover next to the fan vent and remove it.

    • Carefully remove the back cover from the device.

    My switch had 4 00 Phillips head screws in the back cover, one on the bottom of the back cover on either side of the USB-C port and a very short 00 phillips screw on the top of the back cover, next to the fan outlet.

    mike -

  4. MlgmkgpW2HV1lJBH
    MlgmkgpW2HV1lJBH
    ReVvbmYScKSRBqdI

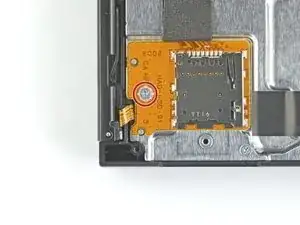

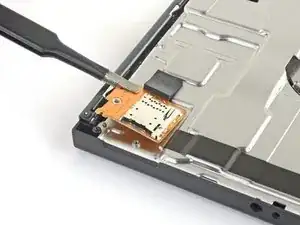

    • Locate the Phillips head #00 screw securing the microSD card reader to the device and remove it.

    • Slowly remove the SD card reader using tweezers.

    • Improper removal or insertion of the SD card reader can damage either the card reader or the connector socket.

    • During reassembly, make sure to firmly connect the press connector to the motherboard.

    • To make it easier to remove and reinstall the card reader, you may find it helpful to remove the foam pad beforehand.

  5. 6uLlHFIO3NpMqnWx
    6uLlHFIO3NpMqnWx
    MHJYt2kwPT4xVFAu
    E3An5IFgUiGUKqBB

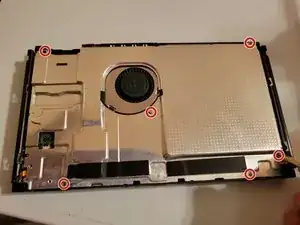

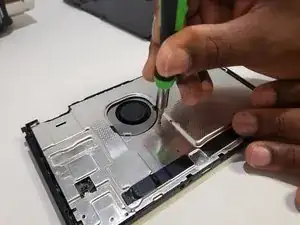

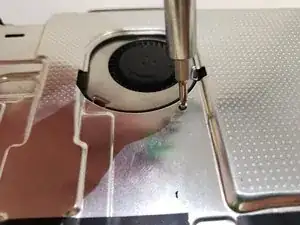

    • Locate the six Phillips head #00 screws from the metal plate inside of the device and remove them

  6. BCBRrh4MGC1dNWhA
    BCBRrh4MGC1dNWhA
    ZhRpFDrCjhu4hiEp
    bPdkffYdGbfsPkiV

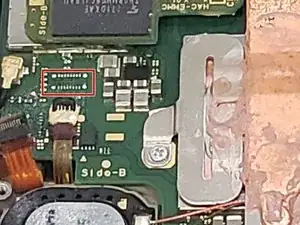

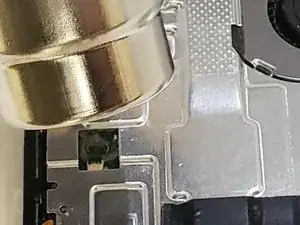

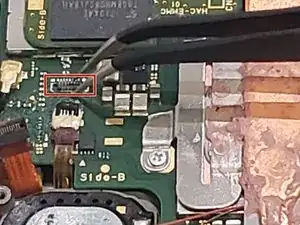

    • Using the heat gun apply 400°C heat to the connector socket for 30 seconds to loosen the flux.

    • Remove the metal cover plate

    • Carefully remove the FPC connector socket using the tweezers.

    • Be careful with the heat gun in order to prevent harm to other parts or yourself

    • It is encouraged to wear heat-resistant gloves and to cover other components with aluminum foil or another metal casing.

    NE JAMAIS FAIRE COMME INDIQUE !!

    Très risqué, travail atroce, à ne surtout pas reproduire !!

    Joris DEBARD -

  7. JBejSWkICAiCbCjU
    JBejSWkICAiCbCjU
    4OUlPm2vnIkxfZ25

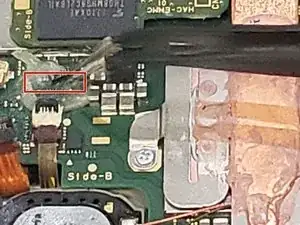

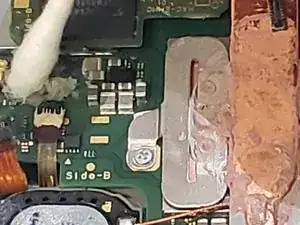

    • Apply a new coat of flux.

    • Smoothen the surface area using a cotton swab.

    • Insert the new connector socket into the flux.

  8. NwIEDmvMWpdtjy2l
    NwIEDmvMWpdtjy2l
    urgQTRlA1ohDP4XY

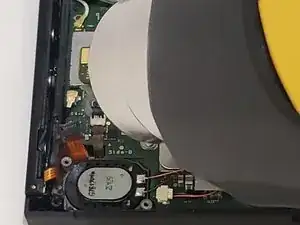

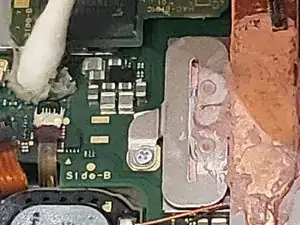

    • Use the heat gun to apply 400°C to the new flux to loosen it.

    • Use the cotton swab to ensure that the FPC connector socket is completely secured in the flux.

    • Be careful with the heat gun in order to prevent harm to other parts or yourself

    • It is encouraged to wear heat-resistant gloves and to cover other components with aluminum foil or another metal casing.

    Why does it show applying heat through the hole in the metal plate after the previous instruction is to remove the plate? Confusing to people if they've never worked on a switch before. Maybe remove that photo.

    Nigel -

Abschluss

To reassemble your device, follow these instructions in reverse order.
