Nintendo Switch Pro Controller Front Button Replacement

Geschrieben von: Daniel Tagalog
  • Kommentare: 13
Nintendo Switch Pro Controller Front Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

10 - 15 Minuten

Einleitung

The front buttons on a Nintendo switch pro controller are supposed to be free flowing and have lightning fast response time. If your controller is not performing at the highest level it can then that means you will keep losing games. The controller has to be the best it can possibly be so that you can play up to your ultimate potential. If your front buttons are sticky, unresponsive, or will not press down all the way, use this guide to remove and replace your buttons. This guide requires a Phillips #00 screwdriver for screw removal.

  1. iaKRfcPV2HNC5yUK

    • Flip the controller over so the model stickers face the ceiling.

    • Use a JIS #00 screwdriver to remove the two black 8.4 mm screws that secure the handles, located at the ends of the handles.

    Be carefull, these screws are super easy to strip even with the right tools.

    Lukas Eberharter -

    I tried editing these instructions after I had trouble with stripping screws, but it doesn't seem to take. The issue is that these are JIS and not Phillips screws. They are VERY similar looking but a Phillips head screwdriver will strip the screws.

    Isaac Webb -

    I tried using a Philips #00 screwdriver but it didn’t work

    vincent ingrassia -

  2. pFHHOlTyvlQ43DOC
    pFHHOlTyvlQ43DOC
    KCE54LsPyGnuWTkW
    UNYZtREEKVfHallZ

    • Carefully remove the handle covers by pulling them away from the main body.

  3. 3OnYDcOU1gVR2fEG

    • Use a JIS #00 screwdriver to remove the four silver 6.8 mm screws that secure the clear back plastic cover.

  4. Zb3Ool4Evh63KKVd
    Zb3Ool4Evh63KKVd
    E4qBEgOibCQbXlIJ
    jihxJQfDSqclVJnF

    • Carefully pry away the clear plastic cover using your fingernail.

  5. p4bHAkTpIvuBFIfc

    • Remove the clear plastic cover.

  6. yUbMYllrTC6sSOGL
    yUbMYllrTC6sSOGL
    6pxWhyQpxoXGbs22
    vEF6WXIGCHUebiZO

    • Remove the lithium-ion battery by using a fingernail or plastic opening tool to pry it up on the left side.

    • Only a small amount of force is needed.

  7. 41hYi1SofYMKVF4B
    41hYi1SofYMKVF4B
    IhtOVVcrnx5IBHgJ
    WJ4LvGQlKLhlREns

    • Use a Phillips screwdriver to remove the five 5mm-long screws from the back of the controller.

    the 2 screws up at the top are unreachable with the standard fixit kit just a heads up

    drew -

    Seconded. the screws are located too deep below the plastic slot, and the bit holding bulge is too wide for the small aperture (similarly with the flexible extension). the bit length is too shallow to reach.

    An alternative driver with a much narrower & longer shaft is required, which will likely not come with interchangeable bits.

    Douglas Selby -

    I would say it is possible to reach the top left screw, just not the top right - there is a gap in the top left that allows you to slightly bend the standard driver outward to turn it while still making adequate contact.

    El_Mechacontext -

    An update: I was actually able to remove the top right one in a really hacky way - inserting the Phillips #0 bit into the #4 hex bit, and then using that in the standard driver. This added just enough length to successfully reach and make full contact with the screw!

    El_Mechacontext -

    Using the #4 hex bit as an extension was the exact "hack" I needed to get rid of the drift finally. Thank you. You're a lifesaver.

    Das #4 Hex Bit als Verlängerung für das Kreuzschlitz Bit zu nutzen ist zwar etwas eng, aber es erspart einem wirklich einen zusätzlichen Schraubendreher.

    Techn0magier -

  8. PnIrdtdY4KCyxuKK
    PnIrdtdY4KCyxuKK
    ZBKtxPXnhQuBTaDN
    OZcevYGCPPARFaRx

    • Delicately take off the plastic cover from the controller.

    • Do not completely remove the front cover just yet, as it is still attached to the motherboard via a white ribbon cable.

    Didn't realize there is adhesive holding the front cover onto the unit. It's located inside of the handles. Just a bit of force there helped, just be careful of the cable.

    Roger Perez -

  9. NpVhXDsYSWmW4tBT
    NpVhXDsYSWmW4tBT
    QXe1DlCMuCXbrveX

    • Use the tip of an opening pick to open the black flap of the ZIF connector by pushing it upwards.

  10. 3qj6VtFJtKAHHm6I
    3qj6VtFJtKAHHm6I
    YJvaLXngDhvHF1Gr

    • Use your fingers or a pair of blunt nose tweezers to disconnect the interconnect cable from its connector.

  11. OpC2vBHXBB35uAQ4

    • Remove the front case.

  12. d2TaQbKySN1dMQ4M

    • Remove the two 6.8 mm-long screws on the top circuit board using a Phillips screwdriver.

  13. GuqsGsnEcB2nVvxX
    GuqsGsnEcB2nVvxX
    RVyZNQZQ3Depk22x

    • Use a spudger to flip up the locking tab on the ZIF connector.

  14. tlAmOo6KaKA6USWf
    tlAmOo6KaKA6USWf
    6GTbU2NmR3QpSBZC

    • Remove the black ribbon cable from its connector.

    • Only a small amount of force should be needed to remove the ribbon cable.

    What do I do if the connector snaps off? Is it fixable with solder or electrical tape or should I give up hope?

    Jack Frost -

  15. ZHXWOMSOZhgEMnTA
    ZHXWOMSOZhgEMnTA
    PgCpkYRsAuKmefFR

    • Remove the trigger buttons from the plastic cover.

  16. EKCXGB3arkg2hkrC

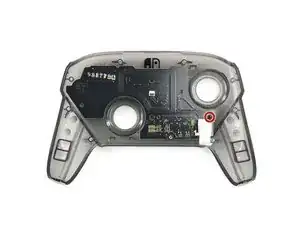

    • Use a Phillips screwdriver to remove the 5 mm-long screw securing the front button board.

  17. GIBDs1GsOl4sxKHf
    GIBDs1GsOl4sxKHf
    pSV5Zu5NWpjEcEIr

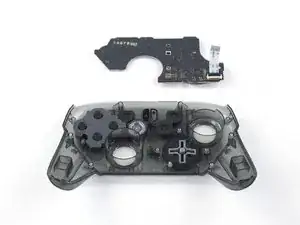

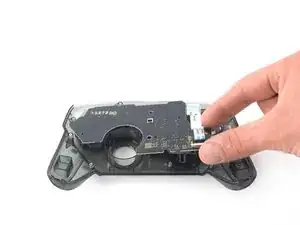

    • Remove the front button board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
