Nintendo Wii Linse am DVD Laufwerk austauschen

Geschrieben von: David Hodson
  • Kommentare: 135
Nintendo Wii Linse am DVD Laufwerk austauschen

Schwierigkeitsgrad

Mittel

Schritte

38

Zeitaufwand

1 - 2 Stunden

Einleitung

Wenn das DVD Laufwerk nicht mehr gut funktioniert, hilft meistens der Austausch der Linse am DVD Laufwerk.

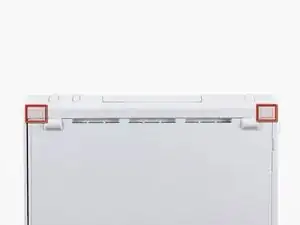

  1. nAy3OhXSoOfu4ijL
    nAy3OhXSoOfu4ijL
    c15NIW3ZpSXgdFZe

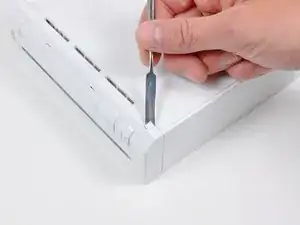

    • Entferne mit einem Metallspatel die weißen Schraubenabdeckungen, die im Gehäuse unten an der Vorderseite des Wii stecken.

    Die Abdeckungen sind geklebt, stecken also nicht.

    Ludger -

    Don’t mistakenly remove the rubber case feet

    Bob Trout -

    I just did. That picture could be better.

    B G -

    Thanks I almost removed the rubber feet

    Lushane -

    If you’re wondering what to use for this, the main blade of a pocket knife from the corner of the plastic works well.

    Cameron Holman -

    As you remove the hardware in each step, place them together on a sheet of paper and circle them with the step number.

    Tom J -

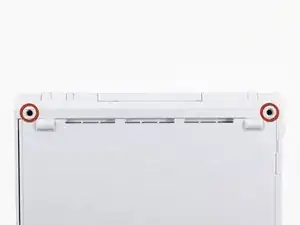

  2. QLLTmVQpby6q1oKX

    • Entferne die beiden 8,3 mm TriWing Schrauben unter den eben abgelösten Abdeckungen.

    Before you start, get a small plastic tray with at least 15 small bins in it, and put the screws you take out in each step in the bins in order. It makes reassembly a LOT easier.

    larry -

    NOTE: You need a Y1 screwdriver. Be careful when buying the little red screwdrivers on Amazon that claim to fit the Wii - they don’t!! From personal experience.

    Robotai -

    Just to add to Robotai’s comment, if you do get the little red/orange screwdrivers on Amazon, file off the tip. It if’s mostly blunt, it fits the tri-wing screws much better.

    jeff -

    1/16 x 1 craftsman Phillips mini screwdriver works for this if you don’t have the tri-wing driver

    grace nicosin -

    How do you make one ? If you don’t have the screwdriver

    Ethan -

    I am using a 18ct empty egg carton to hold the screws/parts removed in the steps.

    karenmparamore -

    Larry’s idea about the bins was great and helpful.

    Robots is right- you NEED a Y1. Just buy the thing with the drive. I didn’t, tried many other options, none worked. Had to order the thing separately with shipping. Mistake….

    David Ryan -

  3. wjvAQVg1yyeAi1pU

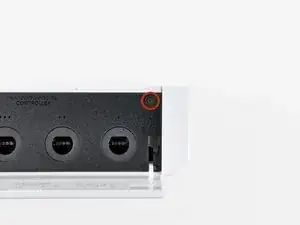

    • Entferne die einzelne 5,9 mm Kreuzschlitzschraube unter der Klappe für den Eingang des Controllers gleich bei der Frontplatte.

  4. ghUThgil3vmDoPcV

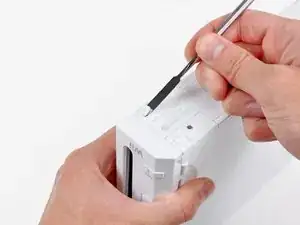

    • Entferne mit einem Metallspatel den Gummifuß auf der Seite der Wii in der Nähe der Öffnung des DVD Laufwerks.

    All of the rubber feet on my very old Wii had literally melted into a gooey mess and just needed to be scraper off and cleaned with alcohol.

    Bob Robins -

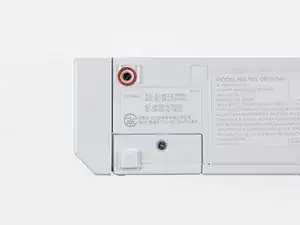

  5. mhVTpcmCaFExhNaO

    • Entferne die einzelne 5,9 mm Kreuzschlitzschraube unter dem eben entfernten Fuß.

    please help! my lil sis got a disc stuck in my wii while it was off!!! please help fast!!!

    Leah Vegan -

    does it turn on?

    Giovanni Munoz -

  6. i1WPurAjixkuIcDK
    i1WPurAjixkuIcDK
    xygEtkVuunWqi4dd

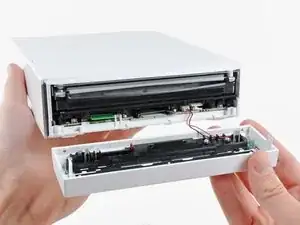

    • Ziehe die Frontplatte vorsichtig von der Vorderseite der Wii weg.

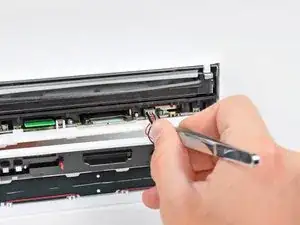

    • Löse den Plastikverbinder am LED-Kabel mit der Pinzette von der Hauptplatine.

    • Entferne die Frontplatte.

    surprisingly, this was the trickiest step for me. I almost completely mangled the wires when my tweezers slipped as I was attempting to remove the connector.

    rbelknap -

    I removed it with a spudger, gently lift from each side until it pops out.

    For those reassembling

    line up the pins push it in with your spudger gently until it's in. Then line up the front plate, push gently, confirm everything is where it should be and push firmly, I found it needed a strong push to sit flush with the other body panels.

    James middleton -

    I ended up using needle nose pliars on this step.

    Awesome detailed guide made this very easy, thank you author!

    Glenn Woodard -

    Can someone direct me to what I need to do? My tweezers slipped and I cut one of the wires on the connector. Where can I find a new Y plug for the wii?

    jaredslaweski -

    I also broke my wire trying to use tweezers. I should have known better. I use (normally do) a spudger on one side and my fingernail on the other to gently pry these types of connectors out. I ended up buying a replacement faceplate on ebay.

    Tyler -

    This was the hardest part for me. I tried using my fingernails, two different tweezers, and needle nose pliers, but I ended up cutting both the wires. Anyway, I put some electric tape over the exposed wires and just reassembled the system. Funny thing is that the LED still works and I have not noticed any difference. I'm not sure what those wires did, but they seem to not be important.

    Nick -

    For people still wondering after all these years, :), The connector is for the blue leds around the dvd when loading and unloading a disk.

    Niels -

    I also broke off the flimsy wires at the connector. To NOT break the wires, alternate pressing on the right and left sides of the connector with a small flathead screwdriver. Be patient, it will eventually work itself free. There isn't enough to grab onto with the tweezers and you'll only succeed in having them slip off, grab the wires, and yank the wires out.

    Good news is that if you do rip out the wires, no worries... I didn't reconnect them and the unit works just fine. I have no idea what those wires are even for. Power LED continues to work no problem.

    jasendorf -

    I used two small flat head screw drivers, one on each side to pry out the connector. This created less pressure from me and reduced my chance of cutting the wires.

    mulkey -

    This guide is really marvellous - works a treat. But I would definitely recommend needle nose pliers for this step rather than tweezers. It's really easy if you use pliers and potentially damaging if not, and you get it wrong. I had one sniff at it with tweezers then immediate nipped out to the garage for my pliers!

    thepitcanary -

    Definitely a tricky step with that connector. I also cut broke the wire accidentally and was going to just give up trying to fix the Wii. However, as others stated the Wii works just fine, including the lights. I do wonder what those wire are for.

    darcaesar -

    I also had a lot of trouble trying to get the connector off with tweezers. Ended up leaving it attached. It does not really get in the way of remaining steps.

    Ron Even -

    Needlenose pliers did the trick for us!

    Ron Cormier -

    Needlenose pliers did it for us!

    Ron Cormier -

    You can save yourself some trouble at this point and skip the rest of the disassembly: See that green tab to the left of the sd card slot? THAT’S the wifi board (and that green tab, in hindsight, seems designed to make it accessible without taking apart the whole device, don’t you think?) A little careful spudging, and you’ve got it out, ready to replace! (There’s a guy who shows the process on youtube, if you want to review first)

    Will -

    I got the connector out ok thanks to the suggestions here, but I couldn’t figure out how to reattach it. In the end, I just kind of threw it in and it worked fine.

    Christine Wittmer -

    Very clear instructions - thanks! Faceplate needed replacing after one of my son’s friends accidentally kicked it across the room. $10 bucks to fix, thanks to ebay and these instructions. I’d never heard of a “tri-wing” screw before.

    LInda Rawlins -

    I just left the connector alone and kept it connected while working on it. There is enough wire to allow you to do what you need if you are just careful not to snag it on anything.

    Michael Payne -

    This was the trickiest part, I almost broke the wires using tweezers and pliers, so instead use a flat end screwdriver to pry it out, when putting it back in use needlenose pliers to start it then use your fingernail to go the rest of the way.

    grace nicosin -

    After I got the connector out I noticed the little locking flap on the top side of the connector. I think prying this first is the key to easier removal.

    Will B -

    Anyone know of a method to replace the connector if you end up breaking the wires? Bits of wire are stuck in the white plastic connector, so I'm wondering if I can buy a connector online somewhere without replacing the whole face plate. Thanks :)

    Bronze Owl -

    I severed both wires. If you want to avoid removing the connector, you can lengthen the two wires by unserpentining them from the wire holder that's in the cover.

    Griff Derryberry -

    Make sure there is no SD card in your unit before pulling this off, otherwise it'll get stuck and you could snap your sd card in half!

    carlosahiciano -

  7. GZYIO2iirMcnTBQL
    GZYIO2iirMcnTBQL
    PbD4A5VBcsLJ1tYW
    GAwGa1hgtnKuiPFs

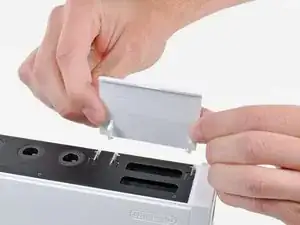

    • Öffne die Abdeckung über den Controller-Ports bis sie rechtwinklig zur schwarzen Blende ist.

    • Ziehe die Abdeckung gerade heraus und löse sie vom äusseren Gehäuse.

    • Wiederhole diesen Schritt für die Abdeckung über dem Anschluss für die Speicherkarte.

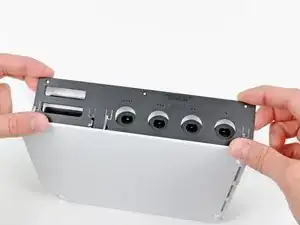

  8. 5gH2SPFFYhQLXoZ2
    5gH2SPFFYhQLXoZ2
    UGivIc4L2ejQD3mv

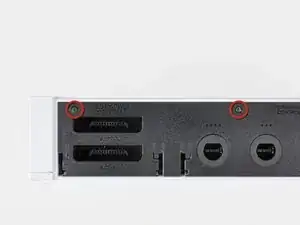

    • Entferne die beiden 4,1 mm Kreuzschlitzschrauben am oberen Rand der schwarzen Kunststoffblende der Controller-Ports.

    • Hebe die Blende der langen Kante gegenüber den Controller-Ports hoch und entferne sie von der Wii.

    The 3rd hole is in step 3.

    James middleton -

  9. gVM15IknBqyYY5sO

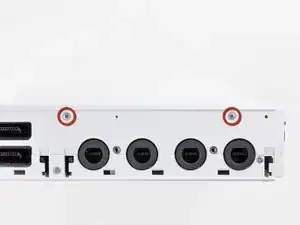

    • Entferne die beiden 5 mm Kreuzschlitzschrauben über den Controller-Ports.

  10. BCYHR1CYxUkGSIAM

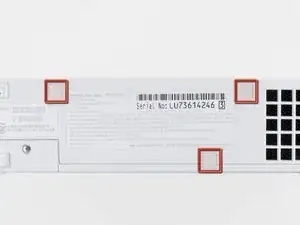

    • Entferne mit einem Metallspatel die drei markierten Schraubenabdeckungen auf der Seite der Wii.

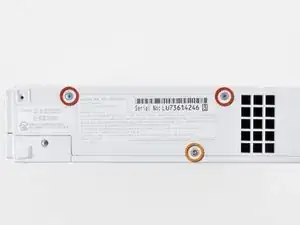

  11. vrshxvpywjLhpKLT

    • Entferne folgende Schrauben:

    • Zwei 5 mm Kreuzschlitzschrauben

    • Eine 8,2 mm Tri-Wing Schraube

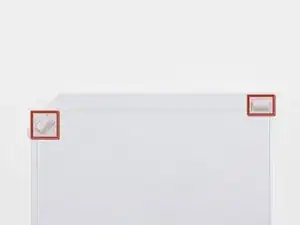

  12. jSyMwWqvjWCBPTxE

    • Entferne mit dem Metallspatel die beiden Gummifüße in der Bodenplatte in der Nähe der hinteren Anschlüsse.

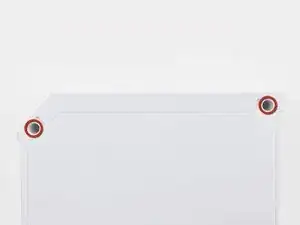

  13. UVFQ6pJvVMHKKHje

    • Darunter befinden sich zwei 8,2 mm TriWing Schrauben. Drehe sie heraus.

    • Eventuell benötigst du eine Verlängerung für das 4 mm Sechskantbit, um die Schrauben in den tiefen Löchern zu erreichen.

    had a little trouble with theses screws. they were just barely too deep for my 54pies bit driver kit to reach. I ended up inserting a small wad of paper into the shaft of my driver so the tri-wing bit stuck out far enough to engage the screw. (I used the tweezers to remove the paper when I was done) :)

    rbelknap -

    I can confirm, this works fantasticly!

    Thank you

    James middleton -

    When putting the screws back in hold the tip still with the screw and carefully drop it in.

    James middleton -

    Thank you rbelknap, this is excellent advice for those using the ifixit branded driver.

    George Squires -

    You could also use the 4mm nut driver in the iFixit kit to turn the tri-wing driver. This will give you a little more reach.

    Edward Tucker -

    How is no one talking about the included 4mm nut driver trick at Edward Tucker mentioned?! That is genius! Thanks mate!

    Zabuza -

    That's the idea that I needed. Agree with Zabuza.

    cwdick -

    Bingo. All of the other comments were unnecessary.

    Tony Shannon -

    This paper wad trick totally worked for me too!

    anonymous 779 -

    Standard Tri-Wing bits will NOT fit into the holes. Make sure that you get one of the tool kits from iFixit (I just ordered the Mako Driver/Bit kit with 64 bits ) - the Tri-Wing bits in this kit have a narrow shaft that allows it to reach deep into narrow holes like these on the Wii . (Disclaimer - I have no association with iFixit).

    dave whale -

    I just sawed off a bit of the shank holder from the iFixit tool, in order for the bit to go deep enough into the case.

    The tool still works fine.

    Alan Walker -

    Thanks for the paper wad trick advice! Worked perfectly with my Wii

    Finder352 -

    The 4mm driver was the exact fix for this problem, no mods necessary

    Tony Shannon -

  14. mymDLxDWlRsB4vHW

    • Hebe das äußere Gehäuse vom Rest der Wii weg.

    This step could use at least another picture from the backside so it's clearer what comes up and what stays down.

    Jose Vazquez -

    I used a spudger around the edges of the outer case to gently ease it upward since I could not lift it out with my fingers. Then it came right out.

    Marko -

    hey marko that really helped me thanks\. als if you need help figuring which side is up, its the one with the nintendo engraving on it

    Aryan Garg -

    A fan filter fell out at this step how do you put it back?

    Edit: I figured it out it was from the side intake vent. Just line up the two notches with the pegs in the case to hold it in place

    Darren Jones -

  15. SqZI2B154SVW1ZJc
    SqZI2B154SVW1ZJc

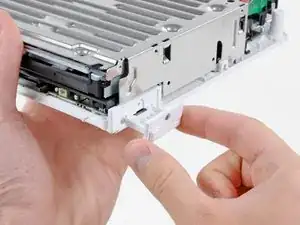

    BW5UKvFUfK4ZVExC

    • Entferne die kleine Kreuzschlitzschraube, welche den Batteriefachdeckel an der Bodenplatte festhält.

    • Diese Schraube bleibt im Deckel hängen.

    • Ziehe den Deckel von der Wii ab.

    • Wenn die CR 2032 Knopfzelle schon länger nicht gewechselt worden ist, dann wäre das jetzt eine gute Gelegenheit dazu.

    The screw on the battery door of my Wii required a Phillips #000 screwdriver, which is not listed in the required tools.

    Ben -

    The screw is a PH0000 (quadruple zero) requiring an exceptionally small Phillips screwdriver to remove. If this is your first time in here in a while, this may also be a great time to change the CR2032 battery.

    Steve Bonds -

    I was able to use the ph0 no problem.

    Darren Jones -

    I used a 00 with no problem.

    julie -

    What does this battery do? I never knew there was a battery inside of the WIi.

    Stephen Thornhill -

    thje battery is used to maintain timwe and date etc

    Electronik -

    Where can we get a new battery from?

    Chriul Rg -

  16. gObGvUh6TpHn2gXb

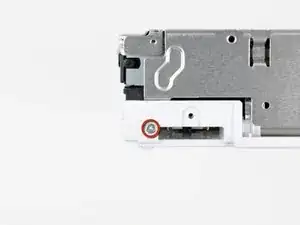

    • Hinter dem Batteriefachdeckel findest du eine 8,2 mm TriWing Schraube. Drehe sie heraus.

    Note - this screw is a machine screw (e.g. not self-tapping). It screws into a hex nut, and that nut is captive in a slot in the case. When reassembling, ensure that this hex nut is still captive, and has not migrated out to other areas within the Wii.

    dyanetti -

    The other drive cage hole is screwed in step 11, continue to reassemble.

    James middleton -

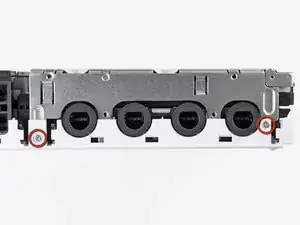

  17. iIKijEXEWbyxr4mJ

    • Entferne die beiden 8,2 mm TriWing Schrauben, die die Abdeckung des DVD Laufwerks in der Nähe der Controller-Ports befestigen.

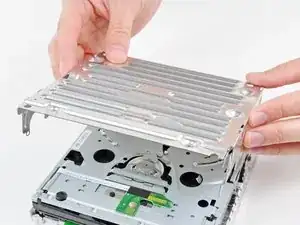

  18. XlIvLipMQrrNcTnm

    • Hebe die Abdeckung des DVD Laufwerks hoch und entferne sie von der Wii.

    Be careful not to cut your fingers on the sharp edges of this metal shield. My daughter actually scraped enough skin to cause blood to drip off her finger. Then we noticed her skin stuck to the metal edge. Yuk.

    J Smith -

    True story I did it to myself lol

    James middleton -

    Does the dvd shield need to be there? I want to remove it but im not sure if i should

    Kadamo -

  19. ZS6nMai5uZUNE6mZ

    • Entferne die vier 9 mm Kreuzschlitzschrauben #1, welche das DVD-Laufwerk an der Bodenplatte festhalten.

    The two left hand screws were very difficult to relocate during reassembly. I was coaching my 8 year old through this, and this was probably the only step that he couldn't do. We dropped these screws several times, and used magnets to retrieve. Miniature needle-nose pliers gripping the 'washer' surface of the screw were too wide. We managed to purchase the 'button head' of these screws with the needle-nose and drop the screws into their hole, and push with the phillips until secure. I would like to hear how others install these screws, please.

    dyanetti -

    I had the same problem as you and eventually found an easy way round it. I wrote this to be added to the instructions but it was rejected: "Once the DVD drive has been removed, remove the 4 rubber washers from the screws removed earlier and insert them into your new DVD drive. Because two of the screws are difficult to reach, it is best to insert these two screws into the washers and then slide them into place ready for securing to the base plate".

    The rubber washer holds the two screws roughly in position, you can then reach them with your screwdriver through the two holes (about an inch away) and finish tightening them up.

    Gary -

    For the two screws at the front of the chassis, use a three-pronged parts retriever to lift them out after you unscrew them.

    Walter -

    Helpful tip: Use a magnetized screwdriver for the 2 screws nearest the DVD face because they are set in deep sockets

    Blake Minghelli -

    During reassembly, it can be tricky to position the recessed screws. To temporarily magnetize your screwdriver, rub the tip against a magnet for 5-10 seconds. (A refrigerator magnet will do.) You should then be able to put the screw on the tip and gently lower it into position.

    Matt D -

    Thanks - the refrigerator magnet trick worked for me,

    Jim Allen -

    Another method for getting the front screws back in is to insert a small pair of tweezers through the DVD slot to guide the screw in. I just dropped the screw in between the tweezers which held the screw just above the hole. Then I was able to use the phillips screwdriver to guide the screw into the hole and screw it in. Done in just a few seconds.

    Another option would be to stick a dab of hot glue on the screw to your screwdriver and then when the screw has been driven home either the glue stays on the driver and is easily removed or it stays on the screw and you just pull it off with tweezers or needle nose pliers.

    accts4mjs -

    The screwdriver provided in the kit by ifixit is a magnetized screwdriver and works perfectly!

    mulkey -

    If you are disassembling your Wii because, say, a two-year-old has shovelled pennies into it (yes, that was me) you will also need to partially disassemble the drive itself, which is not covered in this guide. Luckily it's really easy. Unscrew the 4-5 larger Philips/cross head screws on the top of the frame (NOT any of the smaller darker ones) around the edges, and the frame on top of the drive will lift right off. Be careful as there is cabling running to it, so don't yank it or pull it too far off. You will now be able to get any coins or other foreign objects out.

    thepitcanary -

    I didn't have a magnetic screwdriver, so I applied a tiny amount of fabric glue to the head of each screw, waited a minute for it to start to harden, inserted my non-mag screwdriver into the screw head, and the screw stuck to the screwdriver long enough to insert it into the hole.

    Lee Crooks -

    Be advised that the posts that these screws go into are very fragile and may even break. Make sure to get the little plastic pieces out if you over tighten them or they are just brittle and broken to begin with. The screws seem to be long enough to work if you do break the posts off completely.

    Michael Payne -

    I needed a size 1 Phillips screwdriver for this step.

    julie -

    Thanks, I will include it in the guide

    Angel -

    Be careful with these screws - they seem to be quite malleable and easy to strip.

    Electronik -

  20. qfTvdHXbpHGqSfQ2

    • Hebe die Seite des DVD Laufwerks gegenüber den Controller-Ports soweit hoch, dass du an die Kabel auf der Unterseite gelangst.

    • Ziehe vorsichtig das Versorgungskabel des DVD Laufwerks unter der Kunstoffabdeckung in der Nähe des Kühlkörpers hervor.

    When reversing these steps to reassemble the Wii, at this point it is possible to do a quick test before screwing the drive to the case. This will save you a lot of time if something is wrong.

    Don't touch anything you don't have to while the case is off.

    Carefully plug the power cable into the back of the Wii, then use a screwdriver to gently press the white button next to the glowing yellow LED on the front. You should hear the DVD drive power up and whir. Then press the white button again, wait for the yellow light to come back, and unplug the Wii.

    If you didn't hear the drive start up, most likely one of the two ribbons isn't connected to the drive correctly. Doublecheck the previous 3 steps.

    Matt D -

  21. mGYaCvwpJARMNUGH

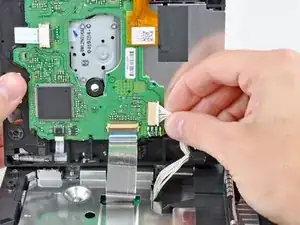

    • Ziehe den Stecker der DVD Stromversorgung vom Sockel am Laufwerk ab.

    When reversing this step, be careful re-inserting the connector. The pins are very delicate and if you aren't at the proper angle, you can bend them and ruin the drive.

    jisakoff42 -

    The exact thing happened to me just now; I reinserted it at a (very slight) angle, and bent one of the pins at the end of the socket. Luckily, I was able to straighten it back up with a sewing needle. I made sure the spacing was consistent with the rest of the pins, and that I reinserted the connector as straight as I could, so it doesn’t happen again.

    Jose Olarte III -

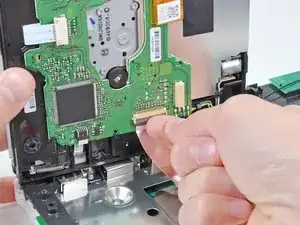

  22. bg3hTQoBKJTJst1c
    bg3hTQoBKJTJst1c
    wW2XLfVLGFKgkSyT

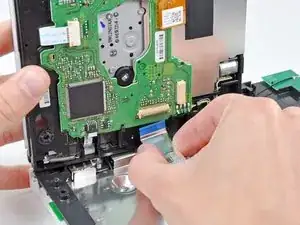

    • Klappe den Sicherungsbügel am Verbinder des Flachbandkabels zum DVD Laufwerk mit dem Fingernagel hoch.

    • Achte darauf nur den Sicherungsbügel zu bewegen, nicht den Sockel.

    • Ziehe das Flachbandkabel aus dem Sockel.

    • Entferne das DVD Laufwerk aus der Wii.

    When reversing this step, make sure the ribbon is all the way in. For some reason I found positioning it with my replacement drive was much harder than with my old drive. The gentlest tug after lowering the brown clip would show that the ribbon was not actually being held tightly. I thought for a while that the clip itself was broken, but eventually I got it to hold the ribbon correctly.

    Matt D -

    Be careful with this step. I too had difficulty re-inserting the ribbon. I even popped off the brown clip and thought I broke it. Thankfully it snapped back into place.

    Dana Kennard -

    It is difficult to tell, but be aware that the brown piece is the retaining flap, not the light piece , which is the actual socket.

    Dan Neunaber -

    I had to use Kapton tape. I couldn’t get the clip back on.

    Jim Allen -

    This was the trickiest step for me. Take note of how the ribbon is configured before you loosen the clip to help you replace it with confidence in the right way.

    Ping Wu -

    Careful! When reinstalling, I think I bent and broke the ribbon. The Wii doesn't respond upon power up - I think because it doesn't see the drive.

    Steve Bennett -

  23. 5fi2DFVMuw5MRCRn

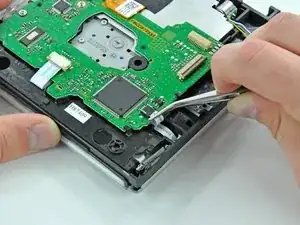

    • Ziehe mit einer Pinzette das Flachbandkabel für die DVD Erkennung gerade aus dem Verbinder.

    If you’re doing a drive swap this step in not necessary.

    netdude21 -

  24. ZatFC1FxdUVYmZ6v
    ZatFC1FxdUVYmZ6v
    U3Es4uBxyTMONR6J

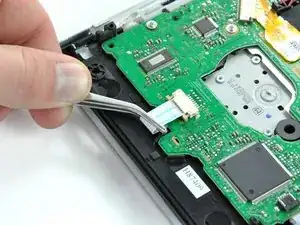

    HqrsvOqlImI5RORD

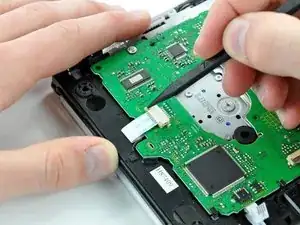

    • Drücke mit der Spudgerspitze auf beiden Seiten des ZIF Verbinders die Feststellklemme am Flachbandkabel zum Spindelmotor heraus.

    • Löse das Flachbandkabel zum Spindelmotor, indem du es mit der Pinzette gerade aus dem Verbinder herausziehst.

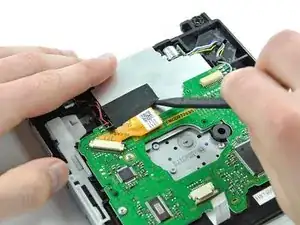

  25. BFBoVnNB2PEWfluO
    BFBoVnNB2PEWfluO

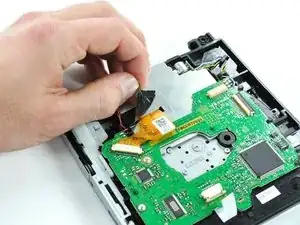

    PULHdufFPnaHOW2O

    • Entferne das Stück schwarzes Stoffklebeband, das auf einen Teil des Flachbandkabels zur Linse geklebt ist.

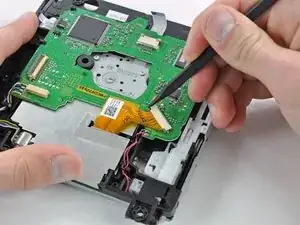

  26. gGTmOXDGFas1vsdN
    gGTmOXDGFas1vsdN
    6YhvuHbPRtNyDOkS

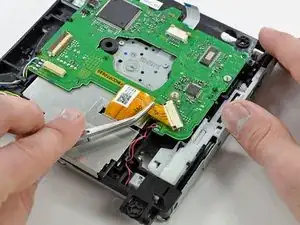

    sSTtxfN1Vwl2kPUo

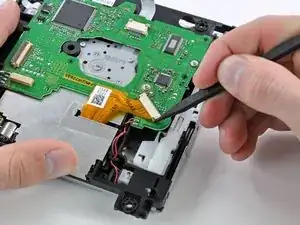

    • Löse das Flachbandkabel zur Linse. Dazu musst du zuerst die beiden Sicherungsbügel am ZIF Verbinder mit der Spudgerspitze in Richtung Flachbandkabel drücken.

    • Ziehe das Flachbandkabel der Linse mit einer Pinzette gerade aus seinem Sockel heraus.

    Re-assembly comment: After re-connecting the lens ribbon cable is a great time to remove the solder blob from the replacement lens.

    Tom -

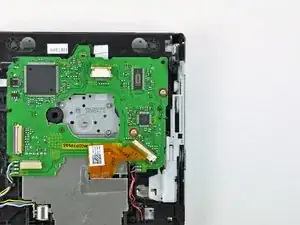

  27. Q4DFIf1F4IOxytZM

    • Entferne die beiden 5,0 mm Kreuzschlitzschrauben, welche die Platine des DVD Laufwerks am Gehäuse des Laufwerks befestigen.

  28. cJXoy3vtWSelDScK
    cJXoy3vtWSelDScK

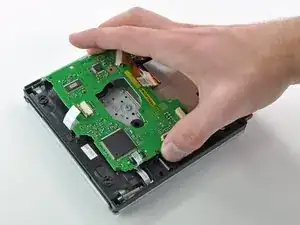

    En1RBsVIoNP6qlrM
    UNPbi5siKhnbGPt3

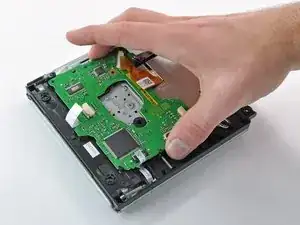

    • Hebe die Platine des DVD Laufwerks weg vom Gehäuse. Hebe zuerst auf der Seite mit dem Verbinder am Flachbandkabel zur Linse.

    • Ziehe die gegenüber liegende Seite der Platine gerade heraus, während du gleichzeitig die ganze Platine hochhebst und sie dabei aus den kleinen schwarzen Plastiklaschen, die sie festhalten, löst.

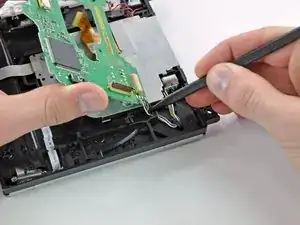

  29. gdhVVefsSsc3LDrs

    • Fädle mit der Spudgerspitze die Kabel, welche an der Platine des DVD Laufwerks festgelötet sind unter den schwarzen Plastiklaschen heraus.

    I found it was easiest to unwind red and brown first and then white, blue, gray, yellow.

    Carol -

    I found this was easiest one wire at a time

    Tom -

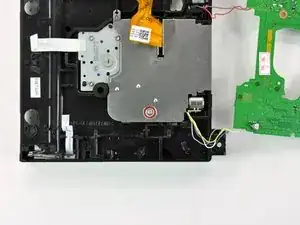

  30. JlFJO2wE3ariTYw4

    • Lege die Platine des DVD Laufwerks so neben das DVD Laufwerk, dass die Kabel, die an ihr festgelötet sind, aus dem Weg sind. (so wie im Bild gezeigt)

    • Entferne die einzelne 5,0 mm Kreuzschlitzschraube an der Abschirmung der DVD Linse.

  31. IKAwFXEjgTRQdVfo
    IKAwFXEjgTRQdVfo
    DBVe3WmLxGFgMaDR

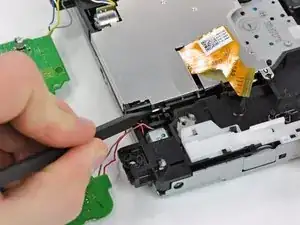

    jmIkVbbuisfnqJ2A

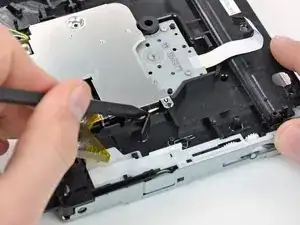

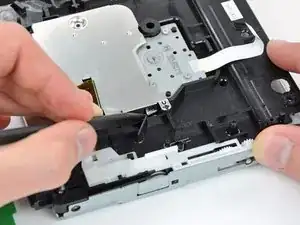

    • Auf der Seite der Abschirmung mit dem Schlitz für das Flachbandkabel zur Linse gibt es zwei Metalllaschen, die sich in zwei schwarze Rasten am Laufwerksgehäuse einklinken.

    • Biege die beiden Laschen mit der Spudgerspitze soweit hoch, dass sie frei von den Rasten sind.

    • Die Abschirmung besteht aus weichem formbaren Metallblech. Es lässt sich leicht biegen und wieder zurückbiegen, wenn dies jedoch zu oft geschieht, können die Laschen abbrechen.

    • Achte beim Zusammenbau darauf, dass die beiden Laschen richtig einrasten.

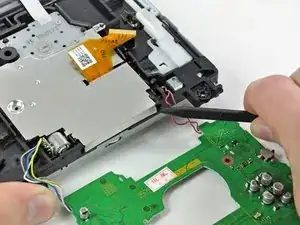

  32. KKSQPra3DFXMDsm3

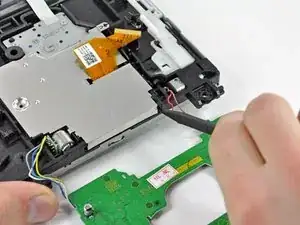

    KKSQPra3DFXMDsm3
    64r3D5MnVh1rRPhS

    • Zwei kleine Laschen am Abschirmblech greifen in entsprechende Löcher an der Außenkante des Gehäuses des DVD Laufwerks.

    • Setze die Spudgerspitze in das Loch ein, welches sich in der Nähe der rosa und roten Kabel befindet, das zur Platine des DVD Laufwerks läuft.

    • Verdrehe den Spudger und hebele so die erste Lasche aus dem DVD Gehäuse.

    Regarding Step 32 and 33 - I did this a little differently, and didn't need to bend (plastic deformation) the tin. Complete Step 31, but instead of 'bending' the clips, you release them and pop the tin up over the plastic 'barb' to release the EMI shield. Then, then repeat Step 31 (popping the tin clips off of the barb) for the two tabs on the opposite side (screw side) of the EMI shield. The EMI shield can then be withdrawn, e.g. released to the bottom of the picture in steps 32 and 33, without bending the tin as advised in step 32 and 33. The only mildly tricky part was releasing the clip from the barb near the (blue/yellow/grey/white) wires connecting the laser stepping motor - I used a fine flat screwdriver.

    dyanetti -

    Agree with dyanetti; the two end tabs in step 32-33 are not intended to be bent. Should release all four of the clips on the sides of the plate first, then it will rotate up and the end pins will just slide out (and in when reversing the process for reassembly).

    If you take the top off the dvd drive, these tabs are easy to unlatch from the other side.

    ChrisV -

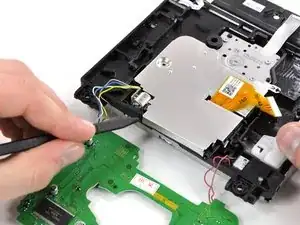

  33. prWSkqhNBERYnBt3
    prWSkqhNBERYnBt3
    H5P2rDX2wwywebmp

    • Wiederhole dieses Verfahren und löse auch die zweite Lasche am EMI Abschirmblech aus ihrem Loch auf dem Gehäuse des DVD Laufwerks.

    • Halte die gegenüber liegende Kante des Abschirmbleches fest, damit sie nicht wieder einrasten kann.

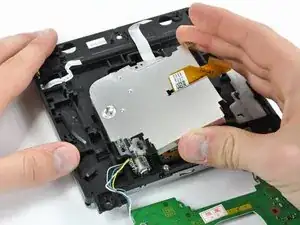

  34. dOVSnSCDZJxuwapR

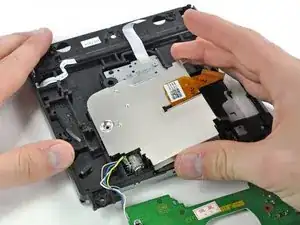

    dOVSnSCDZJxuwapR
    ONSxPLagd2jjmvHs

    • Fasse das Abschirmblech an den beiden freien Kanten an. Verdrehe das ganze Teil leicht in Richtung der Kante, die noch fest sitzt. So lösen sich auch noch die beiden letzten Laschen.

    • Hebe das Abschirmblech weg vom DVD Laufwerk.

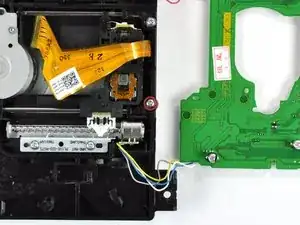

  35. ZPTN6HMYRYTZeiDi

    • Entferne die 5,0 mm Kreuzschlitzschraube in der Nähe der gelben, blauen, weißen und grauen Kabel.

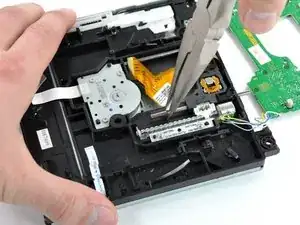

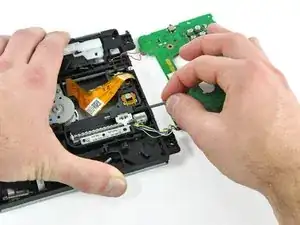

  36. lNMMbZFGiTe2MuJD
    lNMMbZFGiTe2MuJD
    BZfmij2wXKWpSHul
    1sQmTpTFijQhAe3r

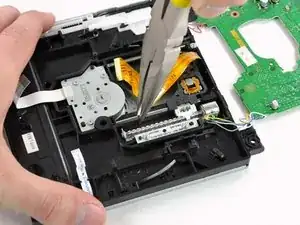

    • Halte das DVD Laufwerk mit einer Hand fest und greife den Haltestift der Linse (in der Nähe der eben entfernten Schraube) mit einer Spitzzange.

    • Schiebe den Haltestift heraus in Richtung Außenkante des DVD Gehäuses.

    • Das Herausschieben geht zunächst schwer, wird dann aber ganz leicht.

    • Sobald er sich leicht schieben lässt, kannst du den Stift mit den Fingern ganz aus dem Gehäuse des DVD Laufwerks herausziehen.

    There is a small piece of black plastic next to the last screw which was removed. Lifting this up a millimeter or two will release the retaining pin so that it can be moved out easily.

    FRAC -

    What to do when these Clips Break?

    Marco Bienert (RodneyMcKay) -

    It's important not to scratch this rod with the pliers. I would use fingertips or plastic tweezers for this step, or wrap the needlenose pliers with tape first.

    ChrisV -

    Careful! It’s so easy to break that black plastic piece. Notice that it’s only connected at one end and hinges very easily causing a stress fracture. Whether you lift it from the side or go in through the end hole, minimize the number of times you hinge it.

    I found that vinyl tape-wrapped bent-nose pliers worked well to grip the rod.

    Brian -

  37. QYwQryKMu5AtfWZC
    QYwQryKMu5AtfWZC

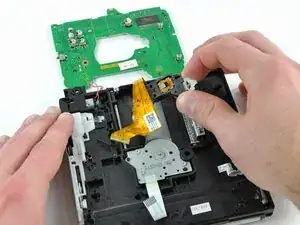

    XHKMcSYQZEcREwG2

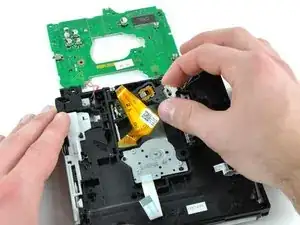

    • Fasse die DVD Linseneinheit von der Seite an, wo du eben den Stift entfernt hast.

    • Entferne die Linseneinheit aus dem DVD Laufwerk.

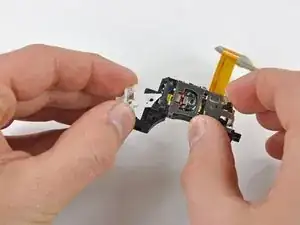

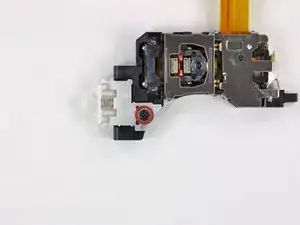

  38. TypuAiPy2u66PIaN
    TypuAiPy2u66PIaN
    pacLxrP63ZtMuXiN

    • Entferne die 4,2 mm Kreuzschlitzschraube, welche die weiße Kunststoffhalterung an der Linseneinheit befestigt.

    • Hebe die Halterung weg von der Linseneinheit.

    • Wenn du eine neue Linse einbauen willst, musst du die weiße Halterung und die Schraube auf die neue Linse übertragen.

    May need an additional step when replacing with a new laser sled assembly: The new one will have a solder blob across two signals for esd protection; this must be removed after the new laser is installed, otherwise it will be completely unable to read the disk.

    ChrisV -

    agree with Chris V you have to de-solder the solder dot on ribbon just make a straight vertical line compare it to the replacement laser this should be step 39 because if you don't do this the laser lens will not be able to read properly

    keytechllc -

    Had the same issue. I wasted a couple hours troubleshooting the new laser before figuring out that I needed to de-solder the solder blob shorting the 2 signal lines.

    Christopher Daun -

    Any tips on removing the screw from the white plastic bracket that needs to connect to the new part? It is not loosening on the old one at all. New mini-philips on order to see if they will fit better and hold but I don't think this is going to come free. Does anyone know where a new white plastic bracket can be ordered?

    eljuline -

    Correctly sized philips was all it took. Came off right away. So all set to put it back together tonight.

    eljuline -

    Does the author cares about comments or not? The guide is missing one fundamental step that has been already pointed out by the comments from 4 years ago!!

    Marco Bo -

    I too wasted time with this repair until I saw these comments. Completely reassembled, tested, then repeated the whole process again to check all the connections. When I finally found these comments I attempted to remove the solder but ended up with a flakey - partially working wii. I assume I damaged the ribbon cable in the process.

    Ultimately I spent another $20 and bought a new DVD unit ($5 more than the replacement lens) and has my wii working in 15 minutes. I wish I had seen these notes first - I wouldn’t have wasted my time trying to replace the lens. Please, please, please update this guide and save the community a lot of trouble!

    David Begleiter -

    Does anyone know where too by white plastic bracket thing

    Hassan Farooqi -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

David Hodson

Mitglied seit: 14/04/10

148365 Reputation

25 Kommentare

Many thanks for the excellent guide - my wii is working again!

Niel Viljoen -

WOW! I have seen a lot of repair manuals and guides, and this has to be one of the best!

Appreciate the care and craftsmanship it took to put this together.

One suggestion: Please add pics of the screws with specs to compare the sizes.

Terry -

very informative...if the laser is dirty or the lens is broken....will the tray from the drive come out and go inside...as normal ....please assist...

Techy -

All went well. The main problem I had was tweezers of low quality. Also, during assembly, some screws was to tricky, so I needed to magnetize screwdriver and for that purpose I used - a speaker :)

Great tutorial, in deed. David just saved Christmas for me and my family.

Dragan -

This is one of the best set of instructions I have ever used. Easy to follow steps with accurate illustrations. Very well done, I don't know how you could make it any better! A++,

camoore4800 -

Me too. After solder blob removed, my Wii was able to read GameCube disks and most of my Wii disks.

debrota -

Me too. After solder blob removed, my Wii was able to read my GameCube disks and most of my Wii disks.

debrota -

Me too. After solder blob removed, my Wii was able to read my GameCube and most of my Wii disks.

debrota -

Very useful and detailed.

John Rosenberger -

Dare I try this on my own?

Simon Clark -

Hola el lente de mi wii no intenta leer, al introducir un dvd el lente da un golpe y luego tres golpes mas, no suena como si intentara leer el disco, de echo tampoco se oye girar al disco, Quisiera saber si este problema es por el laser dañado o si se daño el motor que hace girar el dvd. Mi correo es david19_4@hotmail.com si pudiera ayudarme le agradeceria, puede responderme en ingles yo puedo traducirlo. Gracias

david19_4 -

i tried this ix but as i was doing it i flipped the drive over and a small metal clip fell out and cant find where it has to go back in???

can anyone help please?

thanks in advance

dany -

★☆★ Top Marks ★☆★ for a well thought out and fantastically illustrated procedure.

My 7 year old son and I worked as a team and it worked like a dream.

The only thing is, that we didn’t originally desolder the bridge on the new lens cable, so we had to work back through to step 22. However, this only took us 20 minutes extra :)

Many, many thanks to Mark and your 7 contributors. ★☆★ Nice Work ★☆★

Ted George -

This is one of the most detail oriented tutorial I’ve ever seen. On Step 11, the screws were also color coded to avoid confusion. Great work!

I was able to follow this tutorial and replace the lens module with ease. The Wii system is now able to read the DVDs. Now, however, I have an issue. The Wii console is making a huge din after the replacement. Does anyone this issue? What do I need to do to fix the issue?

Thanks again for a great tutorial!

affansayed -

How can I tell if my lens is broken and if it’s in a bad (reversible) condition?

Micah Hobson -

My two year old stuck playing cards into the disc slot causing no disc to be read. I purchased the Apollo Precision Tool Kit for Phone and Computer Repair, it contained everything I needed to get the job done. I only had to complete through step 19 to push the cards out. Took about 2 hours to complete the project.

Noone Particular -

This was a really good guide, I got my Wii working again and I am happy.

Sara Zielinski -

Thank you so much!

John -

Best disassembly instructions ever!!!

terry.huberts -

Thanks for the great instructions, we had no problems getting our Wii working again!

Peter Krystad -

nach einbau des neuen laser geht es immer nocht,immer noch die selbe fehlermeldung disk kann nicht gelesen werden

Marco Ott -

This is an excellent guide. Thanks for putting it together!

Scott Carter -

This was great, thanks! But I did have to look up elsewhere how to desolder the static point on the new laser assembly which I learned about in several videos I watched to get an idea of what I was getting into before I started.

Holly S -

this is a lifesaver for my wii!

Cameron Smith -

will try this when I get the materials that I need. But so far, this looks pretty promising.

Andrew Burley -
