Nite Ize Inova Microlight Casing Replacement

Geschrieben von: Jennifer Tabadero
  • Kommentare: 1
Nite Ize Inova Microlight Casing Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

1 - 5 Minuten

Einleitung

Use this guide to change the case of a microlight.

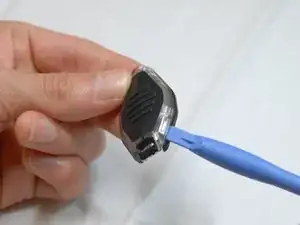

  1. emDDKuXlp6p2FnZG
    emDDKuXlp6p2FnZG
    KWwNf1NpuhqVE1uC

    • Insert the plastic opening tool into the seam of the device.

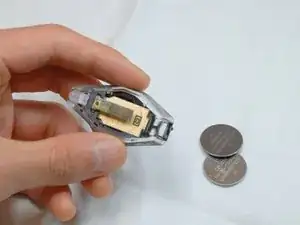

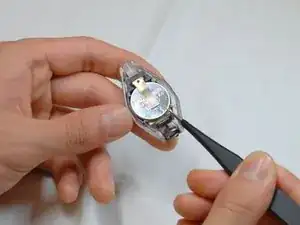

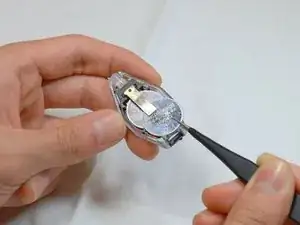

  2. QZJS4Ud4UE5sFMBS
    QZJS4Ud4UE5sFMBS
    tvl1kDvlNSZGGDJO
    lJSyEfvsS6xWIfUG

    • Squeeze the top battery using a tweezer and pull the battery away from the light bulb.

    • Repeat this step for the bottom remaining battery.

    • Do not pull up on the battery as this will bend the metal contact.

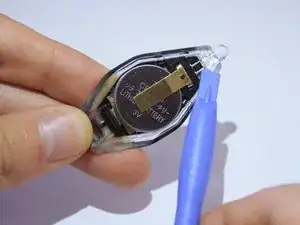

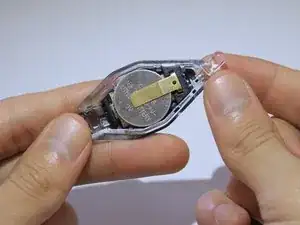

  3. xsHRT5gSbXXr3SiD
    xsHRT5gSbXXr3SiD
    Euj3jTiskXVOPQUb
    XbnpvnItavHVjobN

    • Place the plastic opening tool below the LED lamp and push away from the device until you hear a click.

    • Continue to remove the LED lamp the with your fingers.

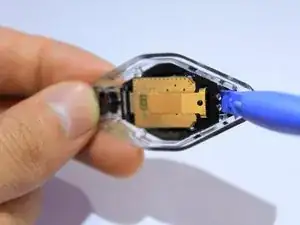

  4. rJ36LrEY5IGuRBRq

    • Place the plastic opening tool behind the logic board and bend away from the casing

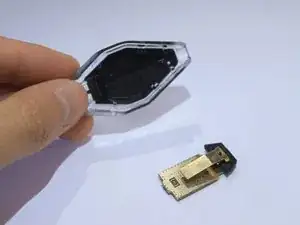

  5. DvCSr3NyRp25VXIq

    • The logic board will pop out with ease.

Abschluss

To reassemble your device, follow these instructions in reverse order.
