Nixon Mission Android Wear Battery Replacement

Geschrieben von: Mauricio Ambrosio
  • Kommentare: 18
Nixon Mission Android Wear Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

Batteries tend to lose capacity over time. This guide will show you how to replace the battery of your Nixon Mission Android Wear.

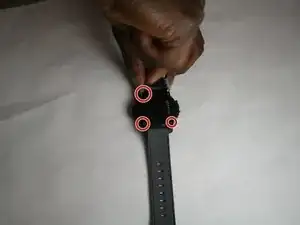

  1. NejNnrNQODxLTW5R

    • Remove 4 4.5mm Phillips head screws from back side of watch using PH00 Phillips head.

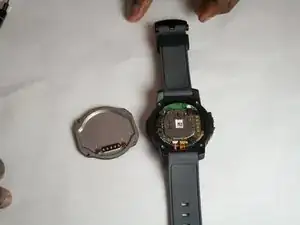

  2. maND6bZDAMfIjsYc

    • Remove the back plate of watch.

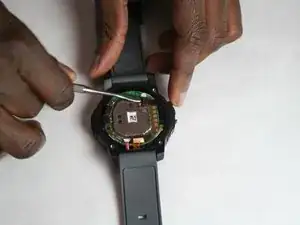

  3. CVvd3RLduTQSpTAZ

    • Unclip 5 latches from motherboard using a plastic spudger.

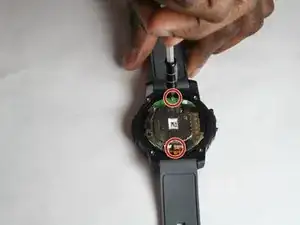

  4. HDXdCtnTnuxOULO6

    • Remove the 2 3.0mm screws from motherboard using PH00 Phillips head.

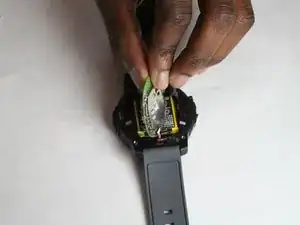

  5. AvWBGesE6FS2tRSK

    • Carefully remove motherboard & internal screen.

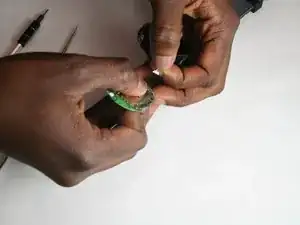

  6. jifnZnpVSDrUcfmS

    • Remove from the motherboard the connector with the four cables.

    • Pull the cables upward and the motherboard downward as shown in the picture.

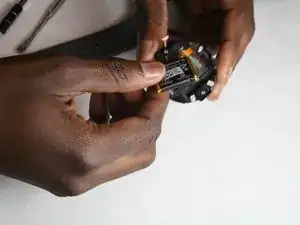

  7. PeSPUUxWXbNmFeLw

    • Carefully remove the battery from the watch.

    Good morning, my on my nixon mission the oring is not good, water inside. My email is Miguelrom1@icloud.com

    miguel romero -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mauricio Ambrosio

Mitglied seit: 07/11/17

191 Reputation

17 Kommentare

Hi, would you be able to advise where to purchase a replacement battery?

Simon Seow -

same here, where to purchase a replacement battery ?

peter.erdogyaraki -

Thank you for your tuto.

But now, where I can purchase a new battery?

Thank you

COUTURIER -

Hi! Anyone knows where to buy a new battery?

cristian.carvelli -

After an extensive search there doesn't seem to be any info out there about battery size…..still

Jerry Jerry J -

Nice presentation, Thanks. I am looking for a replacement battery as well. Can anyone provide closeup images of both sides of the battery so we can try to track down a replacement? I don’t want to crack my watch open until I have the right battery!

Frank Vitz -

Hi, I search a new battery too and i don’t find it ! If someone have answer that would be great!

Gras Valentin -

The battery is Model : APP00169 or APP00192 made by Apack (http://www.apack.com.tw/index.php ) 3.8Vdc

You can buy it on Ebay but I don’t have find it on the website!

Hope it help you guys!

Gras Valentin -

The battery size is 48mm 27mm 27mm and the capacity is 400mah. I’m trying to find a place to buy a new one but all of them cames with 2 wires and this connector has 4

cristian.carvelli -

Hello

I cant find in ebay the battery, some one have other part number please?thanks

Nicolas Gringaus -

I bought my replacement 162 from Aliexpress. I think the 192 is made exclusively for Nixon repair replacement only, and not available outside Nixon. They quoted over $100AUD for replacement!

APP00169 (https://www.aliexpress.com/item/10050015...)

the wiring is the opposite way around, so have to flip the battery with installation

Kabunka Ferreira -

Hello, what the installation easy with the replacement battery (AP00162) & how is that battery performance working out so far?

Thanks

SG2000 -

I only found a apack app00169 , I hope it works for nixon mission

angelosurfer -

The apak app00169 It works?My dear friend ,Tha la very mucho

angelosurfer -

Ordered to app00169. Fits well and powered it but couldn't charge it. When I connect the charger it vibrates to charge but then doesn't and just loops.

Any ideas?

Max Messenger -

According to a previous post, the wiring on the replacement battery is the wrong way around? Have you tried reversing the wires?

Steve Tousignant -

anyone found a source of battery for the mission watch with 4 wires? Would a 2 wire one work?

duncb -
