Nixon Mission Android Wear Front Screen Replacement

Geschrieben von: Venkata
  • Kommentare: 2
Nixon Mission Android Wear Front Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

  1. L5OWfEGq4fWIRBRq

    • Remove 4 4.5mm Phillips head screws from back side of watch using PH00 Phillips head.

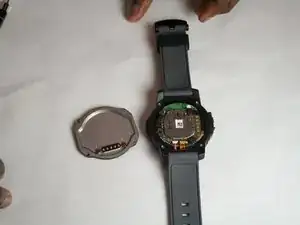

  2. 6UGJTWpKQburEIFx

    • Remove the back plate of watch.

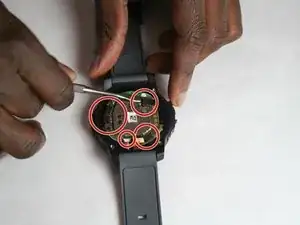

  3. uvWQ1S5s1hnCZIsN

    • Unclip 5 latches from motherboard using a spudger.

  4. jFuo5r5JjDZGlRvn

    • Remove 2 3.0mm Phillips screws from motherboard using PH00 Phillips head.

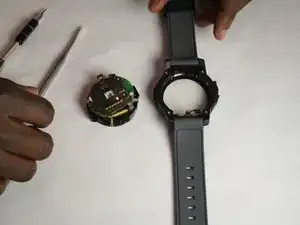

  5. mtxbIh46NOYZyDyL

    • Carefully remove motherboard & internal screen.

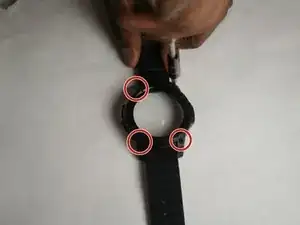

  6. hIsBKfgaVXYKwgSN

    • Remove 4 7.0mm hex-screws from front of watch using H1.5 Hex head.

  7. ZJVIf22HewdVNfRB

    • Remove outer screen frame from front of watch.

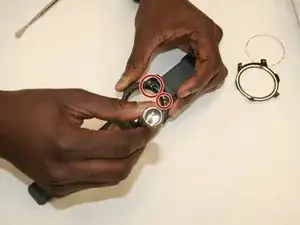

  8. eUcyw6LKKyGVoZSI

    • Remove 4 4.5mm Phillips gold screws from back of watch using PH00 Phillips head.

  9. kgsSy2Ki1g3rJWRG

    • Remove outer protective screen.

    • Replace outer protective screen with the new part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
