Nokero N222-Huron Colored Lens Replacement

Geschrieben von: Vinny Capone
  • Kommentare: 0
Nokero N222-Huron Colored Lens Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

Follow this guide to replace or change the colored lens inside of your Nokero N222-Huron in order to adapt the solar light to various situations.

  1. 4yWnPk5XSdSUiSKK

    • Grasp the clear cover and the white housing and twist the cover counter-clockwise.

    • The lid may hold fast, but it will come off with some firm twisting.

  2. LdtNhVRWOZILqUOg

    • Lift the lid from the device

    • It may be helpful to use a spudger to pry under the lid if there is difficulty in getting a good grip on the smooth plastic.

  3. W6AcFOS3rHOpZWMT
    W6AcFOS3rHOpZWMT
    AWuhxjYIwOr16BE6
    k2xCae4gfRZYMYWy

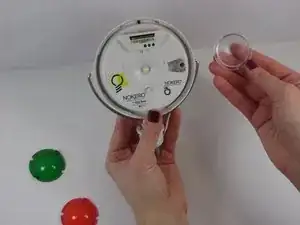

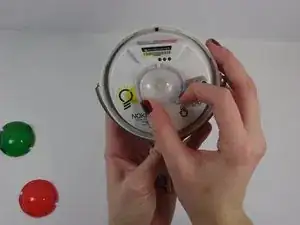

    • Turn the lens until the slots line up with the retaining clips on the device.

    • Lift the lens off of the device. It should come off easily.

  4. nZblRSrp1XRNO5RN
    nZblRSrp1XRNO5RN
    pE5V5POtMXYOxJMr

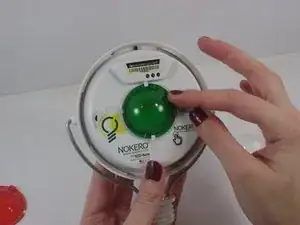

    • When reinstalling the lends, line up the slots of the new lens with the retaining clips, and rotate the lens counter-clockwise.

    • You will hear an audible click when the lens is locked in place.

Abschluss

To reassemble your device, follow the instructions for the first two steps in reverse order.
