Nokero N222-Huron O-Ring Replacement

Geschrieben von: Vinny Capone
  • Kommentare: 0
Nokero N222-Huron O-Ring Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Keeping your device water-proof is paramount in using it to its full potential. Follow this guide to replace the water-proofing O-ring.

Werkzeuge

  1. 4yWnPk5XSdSUiSKK

    • Grasp the clear cover and the white housing and twist the cover counter-clockwise.

    • The lid may hold fast, but it will come off with some firm twisting.

  2. LdtNhVRWOZILqUOg

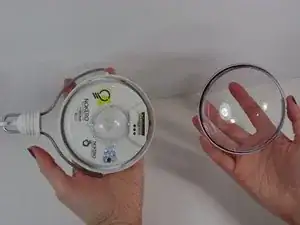

    • Lift the lid from the device

    • It may be helpful to use a spudger to pry under the lid if there is difficulty in getting a good grip on the smooth plastic.

  3. 5sDHb4Kjnu6RUZo4
    5sDHb4Kjnu6RUZo4
    C6YXCqQhayD1SU1P
    FxmSTXUEPwx3GOsq

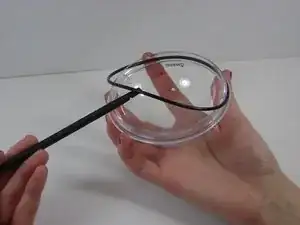

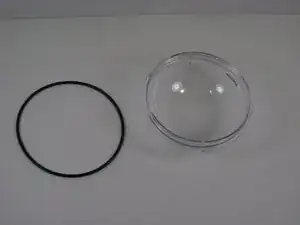

    • Using a plastic spudger, lift the o-ring from the lid

  4. GT3euJ6FKakBy55e

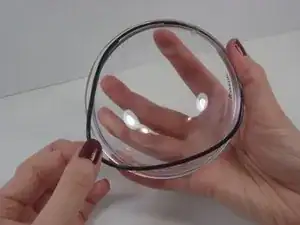

    • Gently stretch the new O-ring and place it in position on the clear cover. Make sure it is flush with the flange and not interfering with the locking threads

Abschluss

To reassemble your device, follow these instructions in reverse order.
