Nokero N400 Suction Cup Replacement

Geschrieben von: Daniel Bumiller
  • Kommentare: 0
Nokero N400 Suction Cup Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

If the suction cup no longer sticks to surfaces or if the plastic has split, you will need to replace the suction cup with a new one.

Werkzeuge

Ersatzteile

  1. ZffJCUEtjKlsnxYD
    ZffJCUEtjKlsnxYD
    ZPtYmlruQIkEj1ZJ
    Jbpa2RCW2s6VAl3T

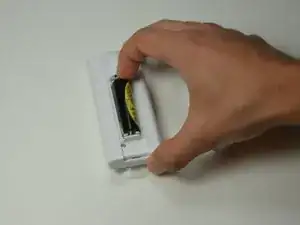

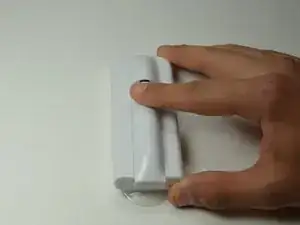

    • Press down firmly to remove the battery cover and display battery.

    • Then remove the battery.

  2. 5GCpBDY2gtLIHbPc
    5GCpBDY2gtLIHbPc
    k5FxGHrYDAjkPcAl

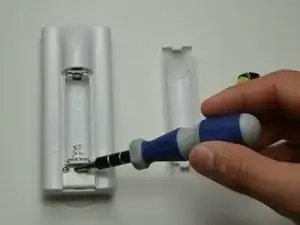

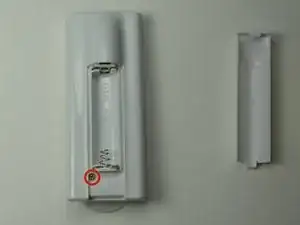

    • Remove the 7mm Phillips #1 screw.

  3. ApXtUE4BbwUpAleR
    ApXtUE4BbwUpAleR
    mHVDGYLkiBB3nAZm

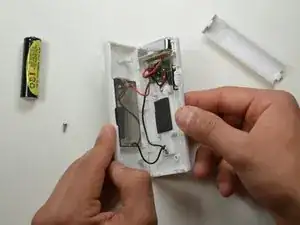

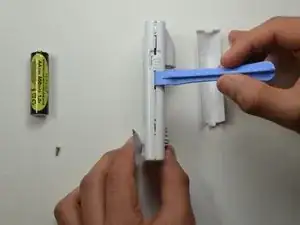

    • Place the plastic opening tool in between the two plastic panels and slowly work your way around the device.

    • Unlatch the clips on the inside and pull device apart.

    • Some clips will break when forced open.

  4. O33ViAplYePBZtQZ
    O33ViAplYePBZtQZ
    T6BPmPloL255XtNf

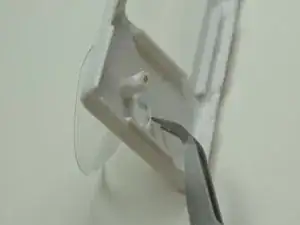

    • Using tweezers, push the edges of the back end of the suction cup inward.

  5. kTJ6mFHNgBwWTI5L
    kTJ6mFHNgBwWTI5L
    FaBr5RlRdy3R25tp

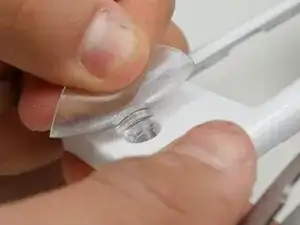

    • Flip the cover over and remove the suction cup by pulling at an angle.

    • Be careful not to tear the plastic housing.

    • During reassembly, make sure to press down uniformly on the suction cup for an even fit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
