Nokero N400 Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If pushing the power switch up to the on direction, you may need to use this guide to replace the power switch.

  1. ZffJCUEtjKlsnxYD
    ZffJCUEtjKlsnxYD
    ZPtYmlruQIkEj1ZJ
    Jbpa2RCW2s6VAl3T

    • Press down firmly to remove the battery cover and display battery.

    • Then remove the battery.

  2. 5GCpBDY2gtLIHbPc
    5GCpBDY2gtLIHbPc
    k5FxGHrYDAjkPcAl

    • Remove the 7mm Phillips #1 screw.

  3. ApXtUE4BbwUpAleR
    ApXtUE4BbwUpAleR
    mHVDGYLkiBB3nAZm

    • Place the plastic opening tool in between the two plastic panels and slowly work your way around the device.

    • Unlatch the clips on the inside and pull device apart.

    • Some clips will break when forced open.

  4. sRwSXYPD1wEYPcZp

    • Using a spudger carefully pry switch from housing.

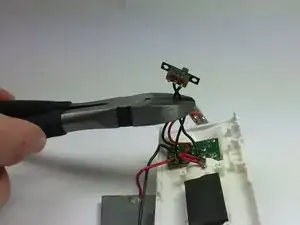

  5. nftgClaFNHoXFEQR

    • Use wire cutters to cut the two black wires attached to the old switch.

    • You must use a splicer or a soldering gun to reattach the wires of the new switch.

    • If you splice the new switch wires together in the opposite order of the old switch wires, the new switch will still work.

Abschluss

To reassemble your device, follow these instructions in reverse order.
