Nokero SunRay Pro Power Panel Capacitor Replacement

Geschrieben von: Nicholas Orr
  • Kommentare: 0
Nokero SunRay Pro Power Panel Capacitor Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Not being able to charge your device may mean you have a bad capacitor. Follow these simple steps to get yours replaced.

  1. kISQlDUTpeYK6o6K

    • Turn over the device so that the back of the device is facing up.

  2. N3rDMCDjgdWi4OHP
    N3rDMCDjgdWi4OHP
    WKxcjV1U62LlvuF1
    Uhrb2ZlEXeo6WT4E

    • Insert the first plastic opening tool along the side to pry open the case.

    • Sliding the plastic opening tool, while inserted, along the seam may help the removal process.

    • Use a second plastic opening tool to help separate the remaining seams.

  3. g3KxPIHIyIS6EW4k
    g3KxPIHIyIS6EW4k
    mEtnUHEdUsLVPmFV

    • There is a long strip of double sided adhesive foam tape that prevents the back case from easily being removed.

    • Pull the back case off by applying steady pressure to remove it from the adhesive foam tape.

  4. HIpvhWIZG1QlVfeM
    HIpvhWIZG1QlVfeM
    MIqRIBM54Cq3th5G

    • Use the Phillips precision screwdriver to unscrew the two 5.0 mm Phillips screws from the circuit board.

    • Remove the solar panel and circuit board from the front case.

  5. VBSiQbTe1F4DVHOu

    • Use the soldering station to desolder the two contact points around the connections of the capacitor to loosen the metal.

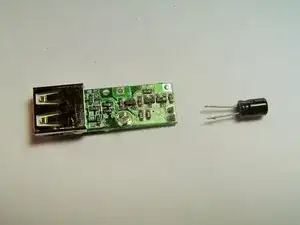

  6. AgTFL1dLSRrBAQJE

    • Pull the capacitor through the circuit board to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
