Einleitung
This guide will show you step by step how to access the speaker. If your speaker is no longer working this guide can help you to replace the speaker. Additionally this guide can help you to access the speaker to make sure that the speaker is connected properly.
Werkzeuge
-
-
Insert the prying tool in the notch above the battery.
-
Once the prying tool is inserted, lift up the battery.
-
-
-
Starting from the bottom of the phone, begin prying around the base of the phone alternating form left to right.
-
-
-
As the base loosens, slowly increase the separation between the plates and the body of the phone.
-
-
-

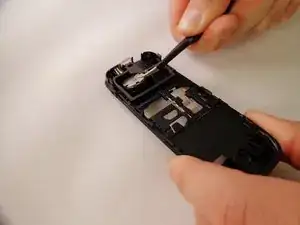

Using the spudger, pry back three tabs located on the left edge and three tabs located on the right edge of the body.
-
To reassemble your device, follow these instructions in reverse order.
