Nokia 1100b RH-36 Speaker Replacement

Flip the phone over so that the screen faces down.

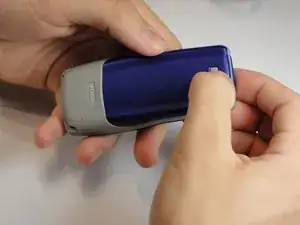

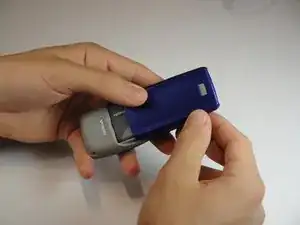

Press the gray button on the battery cover and slide it down off the back of the phone.

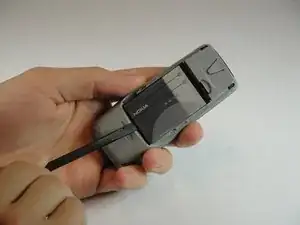

Wedge the flat end of the spudger into the small indent next to the Nokia logo on the battery.

Gently pry the battery out of the phone.

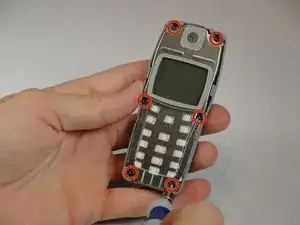

Remove the six 6mm T6 Torx screws around the edge of the front of the phone.

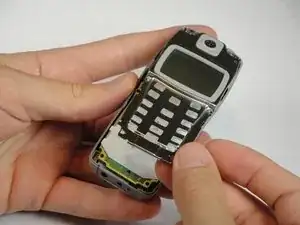

Remove the metal frame holding the screen and speaker.

Flip over the metal frame you just removed.

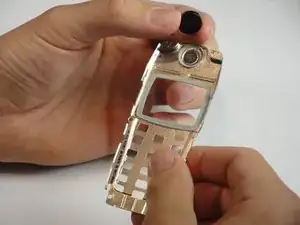

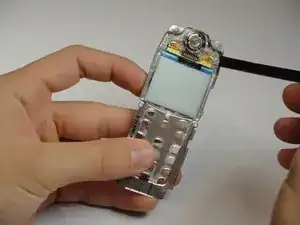

Using the flat end of the spudger, pry apart the inner clear plastic frame with screen attached from the metal frame.

Remove the screen bearing plastic frame.

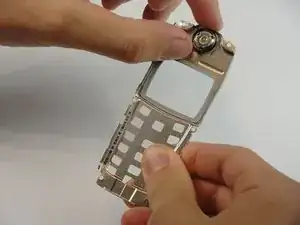

Gently remove the speaker from the top of the metal frame.
