Einleitung
To replace the keypad, only a small amount of disassembly is required.
Werkzeuge
-
-

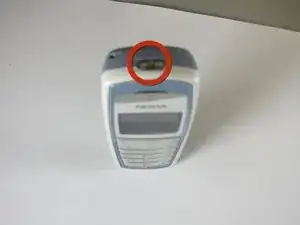

Press down on the small gray button located on the back of the phone.
-
Slide the back plate down and off.
-
-
-

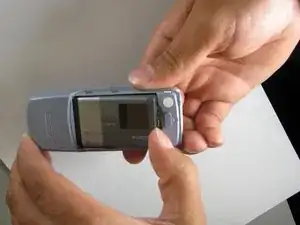

To remove the battery, begin by holding the phone sideways.
-
Then, insert your thumb in the groove below the battery and push the battery up and out.
-
-
-

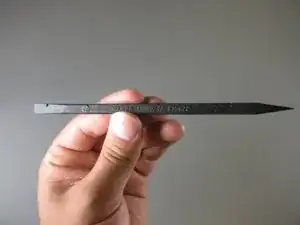

Locate the spudger. A photo of the correct spudger is provided to the left.
-
Turn the front of the phone to face you. Find the two small square holes on the bottom left and right sides of the faceplate.
-

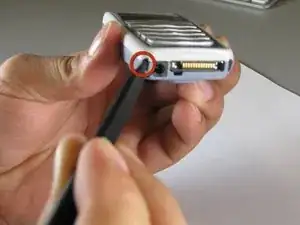

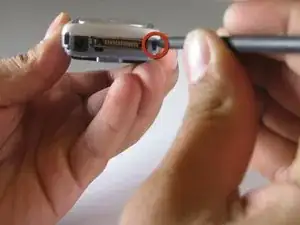

Insert the spudger into each square hole and push up to detach the face plate.
-
-
-
Note: The keypad will be loose and may fall off during this step.
-

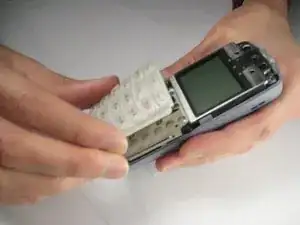

Pull the face plate up and off of the phone.
-

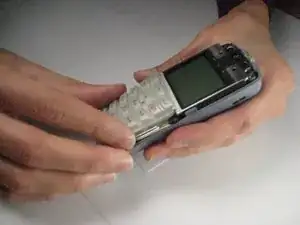

To remove the keypad, simply lift it off the phone.
-
To reassemble your device, follow these instructions in reverse order.
