Nokia 2128i Internal Clock Battery Replacement

Be sure cell phone is off before you begin to disassemble the phone.

Press the button on the bottom of the back of the cell phone.

Slide rear panel down and remove it.

Using your fingernail, pry the back of the battery upwards and pull out.

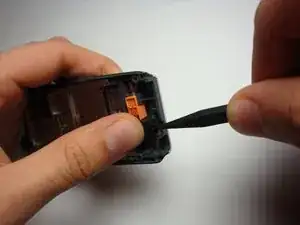

Insert the plastic opening tool under the faceplate.

Separate the faceplate from main body by twisting the prying tool with some force.

The faceplate is held by three plastic fasteners, so pry evenly on both sides of phone.

With the faceplate removed, simply peel off rubber key pad and remove.

Locate and remove the six screws on the front of the phone using a T6 Torx.

All 6 screws are 6.9mm long.

After removing screws, lift the motherboard assembly straight off the cell phone body.

With the logic board completely removed, gently pry out the internal clock battery from its housing.
