Nokia 3120 Liquid Crystal Display (LCD) Replacement

Remove the back cover plate of the phone. To do this press down the lock as you slide the cover toward the bottom of the phone.

Once the back cover plate is removed, the battery should be exposed. Remove the battery by prying it out. This can be done with your finger-nail or a prying tool.

Using your fingernails or another tool, pry the front face plate out along its edges and corners.

Once the cover plate has been removed, the keypad should easily pop out.

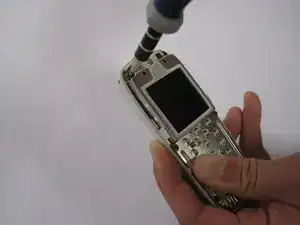

Using a screwdriver, remove the 6, 7 mm Torx-head screws on the front of the phone.

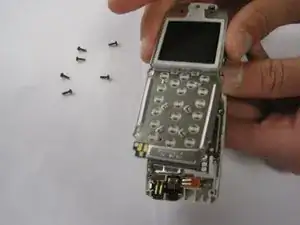

Once the screws have been removed, the front plate of the phone should be removed, exposing the inside electronic components of the phone.

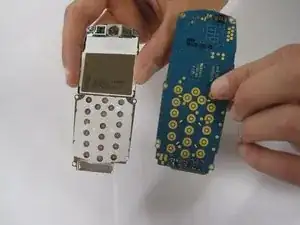

Take out the cell phone electronic board

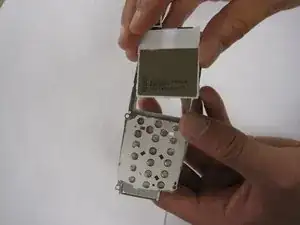

The LCD screen can now be removed from the body of the phone.
