Einleitung

If the frame of your Nokia 3310 3G is cracked or damaged, this guide will help you replace it.

  1. OiQVUmSITcvDkWWf
    OiQVUmSITcvDkWWf
    1PJAvRJfnWYeX2uD

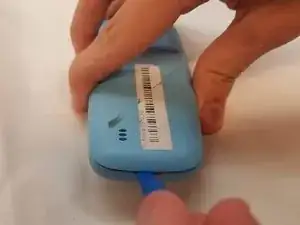

    • Using the thumbtab molded on the bottom of the phone, pry the back cover off using either a fingernail or a plastic opening tool.

  2. 1XCCmUIKNxKkDbsr
    1XCCmUIKNxKkDbsr
    OqsbKGTqsOVCUyFq
    • There is a molded notch in the white frame of the phone near the top right of the battery. Using either a finger or a plastic opening tool, utilize the notch to lift up on the battery, and remove it from the device.

    • This specific device did not come with a battery.

  3. L2u4FbjM6GVoY5fC
    L2u4FbjM6GVoY5fC
    bxTL4dfCD13lfJFu
    MZHnTsiPm2vj1AGd

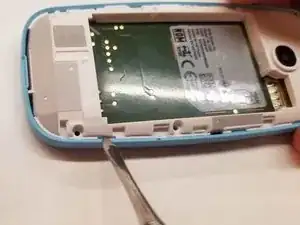

    • Using a T5 screwdriver bit, remove the (6) 5.0 mm screws along the outside edge of the frame.

    • Using a metal spudger, wedge the 6 plastic tabs molded into the outer shell away from the frame to lift up and remove it.

  4. WETsXABCLs3fpseS
    WETsXABCLs3fpseS
    HTJWCeoRithMGCcV
    P13IvHrxQnKWmUqL

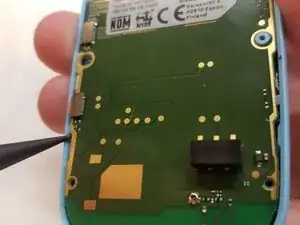

    • Use a spudger to simultaneously leverage the shell away and the motherboard up from the body of the shell.

  5. FnEY1dbhmkNDJlyQ
    FnEY1dbhmkNDJlyQ
    NhhWbBnPpYIypTWR

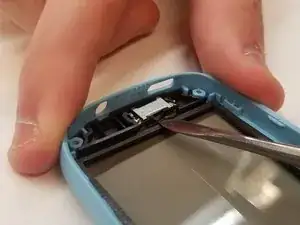

    • Using a metal spudger, lodge the tip underneath the speaker and between the soft foam surrounding the screen.

    • Use the metal spudger to leverage out the speaker.

    • The speaker is attached to the shell with an adhesive. Do not be too aggressive in your removal, else the speaker will come apart.

  6. aEdK46t1kPfY1kJU
    • Using your finger, push the keyboard insert out of the front outer frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
