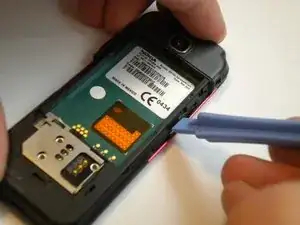

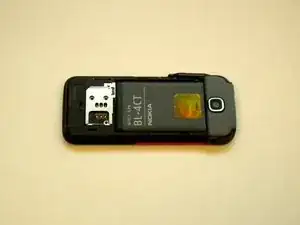

Slide the back cover down with your thumb.
-
*Note: the battery cover is not shown in this picture
-
-
-

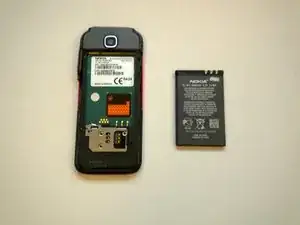

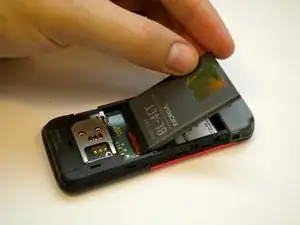

Gently lift the battery with a fingernail and remove it from its housing.
-
*Note: the battery may be replaced or repaired at this step
-
-
-
On some models, the front case is screwed down from the back. Follow steps 5 and 6 FIRST to remove the camera cover and two T6 screws, before removing the faceplate.
-

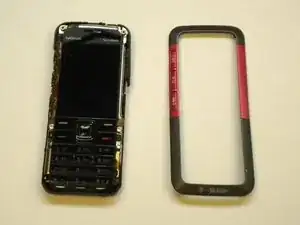

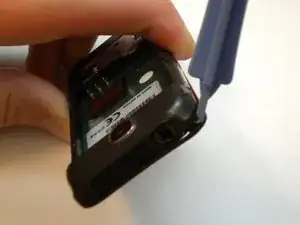

Use the Spudger to gently pry up the edges of the front face plate
-
At the center of the faceplate edge below the music keys there is a small latch on each side.
-
-
-

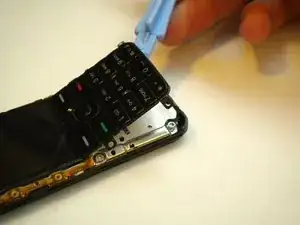

Lift up the keypad from the bottom with either the spudger or your finger.
-

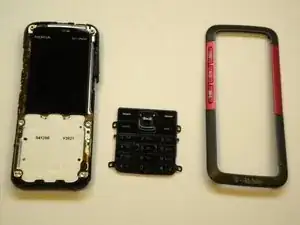

Note: at this time the keypad can be removed and replaced
-
To reassemble your device, follow these instructions in reverse order.
