Replacing the charger connector.

  1. vtsWxXU533iedNS5
    vtsWxXU533iedNS5
    GWH3oQMKYncwy2eG
    gAxE4GDQgEENJxTs
    • Press the grip on the back of the phone and slide the rear housing down towards the bottom of the phone.

  2. k2QYFKtdaopctxvu
    k2QYFKtdaopctxvu
    DkZooeBn3IWhXQ5V
    3MHfv2tBQJl3XyAP
    • Use your finger to gently pull the bottom of the battery up.

    • Lift out battery and remove.

  3. KRWbDKlomBbkcURR
    KRWbDKlomBbkcURR
    QriPkOurwLQNSftv
    qEoaW1NLDF6MnGId
    • Use your finger to lift the metal cage up.

    • Remove SIM card.

  4. qKVopKGdRafRa1Uh
    • Use your finger to close the metal cage.

  5. s6oYwgLPBUoSaKpH
    s6oYwgLPBUoSaKpH
    Fx6XYDtwy2SaaZGN
    iBPXReSUsWKn4jOq
    • Insert both of your thumbs under the two tabs labeled with the arrows and pull the top casing up then slowly rotate up and over the screen.

  6. jxgXgKUJnAOFdx5g
    jxgXgKUJnAOFdx5g
    2OKsSIvSqOCrYqYZ
    • After removing the top cover, turn the phone over so the screen is facing upwards.

  7. bGS3ESYKm1Vtdm2B
    bGS3ESYKm1Vtdm2B
    UXuaooBBnXgT3ixW
    ohhjohH2ZcxVPNre
    • Use your hands to lift the front casing off the phone by pulling above the arrows.

  8. lfv3Zs55njyOpJWL
    lfv3Zs55njyOpJWL
    pcRpE6DLc1xQlQn5
    W4yKUq2cMDrCEkdl

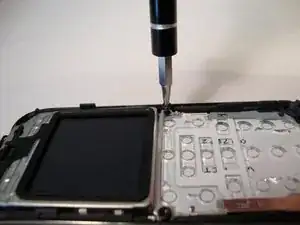

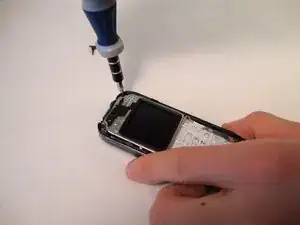

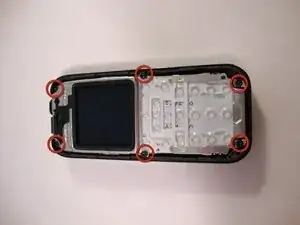

    • Remove the six screws with a T-6 Torx screwdriver.

  9. JeQCLNgEoqqDLuRT
    JeQCLNgEoqqDLuRT
    PAGMOVmKgD1bim5L
    yQT3FlQFSSkkcYVm

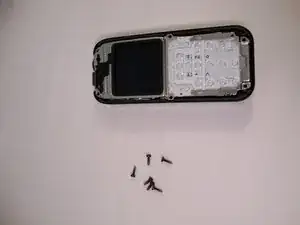

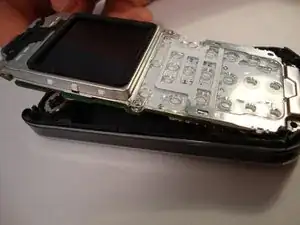

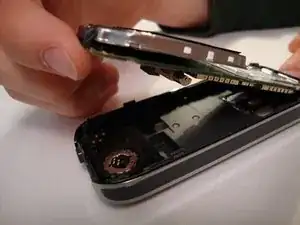

    • Lift the logic board and screen from the top.

    • Be careful of loose parts.

  10. mpPyvkCFHYDcNbFf
    mpPyvkCFHYDcNbFf
    L2OLr1mQxvuZS6GH
    5HLDuV2WalyYHftG

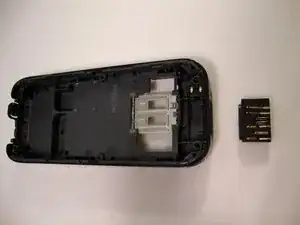

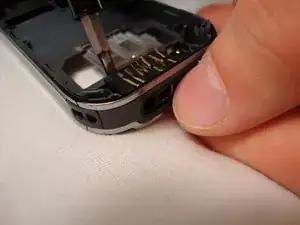

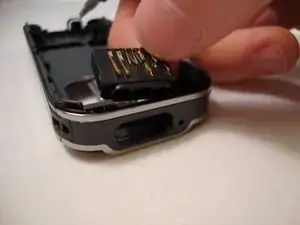

    • Insert the screwdriver below the charger connector and press down to pry out.

    • The charger connector should pop out with a slight push inwards with your thumb.

Abschluss

To reassemble your device, follow these instructions in reverse order.
