Nokia 6030 LCD Screen Replacement

Press the grip on the back of the phone and slide the rear housing down towards the bottom of the phone.

Use your finger to gently pull the bottom of the battery up.

Lift out battery and remove.

Use your finger to lift the metal cage up.

Remove SIM card.

Use your finger to close the metal cage.

Insert both of your thumbs under the two tabs labeled with the arrows and pull the top casing up then slowly rotate up and over the screen.

After removing the top cover, turn the phone over so the screen is facing upwards.

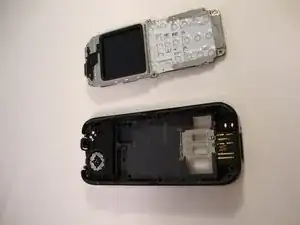

Use your hands to lift the front casing off the phone by pulling above the arrows.

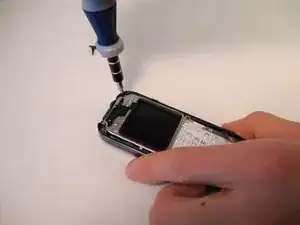

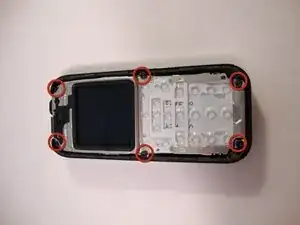

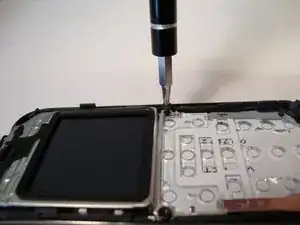

Remove the six screws with a T-6 Torx screwdriver.

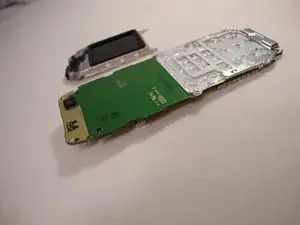

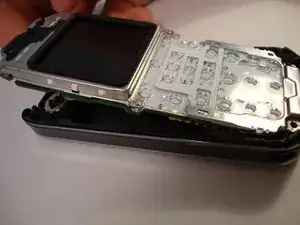

Gently lift the top of the screen up.

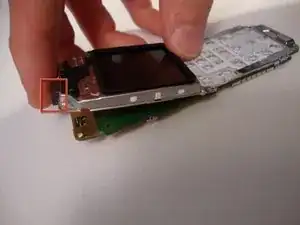

Gently pull up on the grey plastic tab.
