Nokia 6085h Speaker Replacement

Flip over the phone so that the back is facing up.

Pressing your thumb against the back cover, slide the cover off of the phone.

Remove the phone's battery.

With the phone closed, run a plastic opening tool along the seam of the top half of the phone.

Make sure to disconnect each of the five clips before proceeding to the next step.

Remove the four 3.2 mm screws from the front panel using a T6 Torx screwdriver.

Starting in the lower right corner, slowly begin to lift the tape that is holding down the front LCD and cables.

Lift the tape from the board.

Using a plastic opening tool, lift the ribbon cable connection below the front LCD.

Using a plastic opening tool, slowly pry the LCD display from the bottom, releasing it from the glue that is holding it to the board.

Locate the ribbon cable connection in the upper right hand corner of the board.

Using a plastic opening tool, lift off the cable from the board.

Using a plastic opening tool, slowly work the board off the mounts holding it to the frame.

Flip the board over to reveal the main display.

Locate the ribbon cable for the main display on the bottom of the board.

Slowly lift off the ribbon connector from its housing using a plastic opening tool.

Slowly wedge the plastic opening tool under the bottom of the main display.

Separate the display from the glue lifting it off the board.

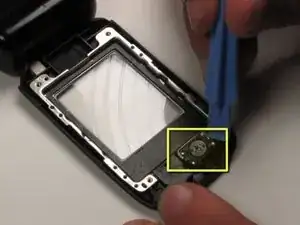

Using a case opening tool, gently pry the speaker in the bottom corner from the glue from right to left until it pops out.
