This guide is to help assist you in replacing the inside display screen of the Nokia 6102i. This is a well described 6 step process of how to complete the replacement.

  1. eCXxP63gB4cQMmgX
    eCXxP63gB4cQMmgX
    ysBhhO1yZSwnKmJX
    • This step does not require much force.

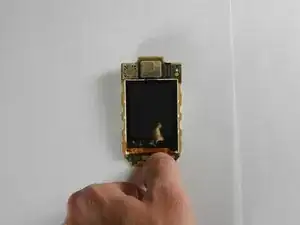

    • With the screen facing up, connect the display connector to the smaller of the open connectors on the motherboard.

  2. NYRW1PNrUdF5Jcn5
    NYRW1PNrUdF5Jcn5
    LeRY64RMH5UEyNE1

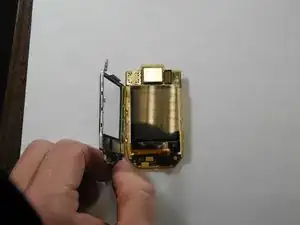

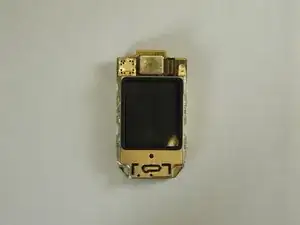

    • Place the metal case over the top of the screen so that it snaps into place.

  3. HRBhdyCAThmpCKfE
    HRBhdyCAThmpCKfE
    V543mZfMVwXMNPiq
    1rBpWC2QplgMjNff

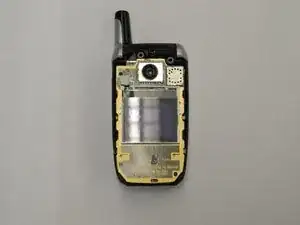

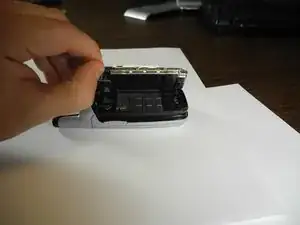

    • Insert the circuitboard into the back of the phone, with the inside screen facing down.

    • Lightly press down on the left hand corner so the circuitboard attaches to the phone.

  4. iCgQMRiesjO11WKH
    iCgQMRiesjO11WKH
    MDS5NtylD4GYoR2N
    G6xRdFHCRHUOoIYH

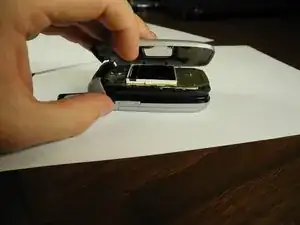

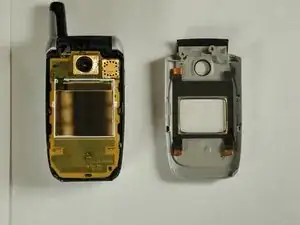

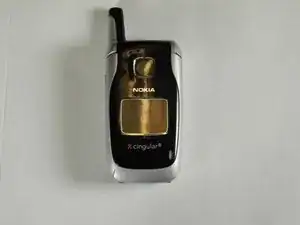

    • Snap the top cover into place so that the outside screen is visible. Press around the perimeter to secure the case.

  5. OgNmgfd6bOQIQoWk
    OgNmgfd6bOQIQoWk
    HIg4VGyaNI6VoSsT

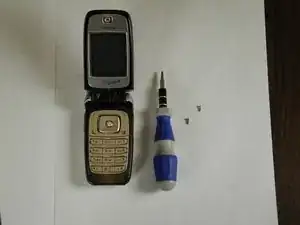

    • Open the phone and insert the screws tightly.

  6. 2RT3D3lDurSuf44E
    2RT3D3lDurSuf44E
    IOVUbKvHhhtUQvty

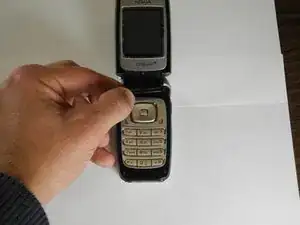

    • This step does not require much force.

    • Snap on the black piece over the exposed screws.
